Procedure of Program Conversion

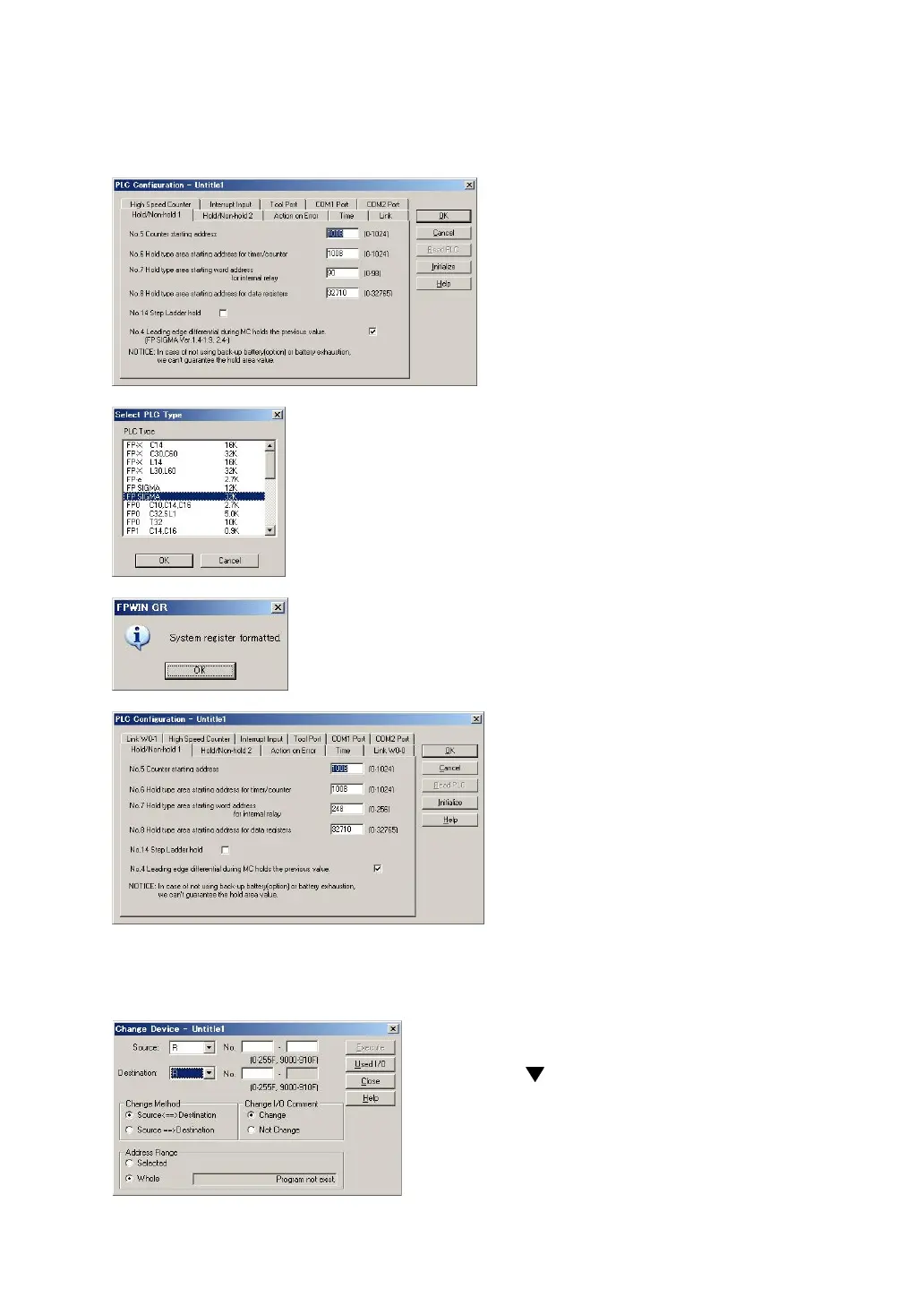

1. Retrieve a program to be converted with FPWIN GR.
2. Select “Option” → “PLC
Configuration” in the menubar.
Note down the setting value for the
system registers.
3. Select “Tool” → “Change PLC Type”.
Select “FPSIGMA 32K” and click “OK” button.
4. A message “System register formatted.” is indicated.
Click “OK” button.
5. Select “Option” → “PLC Configuration”.
Input the values noted down in procedure
2.
Note) When the battery is not used, the
system register No. 7 “Hold type area
starting word address for internal relay”
should be set to “248” that is the default
value for the FPΣ 32k type.
6. For the program using the hold-type area in the internal relay (R900 to R97F and WR90 to WR97), the
device should be changed to the hold-type area for the FPΣ 32k type (R2480 to R255F and WR248 to
WR255).
Select “Edit” → “Change Device”.
Click the
buttons of “Source” and “Destination” to
select “R” and “WR” from the pulldown menu, and
change the values.
