2-11

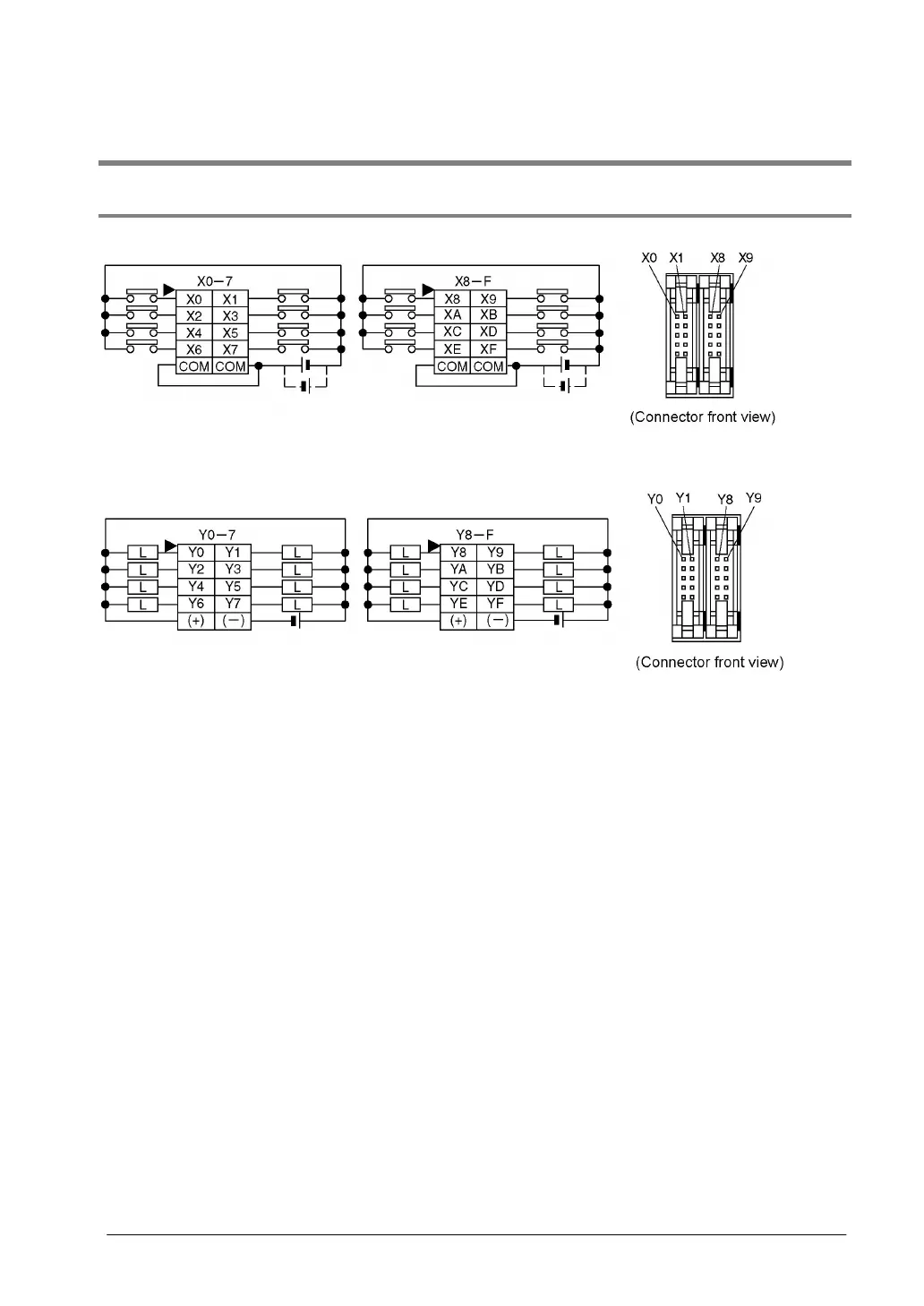

2.3 Terminal Layout Diagram
2.3.1 Control Unit (for C32)
Input
Note) The four COM terminals of input circuit are connected internally.
Output
Note) The two (+) terminals of output circuit are connected internally. The two () terminals of output
circuit are connected internally.
