6.4.2 Types of Pulse Output Method and Operation Modes

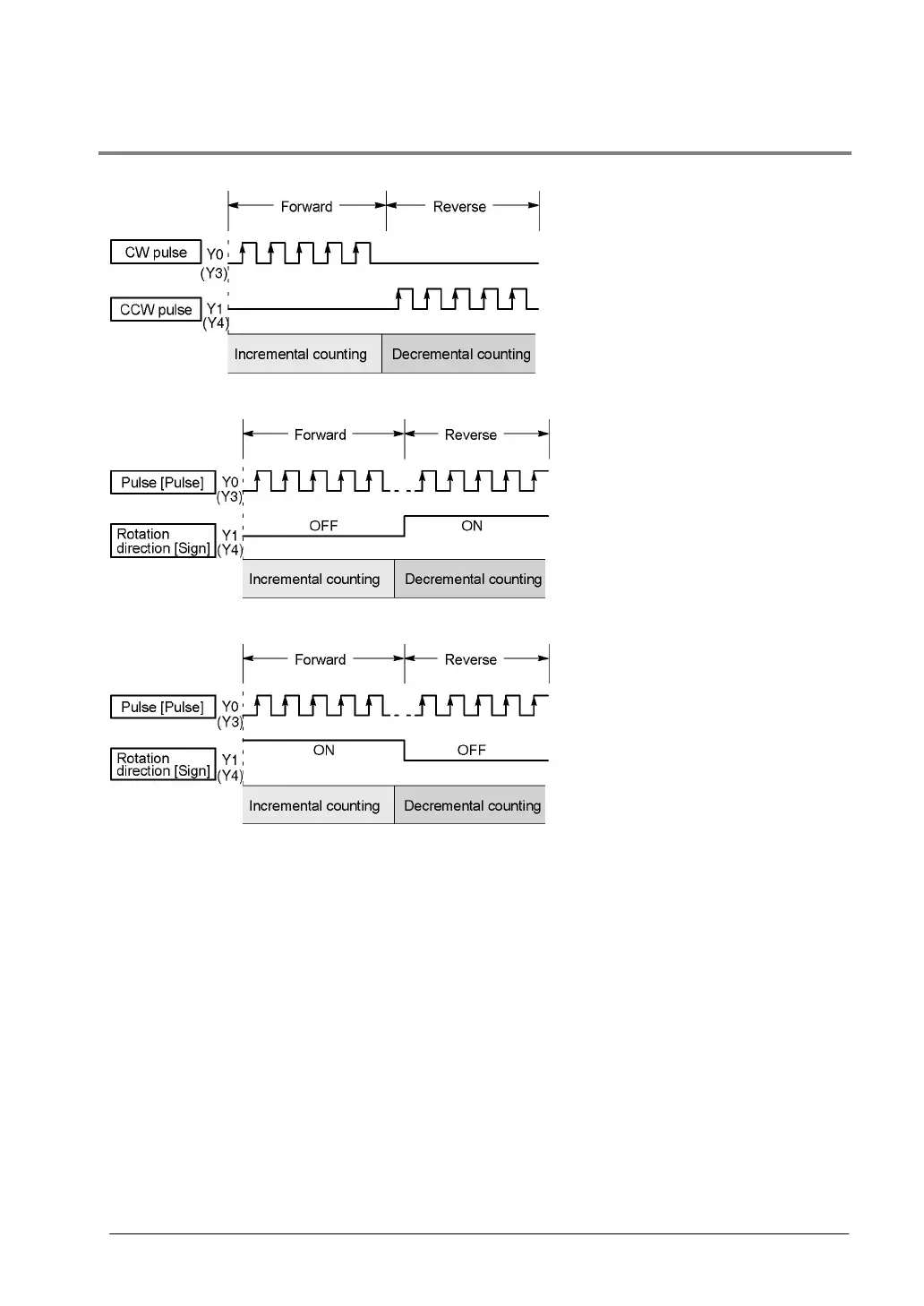

Clockwise/counter-clockwise output method
Control is carried out using two
pulses: a forward rotation pulse and a
reverse rotation pulse.
Pulse/direction output method (forward: OFF/reverse: ON)
Control is carried out using one pulse
output to specify the speed and
another to specify the direction of
rotation with on/off signals. In this
mode, forward rotation is carried out
when the rotation direction signal is
OFF.
Pulse/direction output method (forward: ON/reverse: OFF)
Control is carried out using one pulse
output to specify the speed and
another to specify the direction of
rotation with on/off signals. In this
mode, forward rotation is carried out
when the rotation direction signals is
ON.
