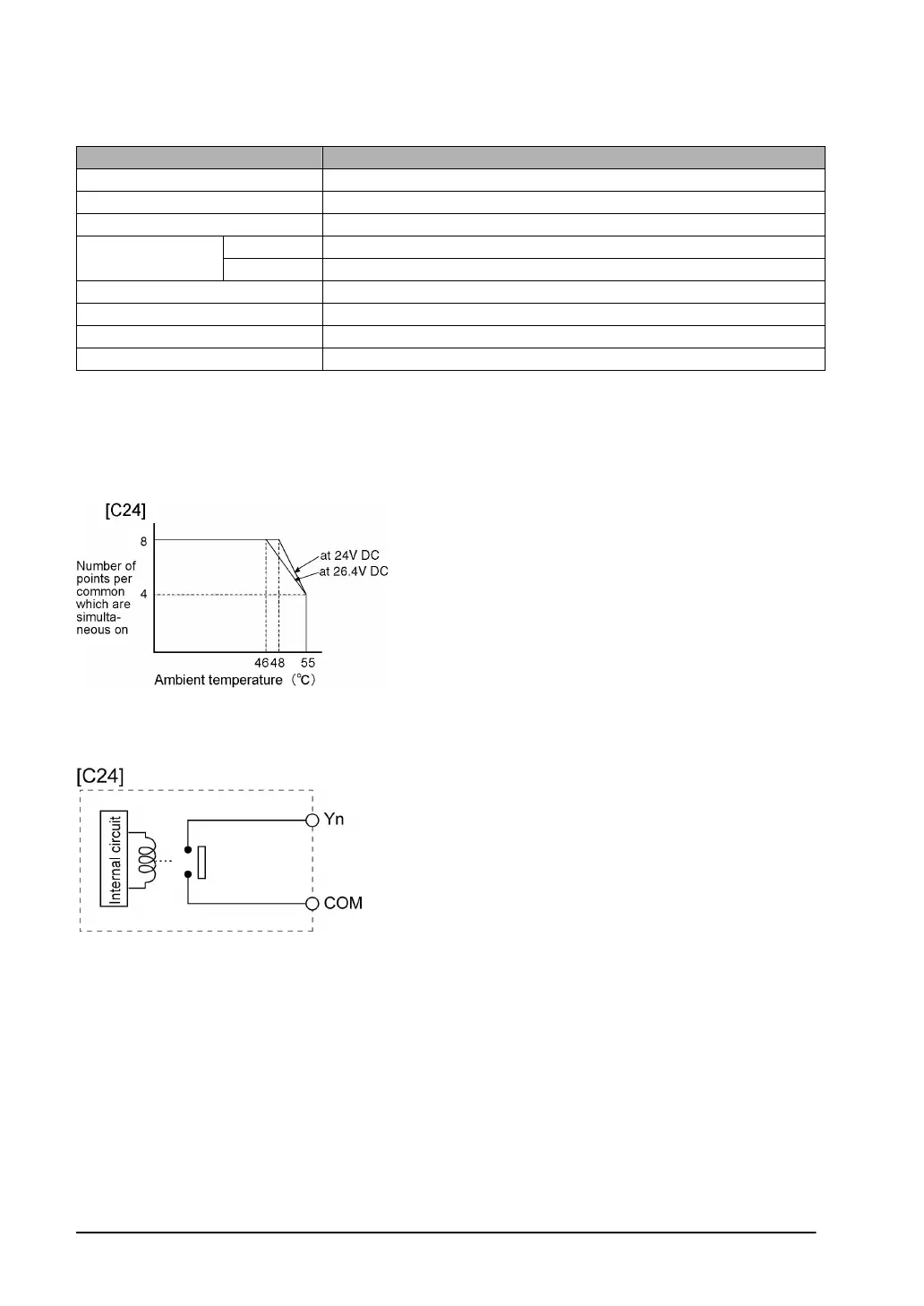

Relay output specifications (C24)
Item Description
Output type 1a output
Rated control capacity 2A 250V AC, 2A 30V DC (4.5A per common or less)
Note1)
Output points per common 8 points/common
off→on Approx. 10ms
Response time
on→off Approx. 8ms
Mechanical lifetime Min. 20,000,000 operations
Electrical lifetime Min. 100,000 operations
Surge absorber None
Operating mode indicator LED display
Note1) Resistance load
Limitations on number of simultaneous output on points
Keep the number of output points per common which are simultaneously on within the following range as
determined by the ambient temperature.
Circuit diagram
