Incremental Position Control Operation: Minus Direction
When X9 turns on, the pulse is output from CCW output Y0 of the specified channel CH0.
Program

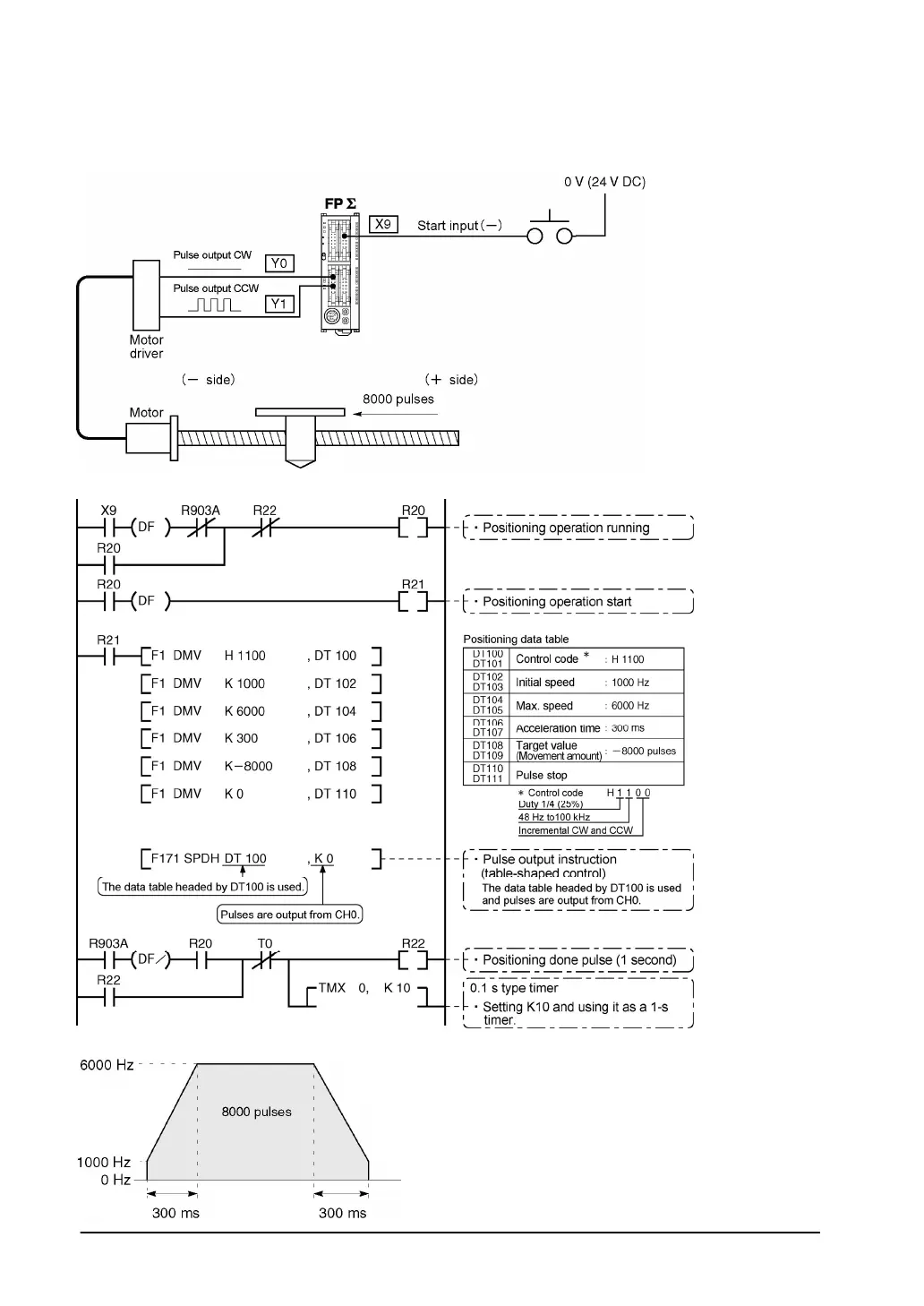

Pulse output diagram
