6-37

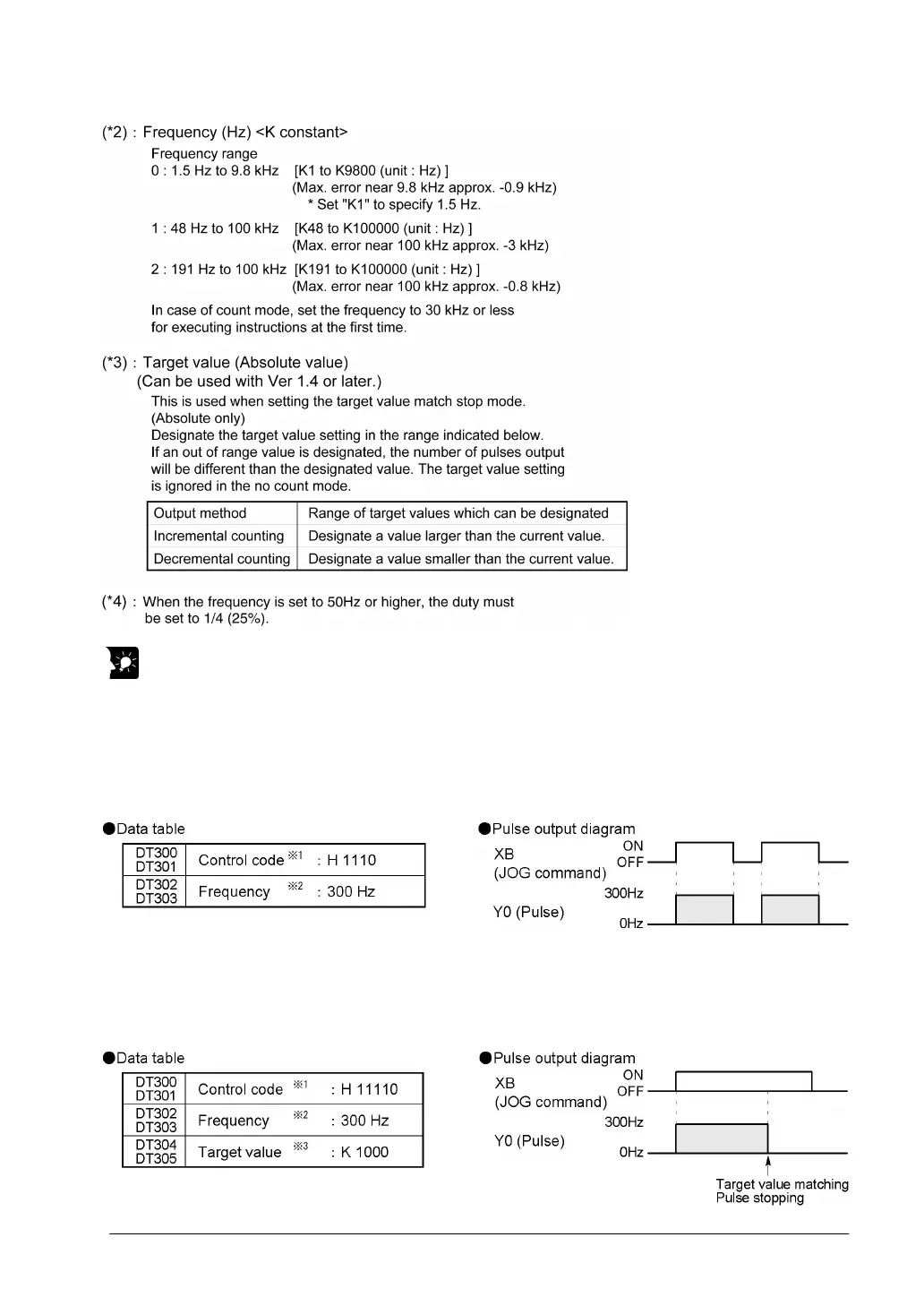

Key Point:
The FPΣ supports two operation modes for JOG operation, one in which no target value is specified, and
one in which feed stops when the target value is reached.
Normal jogging operation feed (no target value specified)
Pulses are output in accordance with the conditions set in the data table, as long as execution condition
is on.
Output stops when target value is reached (FPΣ Ver 1.4 or later)
With FPΣ Ver 1.4 or later, a target value at which pulse output stops can be specified for jogging
operation. As shown below, this mode is selected in the control code, and the target value (an absolute
value) is specified in the data table.
To Next Page
