6-39

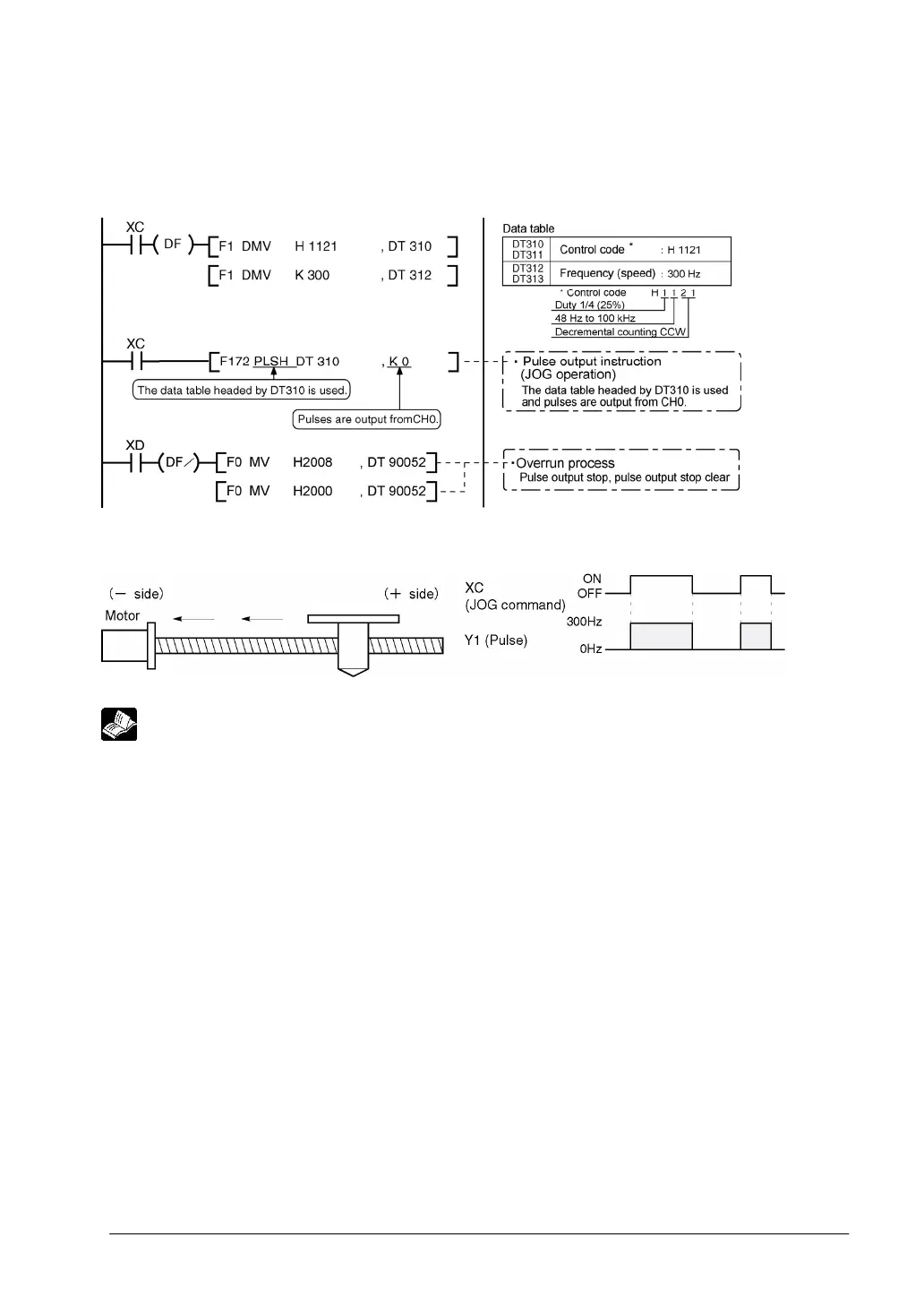

JOG operation : Minus direction
While XC is in the ON state, a pulse is output from the CCW output Y1 of the specified channel CH0.
Program
Pulse output diagram
Reference:
The pulse output control instruction (F0) is used for the pulse output stop.
<6.4.4 Pulse output control instruction (F0)>
