6-45
Sample program for interpolation control

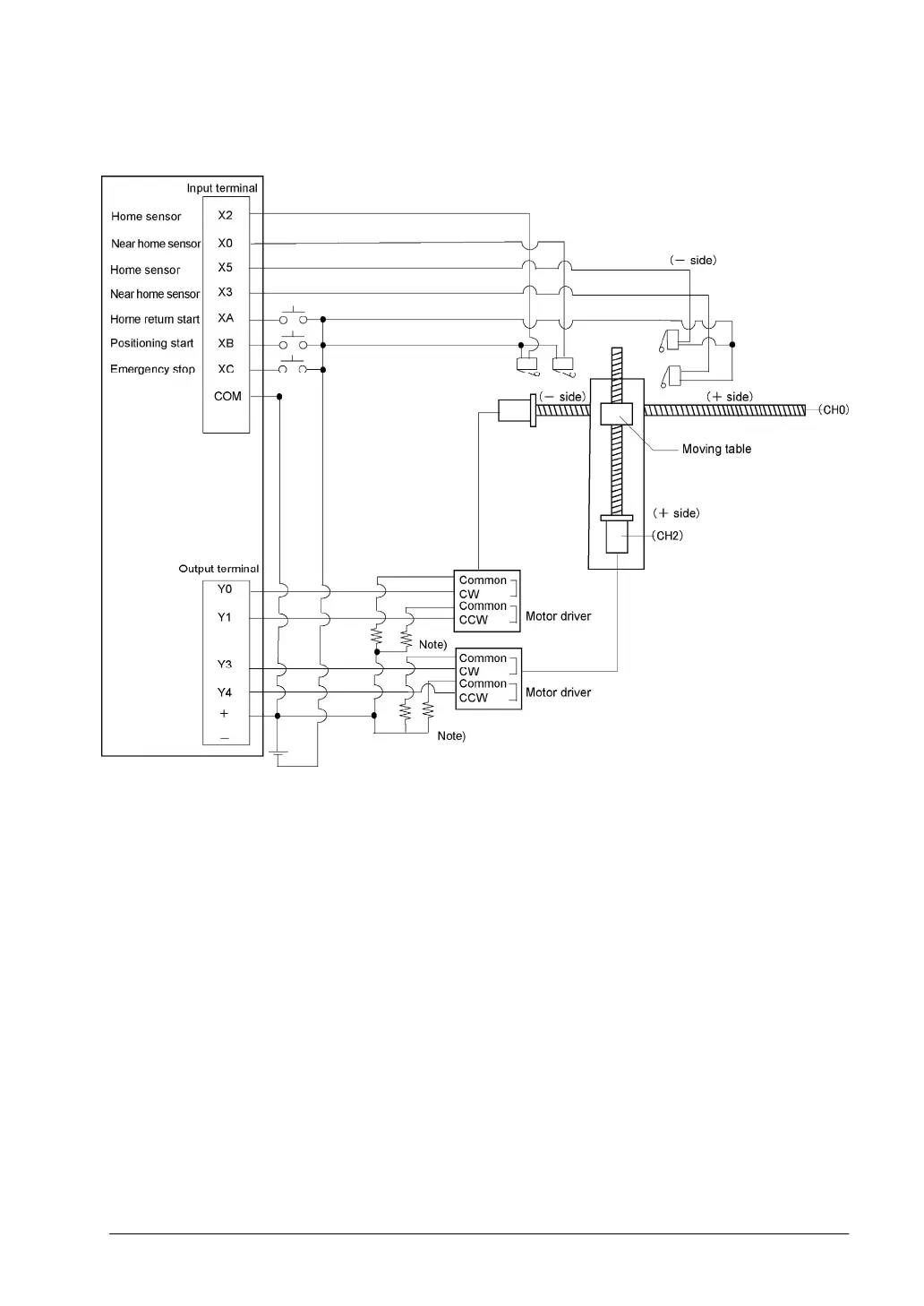

Wiring diagram
Note) If the input of the stepping motor is 5V photocoupler type, connect the resistor of 2kΩ 1/4W.
