6-47

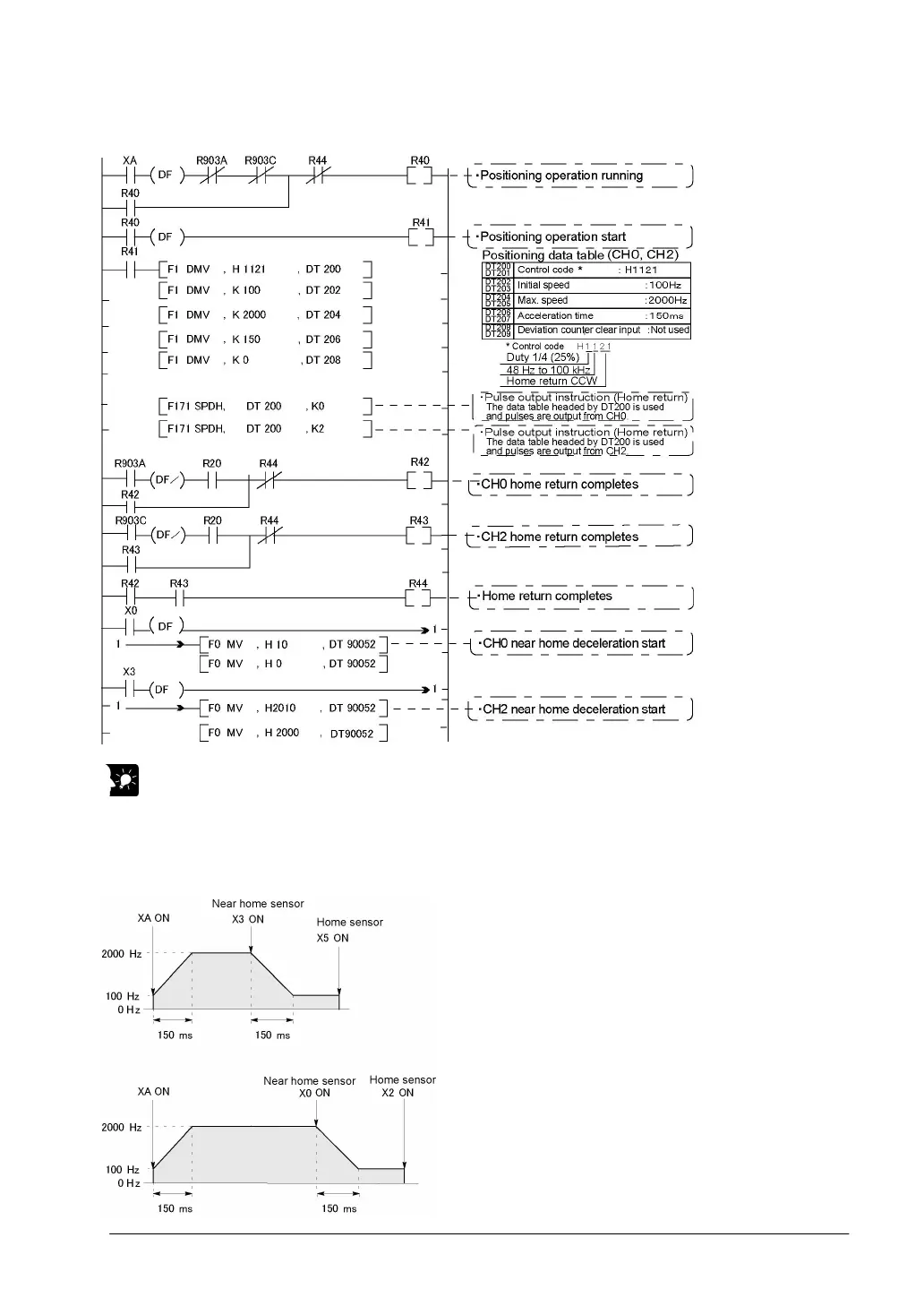

Program
Key Point:
As there is not interpolation function for the home return, the home return should be executed for each
channel. After the home return for both channels is completed, the positioning operation running
program (R40) turns off.
Pulse output diagram
