12-25
(A: Available, N/A: Not available)
Register
No.
Name Descriptions
Read
-ing
Writ-
ing

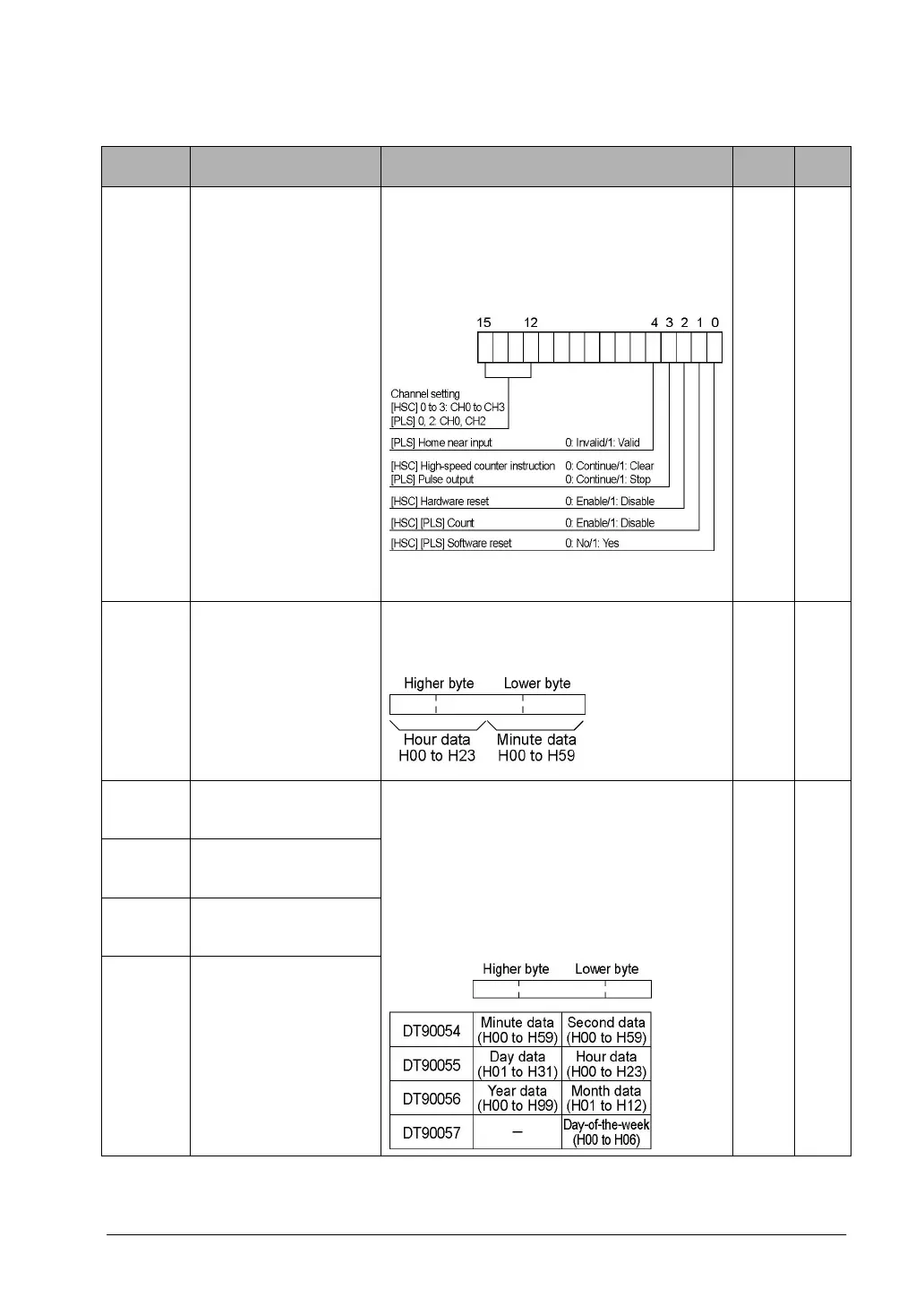

DT90052
High-speed counter
and pulse output
control flag
A value can be written with F0 (MV) instruction
to reset the high-speed counter, disable
counting, continue or clear high-speed counter
instruction.
Control code setting
Note) Refer to the “Count for reset input” in
“Count 6.3.2 “Input Mode and Count”
N/A A
DT90053
Clock/calendar
monitor (hour/minute)
Hour and minute data of the clock/calendar
are stored here. This data is read-only data. It
cannot be overwritten.
AN/A
DT90054
Clock/calendar setting
(minute/second)
DT90055
Clock/calendar setting
(day/hour)
DT90056
Clock/calendar setting
(year/month)
DT90057
Clock/calendar setting
(day-of-the-week)
The year, month, day, hour, minute, second
and day-of-the-week data for the calender
timer is stored. The built-in calendar timer will
operate correctly through the year 2099 and
supports leap years. The calendar timer can
be set by writing a value using a programming
tool software or a program that uses the F0
(MV) instruction.(see example for DT90058)
AA
