12-45

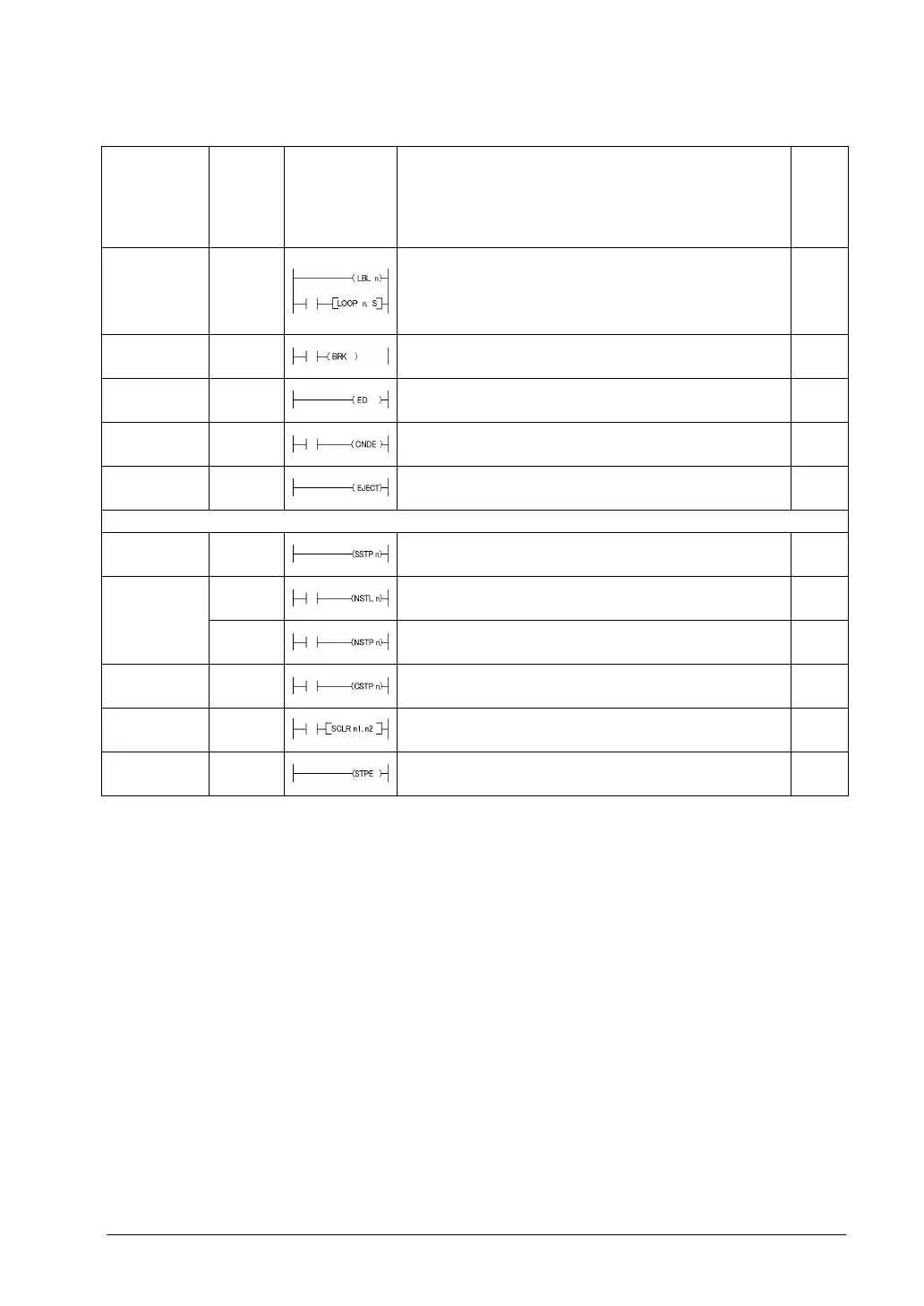

Name Boolean Symbol Description Steps
Loop
Label
LOOP
LBL
The program jumps to the label instruction and continues
from there (the number of jumps is set in “S”).
4 (5)
(*1)
1
Break BRK Stops program execution when the predetermined trigger
turns on in the TEST/RUN mode only.
1
End ED The operation of program is ended. Indicates the end of a
main program.
1
Conditional
end
CNDE The operation of program is ended when the trigger turns
on.
1
Eject EJECT Adds page break fo ruse when printing. 1
Step ladder instructions
Start step SSTP The start of program “n” for process control 3
NSTL Start the specified process “n” and clear the process
currently started. (Scan execution type)
3Next step
NSTP
Start the specified process “n” and clear the process
currently started. (Pulse execution type)
3
Clear step CSTP Resets the specified process “n”. 3
Clear multi-
ple steps
SCLR Resets multiple processes specified by “n1” and “n2”. 5
Step end STPE End of step ladder area 1
