Installation space

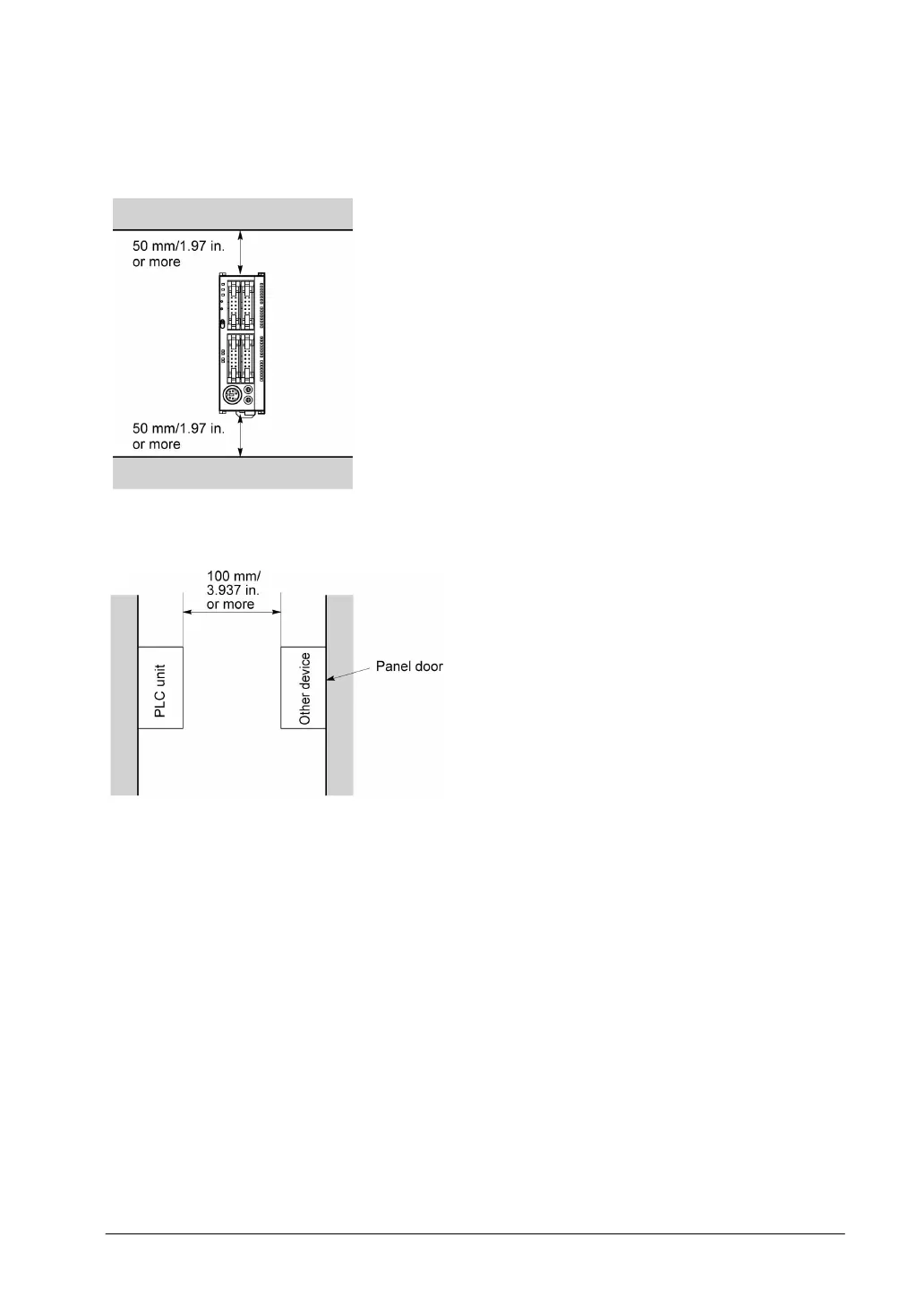

• Leave at least 50mm/1.97 in. of space between the wiring ducts of the unit and other devices to allow
heat radiation and unit replacement.
• Maintain at least 100mm/3.937 in. of space between devices to avoid adverse affects from noise and
heat when installing a device or panel door to the front of the PLC unit.
• Leave at least 100mm/3.937 in. of space opean from the front surface of the control unit in order to
allow room for programming tool connections and wiring.
