3. Mounting to theControl Panel

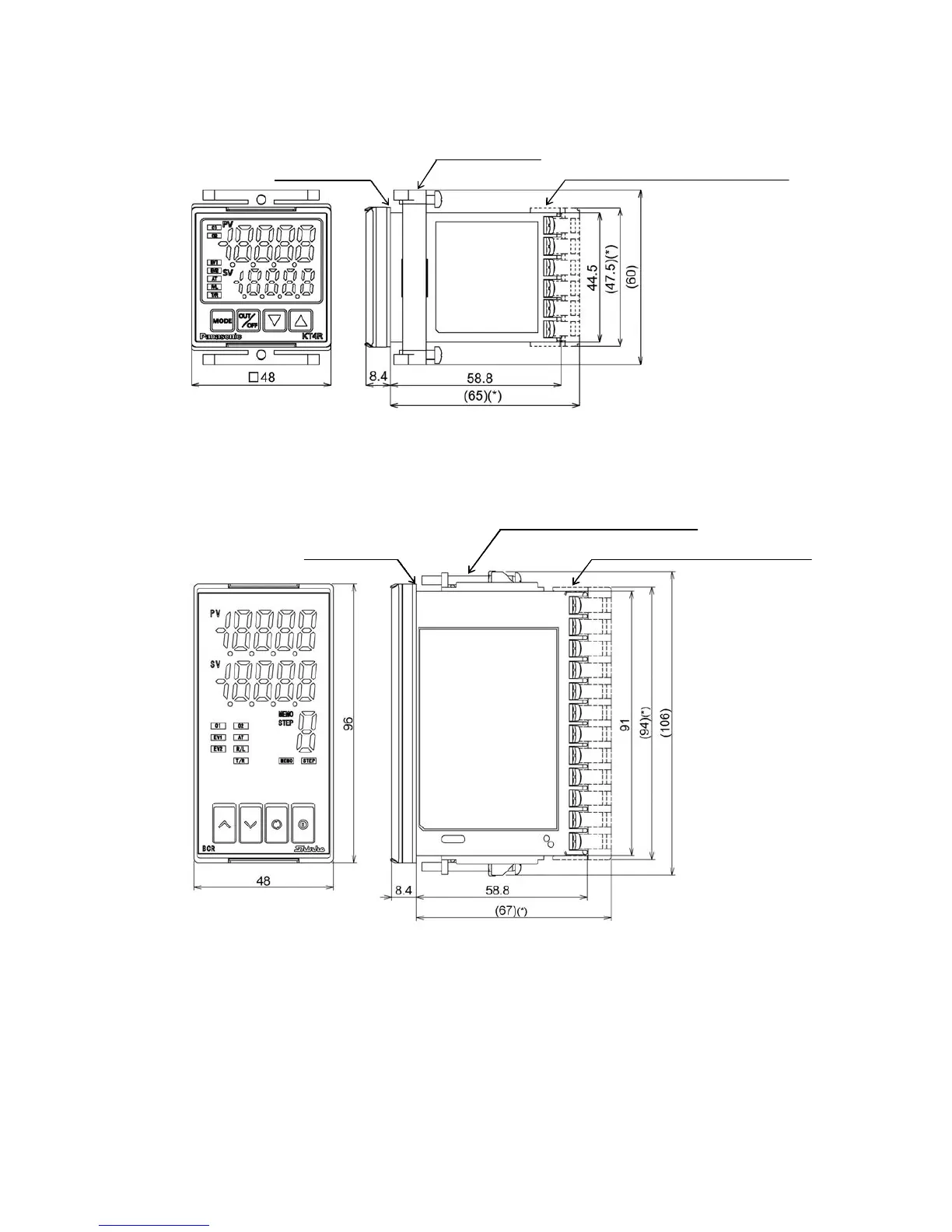

3.1 External Dimensions (Scale: mm)
KT4R
(Fig. 3.1-1)
KT8R
(Fig. 3.1-2)
(*) When the terminal cover is used.
Rubber gasket
Mounting frame
Terminal cover (sold separately)
Rubber gasket
Terminal cover (sold separately)
(*) When the terminal cover is used.
Screw type mounting bracket
Terminal cover (sold separately)
Screw type mounting bracket
