Terminal Description
PWR 100 to 240 V AC or 24 V AC/DC
For a 24 V AC/DC power source, do not confuse polarity when using
direct current (DC).
24 V AC/DC: Only for the KT4R model
EV1 Event output EV1
EV2 Event output EV2
O1 Control output OUT1
RTD RTD input
TC Thermocouple input
DC Direct current, DC voltage inputs
For DC voltage input, (+) side input terminal number of 0 to 5 V DC, 1 to
5 V DC, 0 to 10 V DC differs from that of 0 to 1 V DC.
Model Number Terminal Number
KT4R
9
: + side of 0 to 5 V DC, 1 to 5 V DC, 0 to 10 V DC
10
: + side of 0 to 1 V DC
KT8R, KT9R
21
: + side of 0 to 5 V DC, 1 to 5 V DC, 0 to 10 V DC
22
: + side of 0 to 1 V DC
RS-485 Serial communication RS-485
Serial communication can be specified only for the KT4R model.

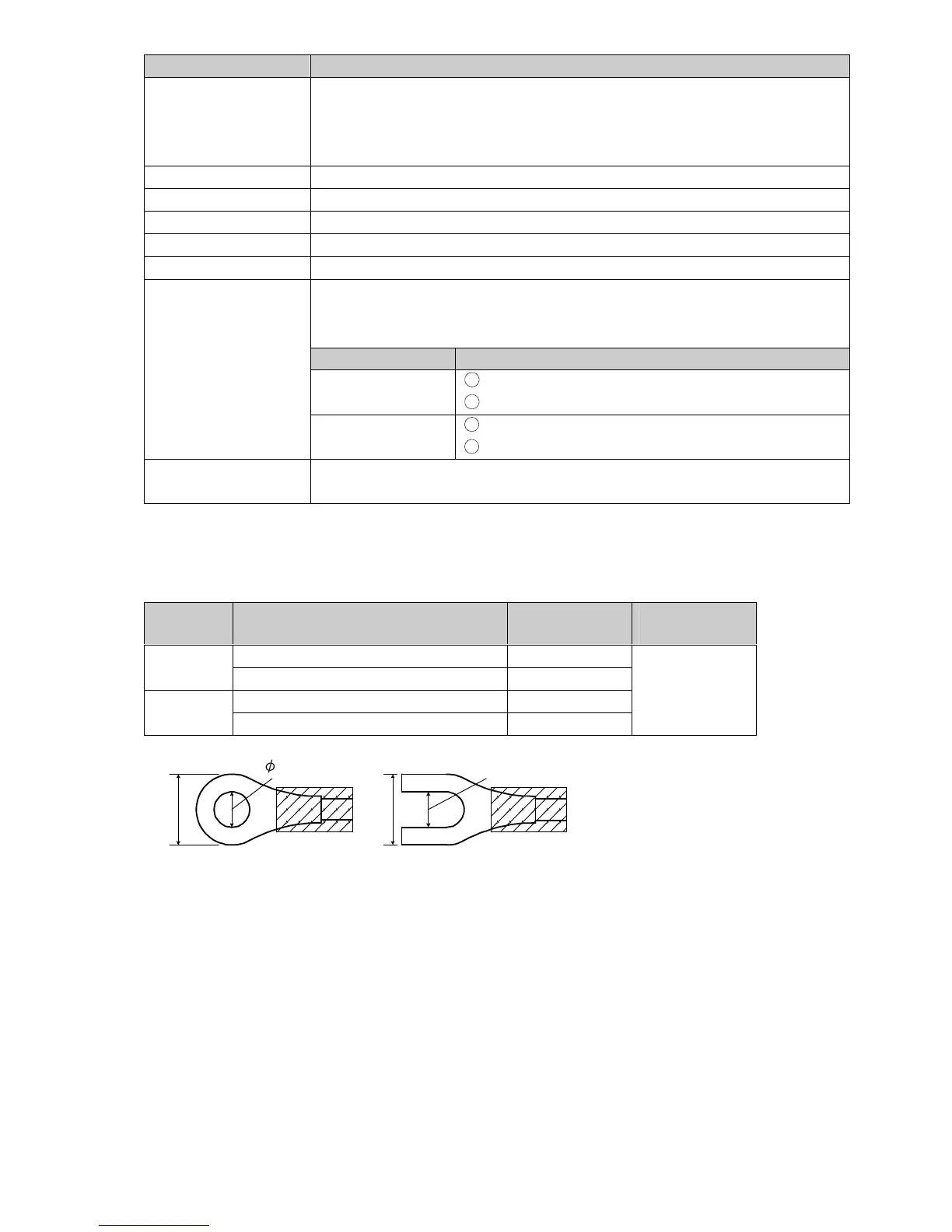

4.2 Lead Wire Solderless Terminal
Use a solderless terminal with an insulation sleeve in which an M3 screw fits as shown below.
The torque should be 0.63 N•m.
Solderless
Terminal
Manufacturer Model
Tightening
Torque
Nichifu Terminal Industries Co., Ltd. TMEV1.25Y-3
Y-type
Japan Solderless Terminal MFGCo., Ltd. VD1.25-B3A
Nichifu Terminal Industries Co., Ltd. TMEV1.25-3
Ring-type
Japan Solderless Terminal MFGCo., Ltd. V1.25-3
0.63 N•m
(Fig. 4.2-1)
