13.5 Main Setting Mode

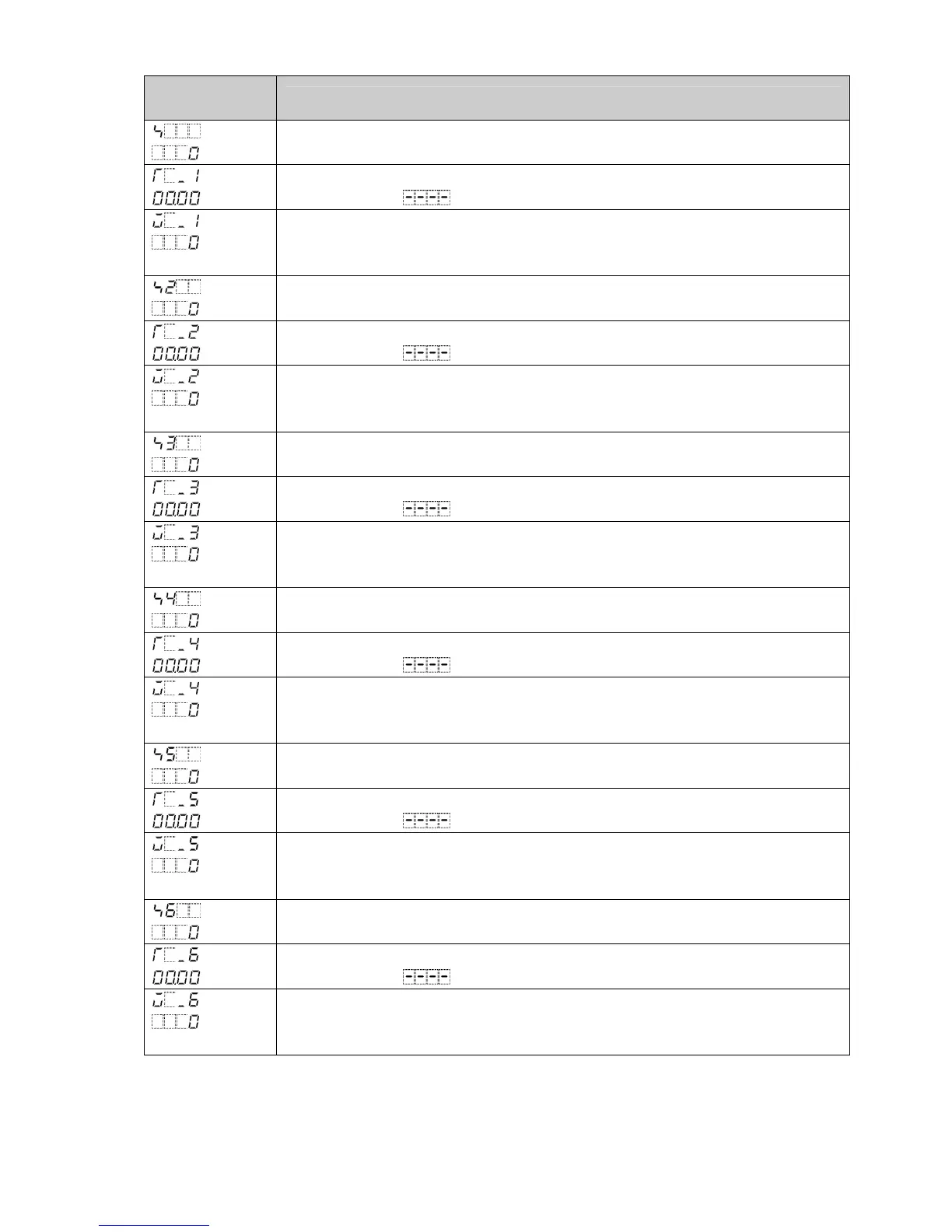

The PV Display indicates setting characters, and the SV Display indicates factory default value.
Characters,
Factory Default
Setting Item, Setting Range
SV1
Setting range: Scaling low limit to Scaling high limit (*1)
Step 1 time
Setting range: , or 00:00 to 99:59
Step 1 wait value
Setting range: 0 to Converted value of 20% of the input span
DC voltage, current inputs: 0 to Converted value of 20% of scaling span (*1)
SV2
Setting range: Scaling low limit to Scaling high limit (*1)
Step 2 time
Setting range: , or 00:00 to 99:59
Step 2 wait value
Setting range: 0 to Converted value of 20% of the input span
DC voltage, current inputs: 0 to Converted value of 20% of scaling span (*1)
SV3
Setting range: Scaling low limit to Scaling high limit (*1)
Step 3 time
Setting range: , or 00:00 to 99:59
Step 3 wait value
Setting range: 0 to Converted value of 20% of the input span
DC voltage, current inputs: 0 to Converted value of 20% of scaling span (*1)
SV4
Setting range: Scaling low limit to Scaling high limit (*1)
Step 4 time
Setting range: , or 00:00 to 99:59
Step 4 wait value
Setting range: 0 to Converted value of 20% of the input span
DC voltage, current inputs: 0 to Converted value of 20% of scaling span (*1)
Step 5 SV
Setting range: Scaling low limit to Scaling high limit (*1)
Step 5 time
Setting range: , or 00:00 to 99:59
Step 5 wait value
Setting range: 0 to Converted value of 20% of the input span
DC voltage, current inputs: 0 to Converted value of 20% of scaling span (*1)
Step 6 SV
Setting range: Scaling low limit to Scaling high limit (*1)
Step 6 time
Setting range: , or 00:00 to 99:59
Step 6 wait value
Setting range: 0 to Converted value of 20% of the input span
DC voltage, current inputs: 0 to Converted value of 20% of scaling span (*1)
(*1) The placement of the decimal point follows the selection.
