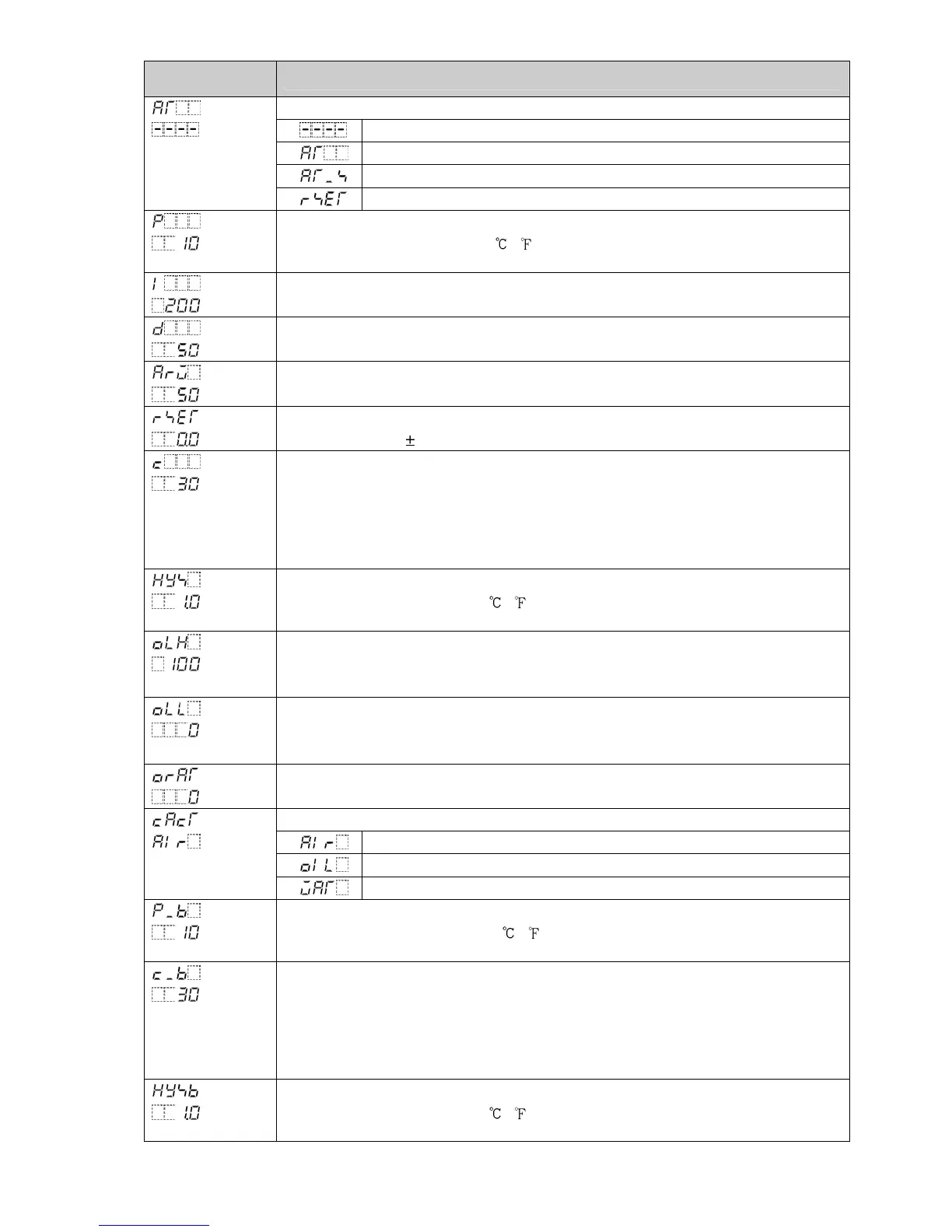

13.6 Sub Setting Mode
The PV Display indicates setting characters, and the SV Display indicates factory default value.
Characters,
Factory Default
Setting Item, Setting Range
AT/Auto-reset Perform/Cancel
AT/AT on startup/Auto-reset Cancel
AT Perform
AT on startup Perform
Auto-reset Perform
OUT1 proportional band
Setting range: 0 to Input span ( )
DC voltage, current inputs: 0.0 to 1000.0%
Integral time
Setting range: 0 to 3600 seconds
Derivative time
Setting range: 0 to 1800 seconds
ARW
Setting range: 0 to 100%
Manual reset
Setting range: Proportional band value
Factory default:
• Relay contact output:
30 sec.
• Non-contact voltage
output: 3 sec.
OUT1 proportional cycle
Setting range: 0.5, or 1 to 120 seconds
OUT1 ON/OFF hysteresis
Setting range: 0.1 to 1000.0 ( )
DC voltage, current inputs: 1 to 10000 (*1)
OUT1 high limit
Setting range: OUT1 low limit value to 100%
(Direct current output type: OUT1 low limit value to 105%)
OUT1 low limit
Setting range: 0% to OUT1 high limit value
(Direct current output type: -5% to OUT1 high limit value)
OUT1 rate-of-change
Setting range: 0 to 100%/second
OUT2 cooling method
Air cooling (linear characteristics)
Oil cooling (1.5th power of the linear characteristics)
Water cooling (2nd power of the linear characteristics)
OUT2 proportional band
Setting range: 0 to Input span ( )
DC voltage, current inputs: 0.0 to 1000.0%
Factory default:
• Relay contact output:
30 sec.
• Non-contact voltage
output: 3 sec.
OUT2 proportional cycle
Setting range: 0.5, or 1 to 120 seconds
OUT2 ON/OFF hysteresis
Setting range: 0.1 to 1000.0 ( ),
DC voltage, current inputs: 1 to 10000 (*1)
(*1) The placement of the decimal point follows the selection.
