6.1 Example of Initial Settings
(e.g.) AKT4R111100
Initial Setting Items Example
Input type K -200.0 to 400.0
Event output EV1 allocation High limit alarm
EV1 alarm value 20.0 (Deviation setting from SV)
SV 200.0 (Fixed value control)
PID control is performed. PID constants are calculated by performing AT.

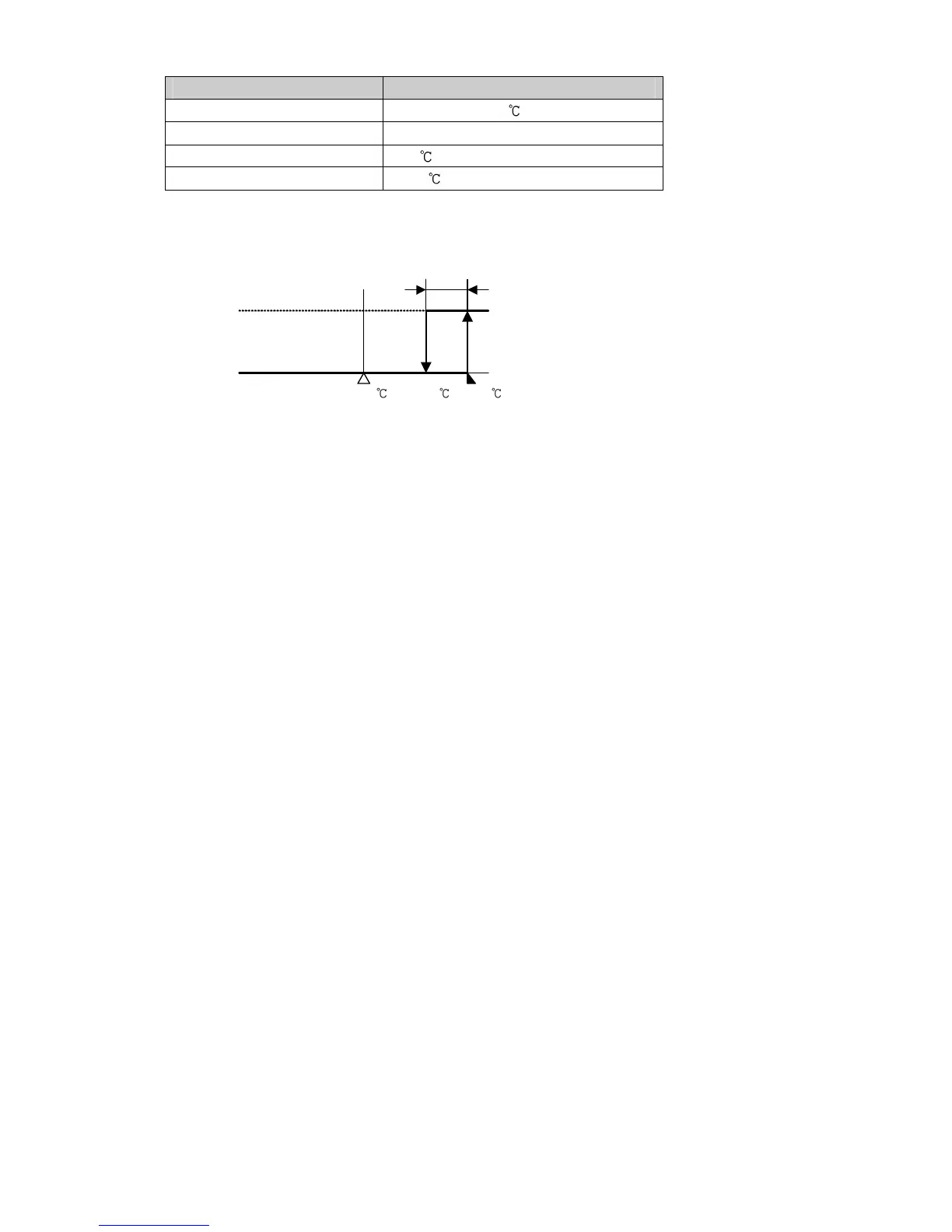

Alarm action
(Fig. 6.1-1)
OFF
ON
200.0 220.0219.0
