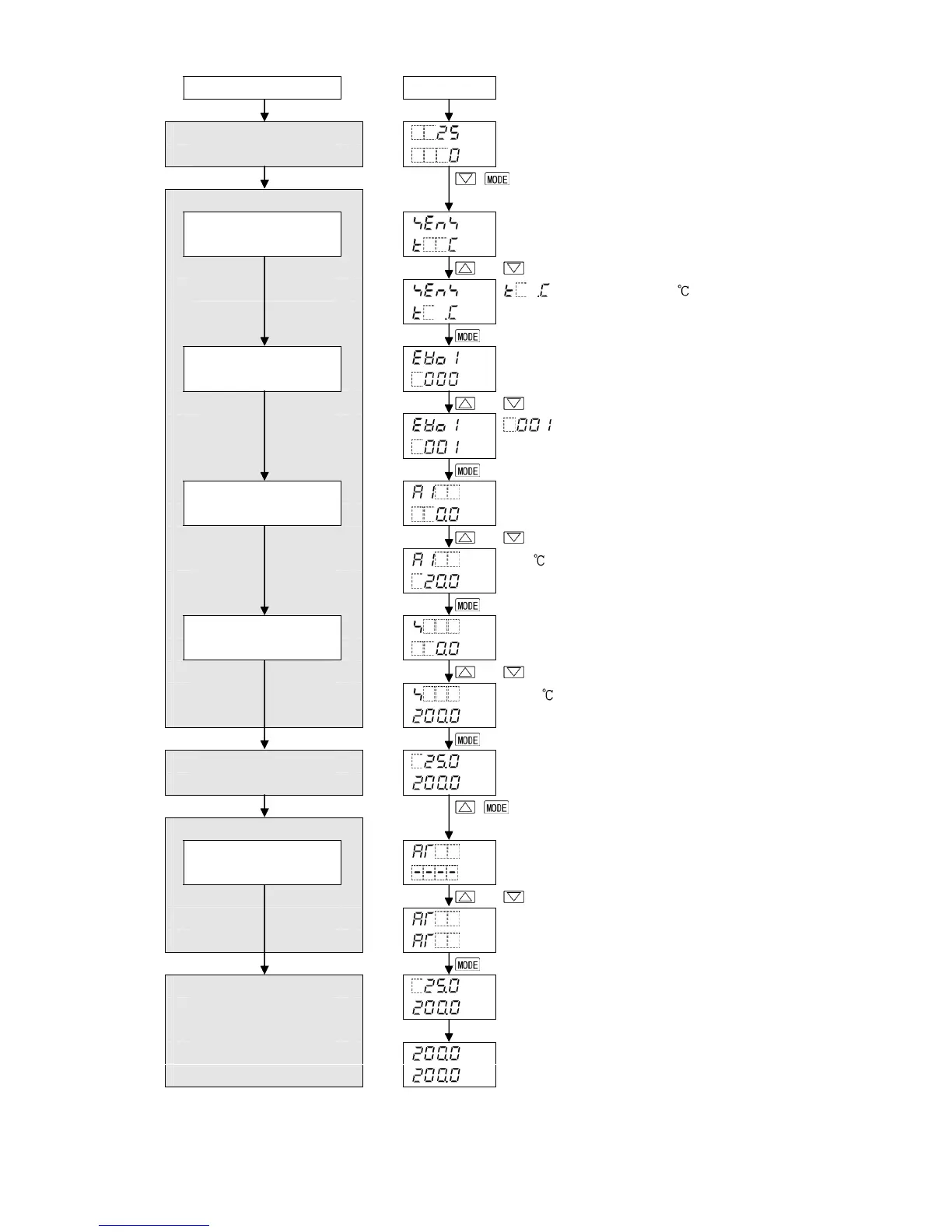

Setting Procedure Setting Detail
Power ON Power ON
RUN mode RUN mode
PV/SV Display
+ (3 sec)
Initial setting mode Initial setting mode
Input type Input type [1]
or
: K -200.0 to 400.0
(3 times)
Event output EV1 Event output EV1 allocation. [5]
allocation
or
: High limit alarm
(Twice)
EV1 alarm value EV1 alarm value [B]
or
20.0
(Many times)
SV1 SV1 [9]
or
200.0
RUN mode RUN mode
PV/SV Display (Fixed value control)
+
Sub setting mode Sub setting mode
AT/Auto-reset AT/ Auto-reset Perform/Cancel [37]
Perform/Cancel
or
Perform AT.
RUN mode The AT indicator flashes while AT is performing.
The AT indicator goes off after AT is completed.
PV/SV Display (Fixed value control)
