Panasonic KT4R - Input

4.4.3 Input

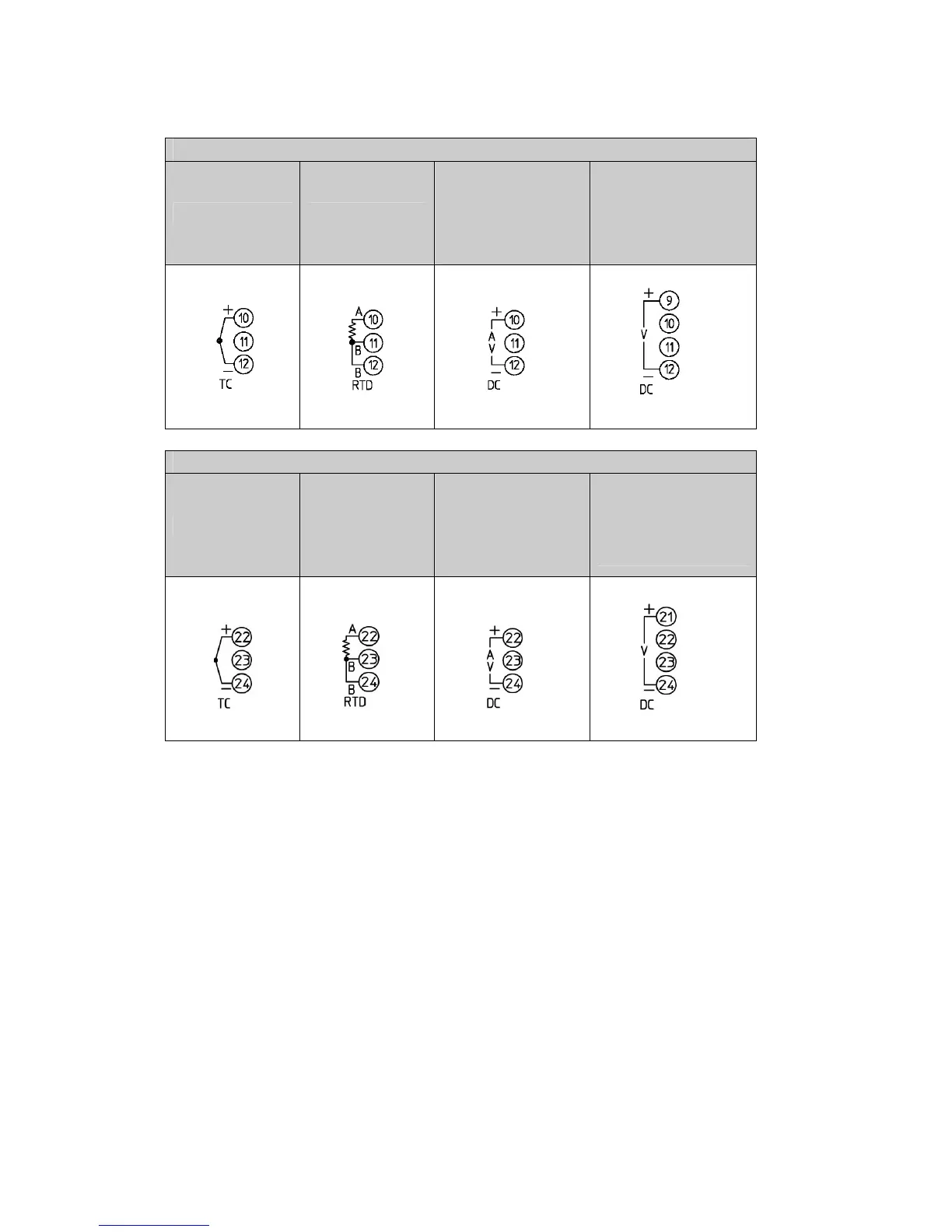

Each input wiring is shown below.
For DC voltage input, (+) side input terminal number of 0 to 5 V DC, 1 to 5 V DC, 0 to 10 V DC
differs from that of 0 to 1 V DC.
KT4R
Thermocouple RTD
Direct current
(4 to 20 mA,
0 to 20mA),
DC voltage
(0 to 1 V)
DC voltage
(0 to 5 V,
1 to 5 V,
0 to 10 V)
KT8R, KT9R
Thermocouple RTD
Direct current
(4 to 20 mA,
0 to 20mA),
DC voltage
(0 to 1 V)
DC voltage
(0 to 5 V,
1 to 5 V,
0 to 10 V)
