9.3 Control Output OFF Function
The control action and output of an instrument (or instruments) can be turned OFF without turning
OFF their power supplies using this function.
Select ‘Control output OFF function’ in [OUT/OFF key function] in Engineering mode 1.
Factory default value is Control output OFF function.

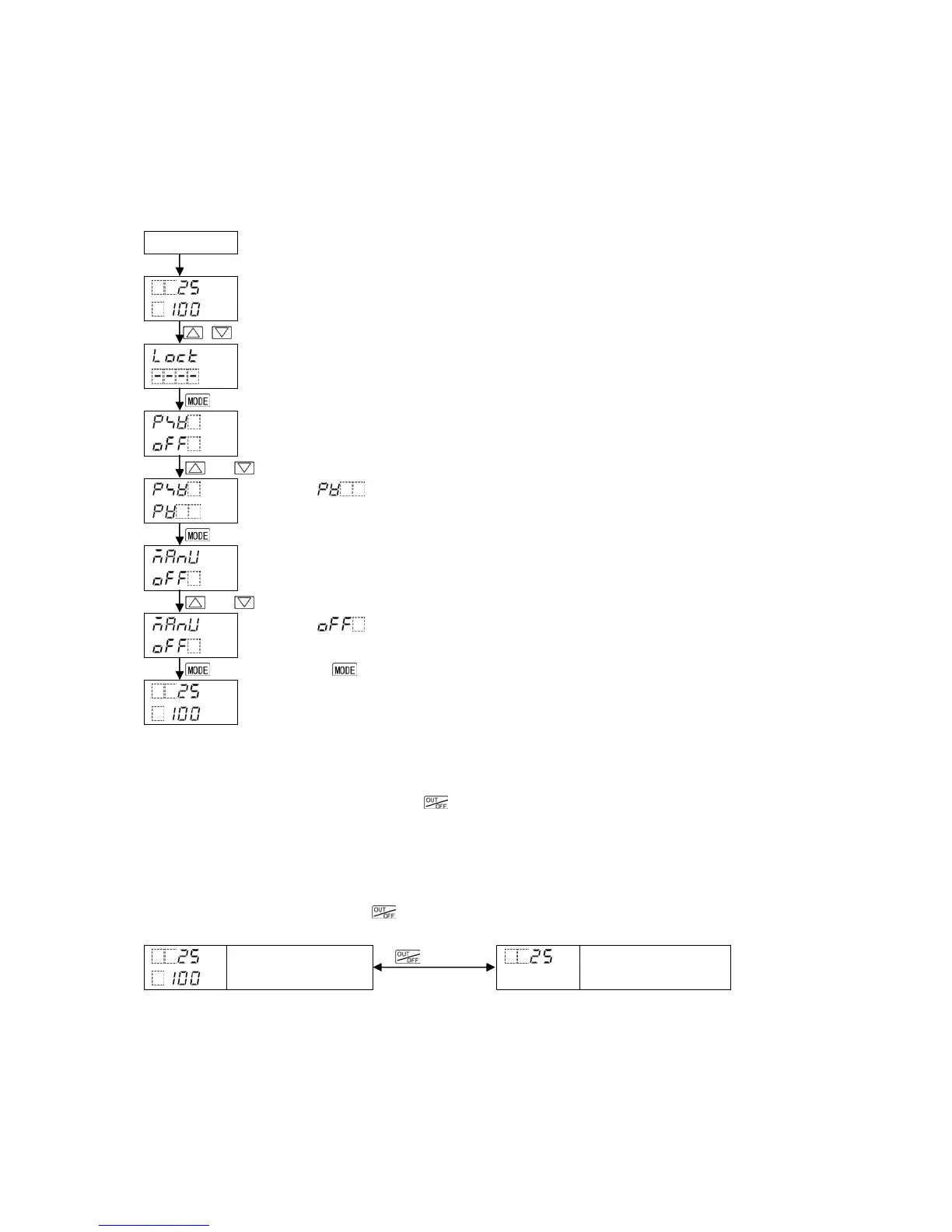

(Example) Selecting ‘Control output OFF function’, and ‘PV indication’ in [Indication when
control output OFF]
Power ON
RUN mode
PV/SV Display
+ (3 sec)
Engineering mode 1
Set value lock [62]
(Many times)
Indication when control output OFF [82]
or
Select (PV indication).
(Many times)
OUT/OFF key function [86]
or
Select (Control output OFF function).
(Many times) or (3 sec)
RUN mode
PV/SV Display
Now, selection is complete.
To turn the control output OFF, press the key for approximately 1 second in PV/SV Display.
PV is indicated in the PV Display. Indication differs depending on the selection in [Indication when
control output OFF].
Once the control output OFF function is enabled, the function cannot be cancelled even if the power
to the instrument is turned OFF and ON again.
To cancel the function, press the key again for approx. 1 second.
RUN mode (1 sec) Control output OFF
PV/SV Display [Unlit]
