Panasonic KT4R - 1 Model Number; How to Read the Rated Label

1. Model Number
1.1 Model Number
AKT□R □ 1 □□ 00 □
(1) (2)(3)(4)(5) (6)
(1) External dimensions 4: 48×48×68 (Depth of control panel interior 60) mm (W×H×D)
8: 48×96×68 (Depth of control panel interior 60) mm (W×H×D)
9: 96×96×68 (Depth of control panel interior 60) mm (W×H×D)
(2) Supply voltage 1: 100 to 240V AC，2: 24V AC/DC (※)
(3) Input type 1: Multi-input (Thermocouple, RTD, Direct current and DC voltage
can be selected by key operation.)
(4) Control output (OUT1) 1: Relay contact 2: Non-contact voltage (for SSR drive)
3: Direct current
(5) Event output 1: 1 point (Relay contact 1a)，2: 2 points (Relay contact 1a)
(6) Serial communication (*) Blank: Not available 1: RS-485 Serial communication
(※) Only for the KT4R model

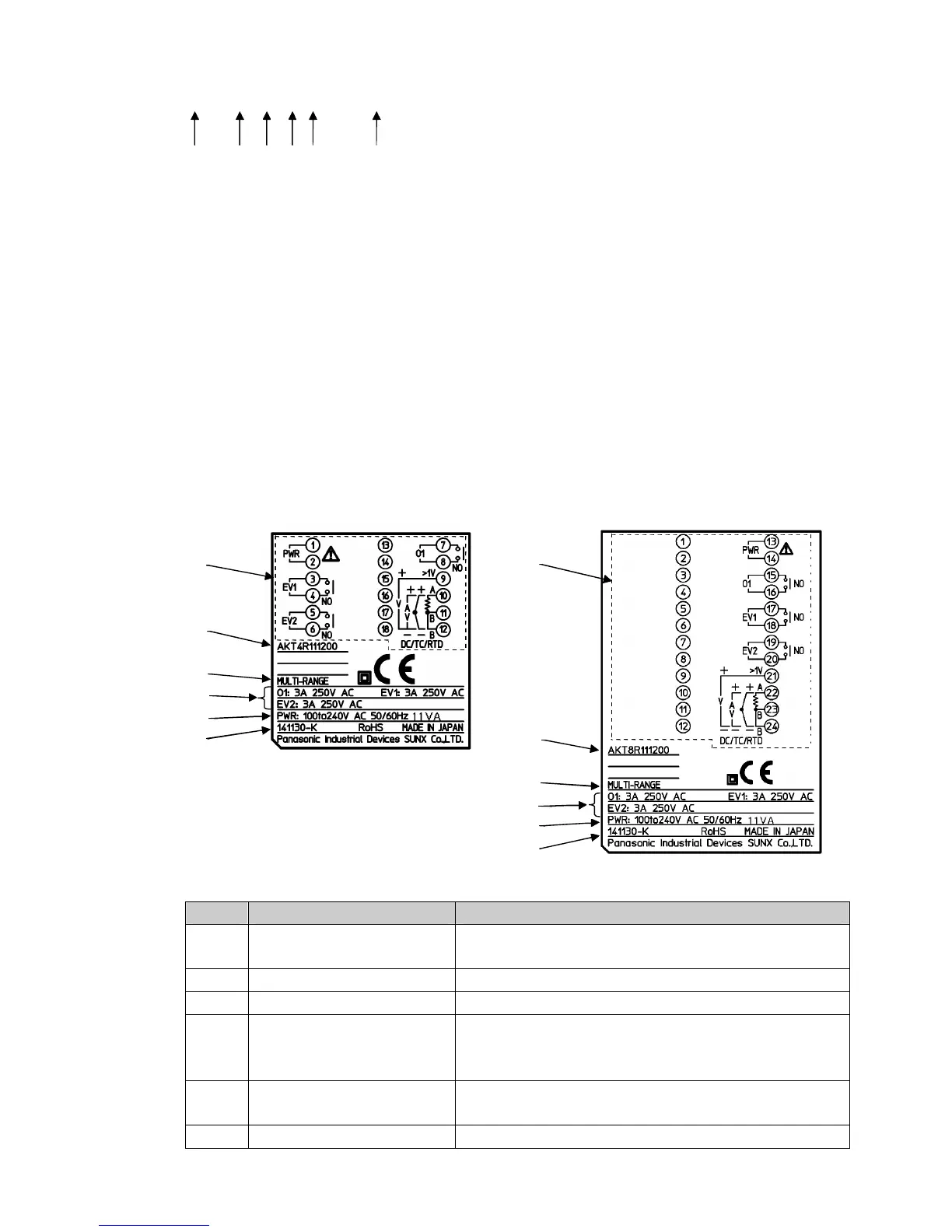

1.2 How to Read the Rated Label
The rated label is attached to the case.
KT4R KT8R, KT9R
(e.g.) AKT4R111200 (e.g.) AKT8R111200
(1) (1)
(2)
(3)
(4)
(5)
(6) (2)
(3)
(4)
(5)
(6)
(Fig. 1.2-1) (Fig. 1.2-2)
No. Explanation Indication Example
(1) Terminal arrangement Terminal arrangement for the AKT4R111200,
AKT8R111200
(2) Model number AKT4R111200, AKT8R111200
(3) Input MULTI-RANGE (Multi-range input)
(4) Control output,
Event output
O1: 3 A 250 V AC (Control output OUT1)
EV1: 3 A 250 V AC (Event output EV1)
EV2: 3 A 250 V AC (Event output EV2)
(5) Supply voltage,
Power consumption
100 to 240 V AC 50/60 Hz
11 VA
(6) Lot number 141130-K
