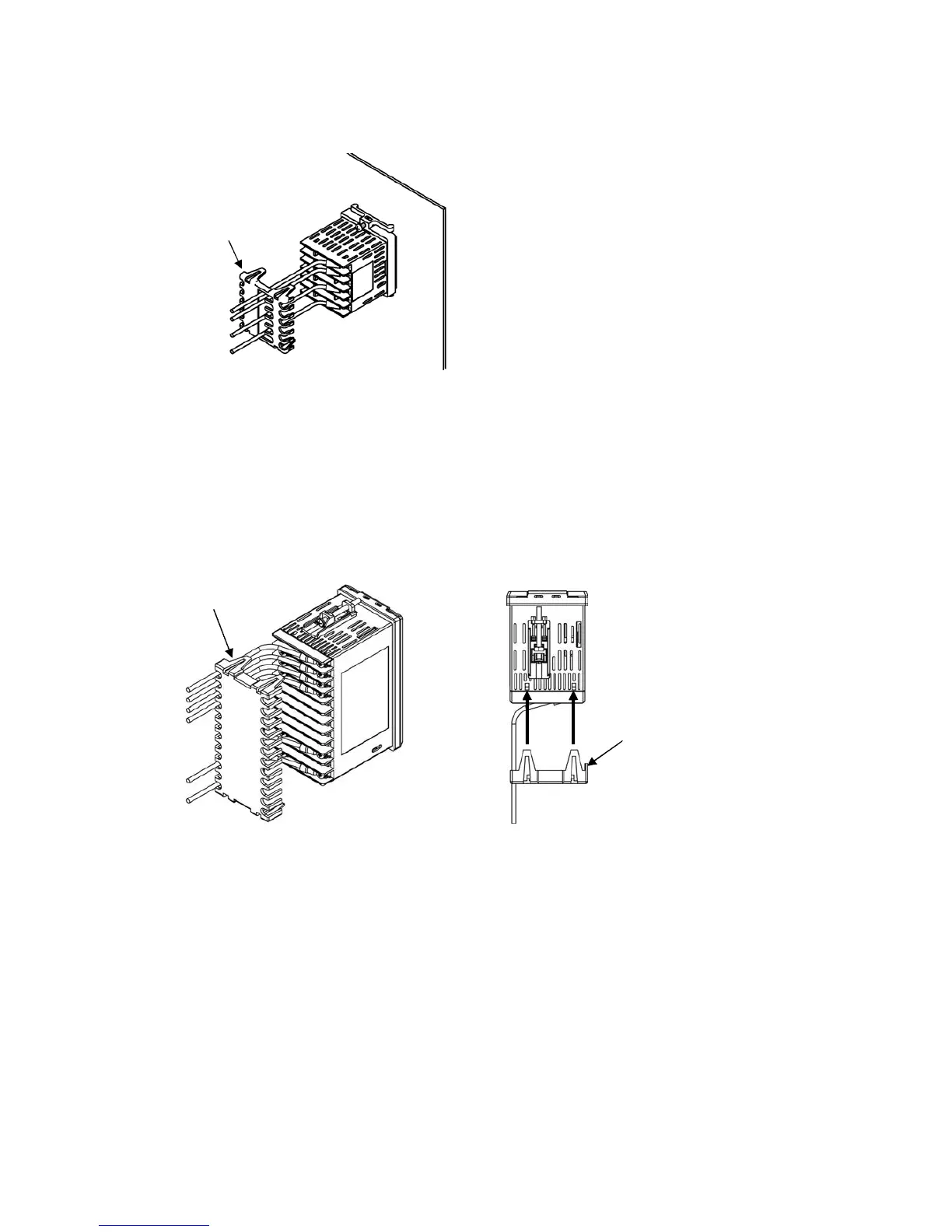

4.3 Terminal Cover
KT4R
When using a terminal cover (sold separately), make sure the longer side is on the back right side
of the case.
Pass the wires from terminals 7 to 12 into the holes of the terminal cover.
(Fig. 4.3-1)
KT8R
When using a terminal cover (sold separately), make sure the longer side is on the back right side
of the case.
Pass the wires from terminals 13 to 24 through the left side of the terminal cover.
(Fig. 4.3-2) (Fig. 4.3-3)
Terminal cover
Top of KT8R
Mount the longer side of the
cover to the back right.
