2. Names and Functions of Sections
KT4R

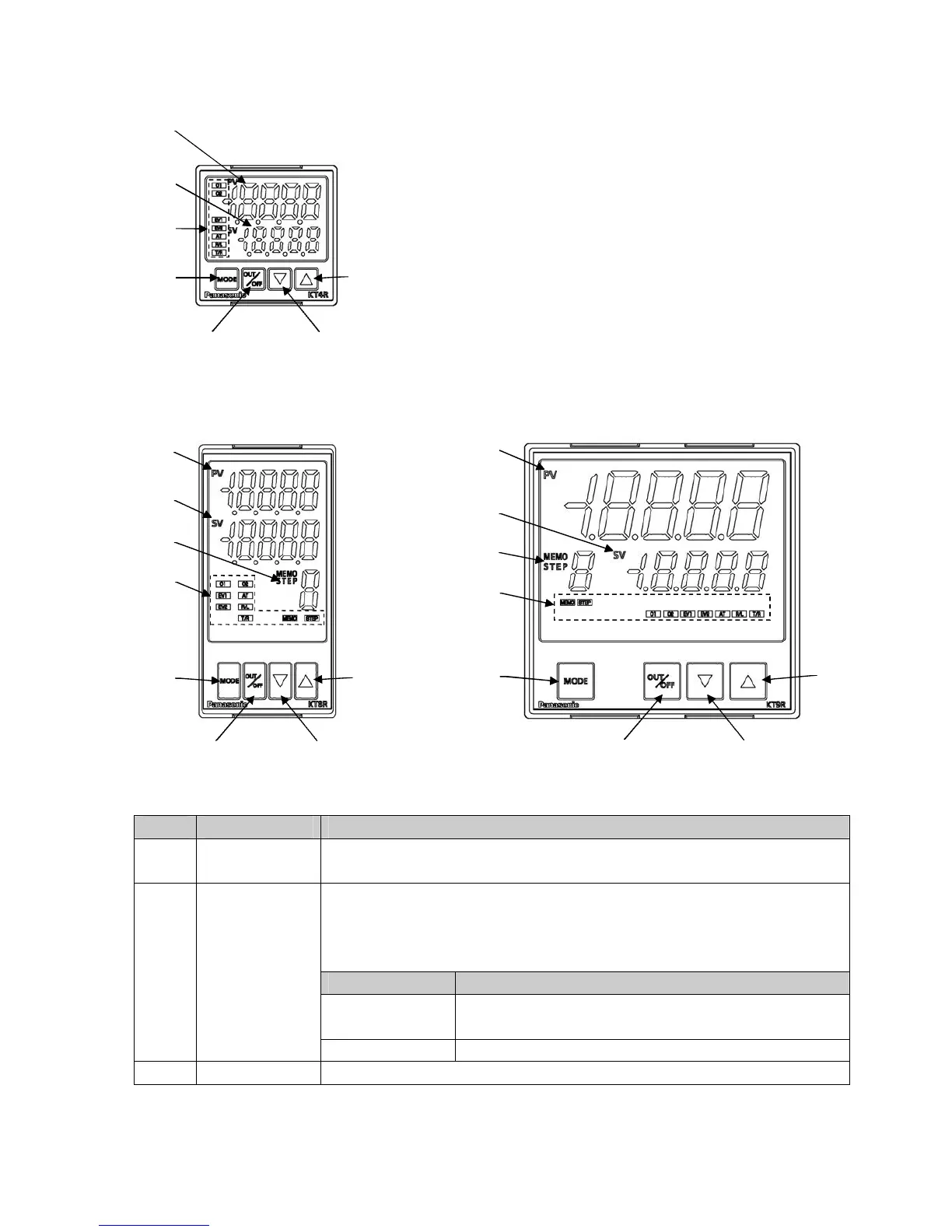

(Fig. 2-1)
KT8R KT9R
(Fig. 2-2) (Fig. 2-3)
Display
No. Name Description
(1) PV Display Indicates PV.
Indicates setting characters in each setting mode.
(2) SV Display Indicates SV.
Indicates set data in each setting mode.
In Monitor mode, indicated contents differ depending on the model number
as follows.
Model Number Indicated Contents
KT4R Indicates MV, Remaining time (Program control) or Step
number (Program control)
KT8R, KT9R Indicates MV or Remaining time (Program control).
(3) STEP Display Indicates Step number (Program control). (For KT8R, KT9R)
(1)
(2)
(4)
(5)
(6)
(7)
(8)
(1)
(2)
(4)
(3)
(5)
(8)
(6)
(7)
(1)
(2)
(4)
(3)
(5) (8)
(6)
(7)
