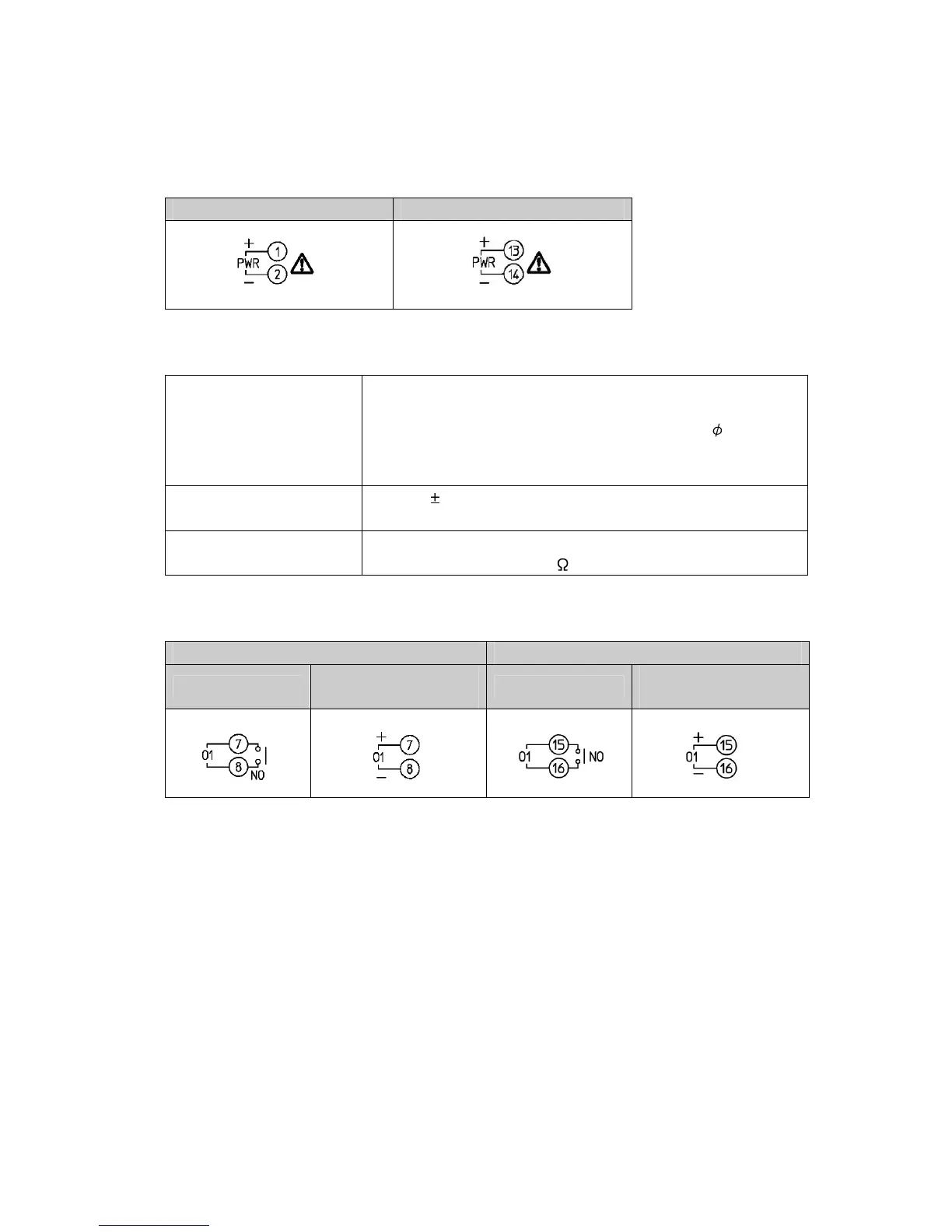

4.4 Wiring
For the terminal arrangement, refer to Section ‘4.1 Terminal Arrangement’ (p.16)．
4.4.1 Power Supply
Power supply voltage is 100 to 240 V AC or 24 V AC/DC.
For a 24 V AC/DC power source, ensure polarity is correct when using direct current (DC).
24 V AC/DC is available only for the KT4R model.
KT4R KT8R, KT9R
4.4.2 Control Output OUT1
Specifications of Control output OUT1 are shown below.
Relay contact 1a
Control capacity: 3 A 250 V AC (resistive load),
1 A 250 V AC (inductive load cos =0.4)
Electrical life: 100,000 cycles
Minimum applicable load: 10 mA 5 V DC
Non-contact voltage
(for SSR drive)
12 V DC 15%
Max. 40 mA (short circuit protected)
Direct current 4 to 20 mA DC
Load resistance: Max. 550
KT4R KT8R, KT9R
Relay contact
Non-contact voltage,
Direct current
Relay contact
Non-contact voltage,
Direct current
