3.3 Mounting to, and Removal from, the Control Panel
Caution
As the mounting frame of the KT4R is made of resin, do not use excessive force while
tightening screws, or the mounting frame could be damaged.
Tighten screws with one rotation upon the screw tips touching the panel.
The torque is 0.15 N•m.
For the KT8R, KT9R, the torque should be 0.1 N•m.
3.3.1 How to Mount the Unit
KT4R
Mount the controller vertically to the flat, rigid panel to ensure it adheres to the Water-proof/
Dust-proof specification (IP66).
If the lateral close mounting is used for the controller, IP66 specification (Water-proof/Dust-proof)
may be compromised, and all warranties will be invalidated.
Mountable panel thickness: 1 to 5 mm

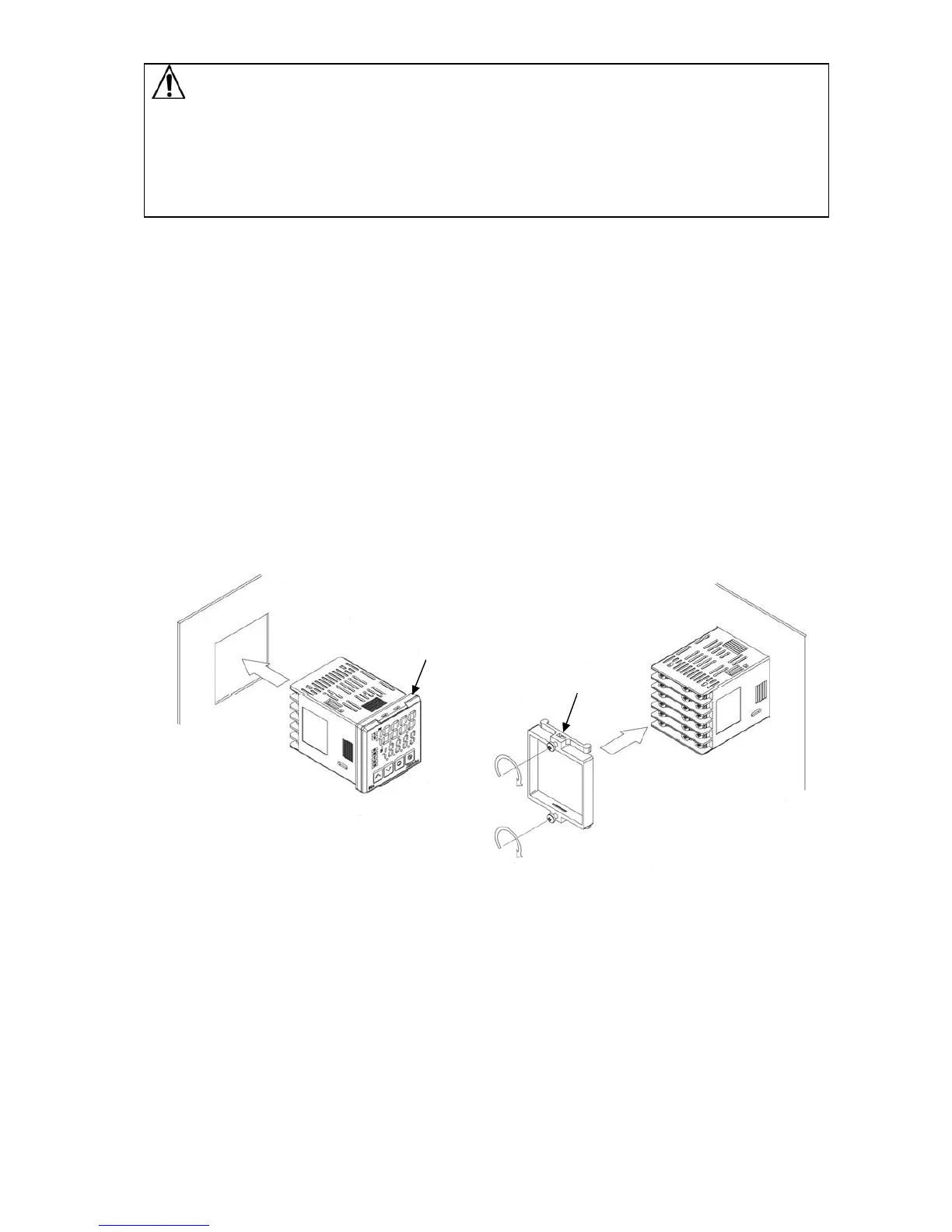

(1) Insert the controller from the front side of the control panel. (Fig. 3.3.1-1)
If the Water-proof/Dust-proof specification (IP66) is not necessary, the rubber gasket may be
removed (please keep in mind the warranty is void if the rubber gasket is removed).
(2) Insert the mounting frame until it comes into contact with the panel, and fasten with screws.
Tighten screws with one rotation upon the screw tips touching the panel. (Fig. 3.3.1-2)
The torque is approximately 0.15 N•m.
(Fig. 3.3.1-1) (Fig. 3.3.1-2)
Mounting frame
Rubber gasket
To Next Page
