KT8R, KT9R
Mount the controller vertically to the flat, rigid panel to ensure it adheres to the Water-proof/
Dust-proof specification (IP66).
If the lateral close mounting is used for the controller, IP66 specification (Water-proof/Dust-proof)
may be compromised, and all warranties will be invalidated.
Mountable panel thickness: 1 to 7 mm

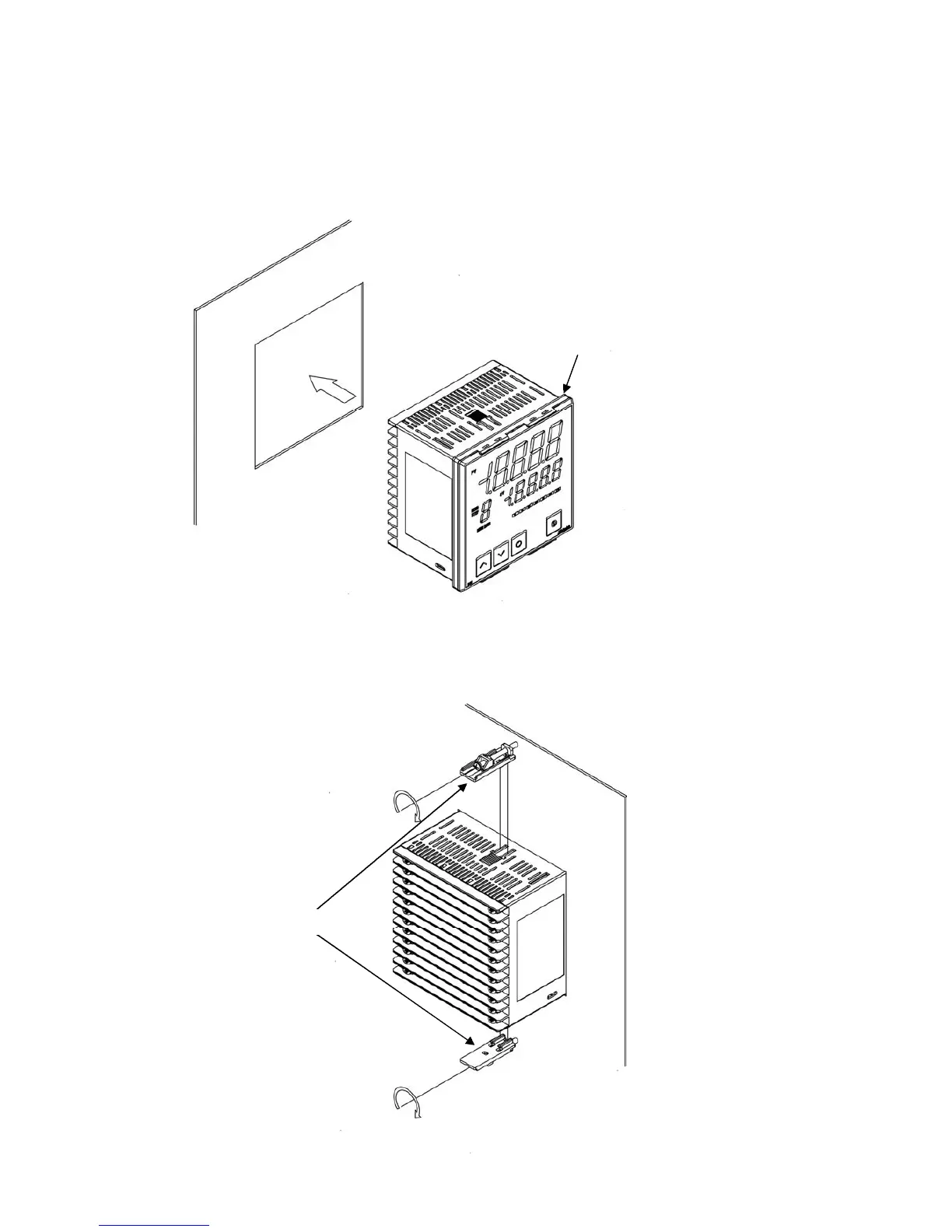

(1) Insert the controller from the front side of the control panel. (Fig. 3.3.1-3)
If the Water-proof/Dust-proof specification (IP66) is not necessary, the rubber gasket may be
removed (please keep in mind the warranty is void if the rubber gasket is removed).
(Fig. 3.3.1-3)
(2) Attach the mounting brackets by the holes at the top and bottom of the case, and secure the
controller in place with the screws.
The torque is approximately 0.1 N•m.
(Fig. 3.3.1-4)
Screw type
mounting bracket
Rubber gasket
