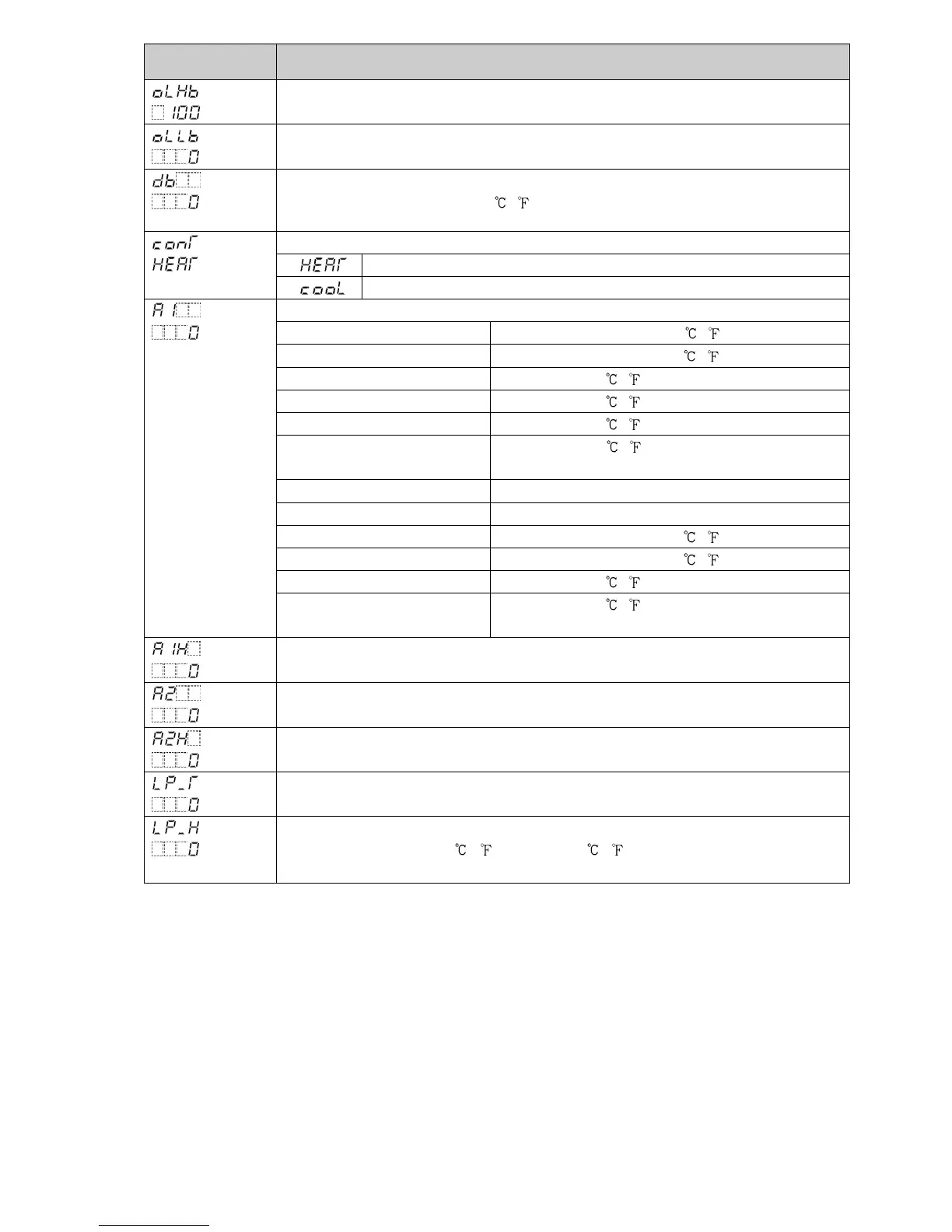

Characters,
Factory Default
Setting Item, Setting Range
OUT2 high limit
Setting range: OUT2 low limit value to 100%
OUT2 low limit
Setting range: 0% to OUT2 high limit value
Overlap/Dead band
Setting range: -200.0 to 200.0 ( ),
DC voltage, current inputs: -2000 to 2000 (*1)
Direct/Reverse action
Reverse (Heating) action
Direct (Cooling) action
EV1 alarm value
High limit alarm -(Input span) to Input span ( ) (*1) (*2)
Low limit alarm -(Input span) to Input span ( ) (*1) (*2)
High/Low limits alarm 0 to Input span ( ) (*1) (*2)
High/Low limits independent
0 to Input span ( ) (*1) (*2)
High/Low limit range alarm 0 to Input span ( ) (*1) (*2)
High/Low limit range
independent alarm
0 to Input span ( ) (*1) (*2)
Process high alarm Input range low limit to Input range high limit (*1) (*3)
Process low alarm Input range low limit to Input range high limit (*1) (*3)
High limit with standby alarm -(Input span) to Input span ( ) (*1) (*2)
Low limit with standby alarm -(Input span) to Input span ( ) (*1) (*2)
High/Low limits with standby 0 to Input span ( ) (*1) (*2)
High/Low limits with standby
independent alarm
0 to Input span ( ) (*1) (*2)
EV1 high limit alarm value
Setting range: Same as those of EV1 alarm value
EV2 alarm value
Setting range: Same as those of EV1 alarm value
EV2 high limit alarm value
Setting range: Same as those of EV1 alarm value
Loop break alarm time
Setting range: 0 to 200 minutes
Loop break alarm span
Setting range: 0 to 150 ( ), 0.0 to 150.0 ( )
DC voltage, current inputs: 0 to 1500 (*1)
(*1) The placement of the decimal point follows the selection.
(*2) For DC voltage, current inputs, the input span is the same as the scaling span.
(*3) For DC voltage, current inputs, input range low (or high) limit value is the same as scaling low (or high) limit value.
