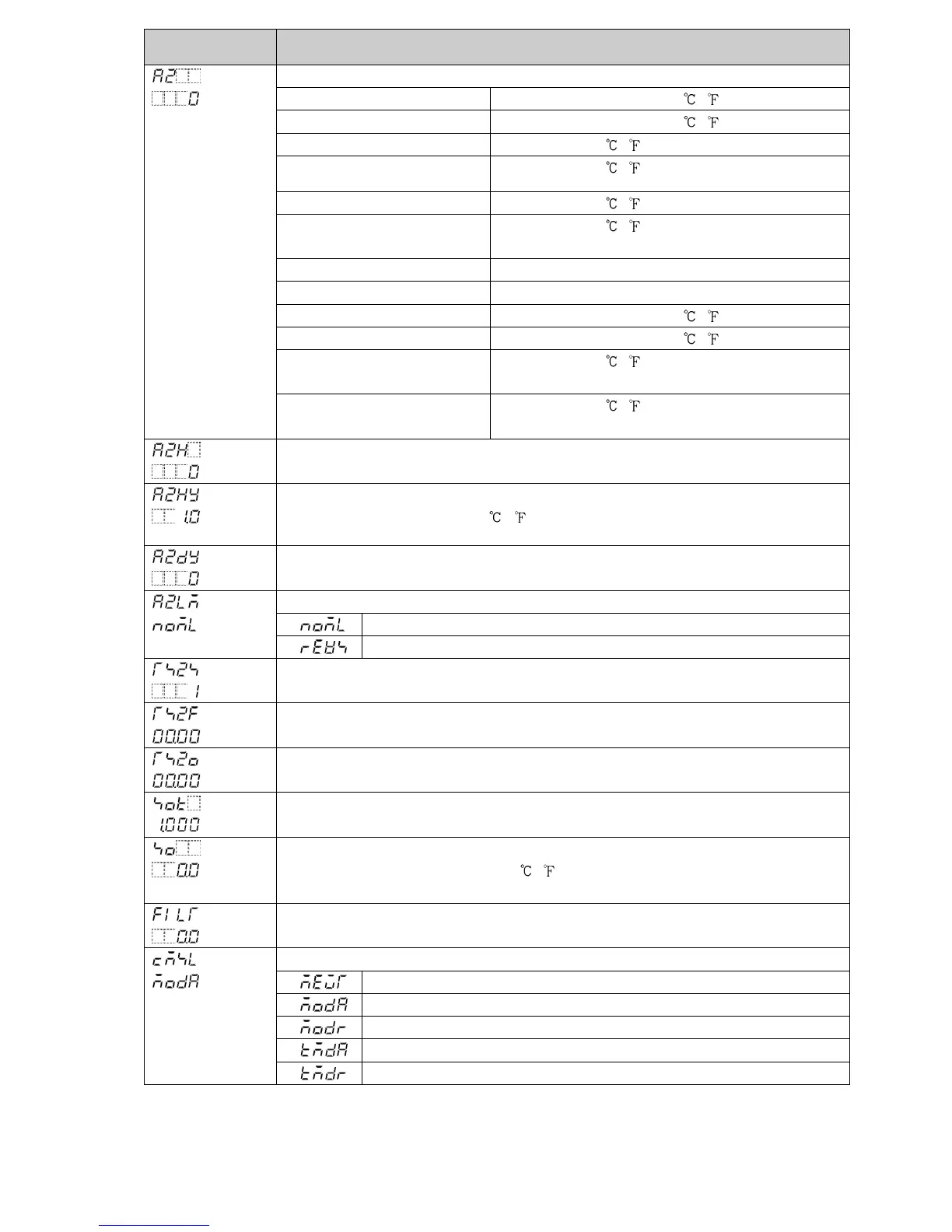

Characters,
Factory Default
Setting Item, Setting Range
EV2 alarm value
High limit alarm -(Input span) to Input span ( ) (*1) (*2)
Low limit alarm -(Input span) to Input span ( ) (*1) (*2)
High/Low limits alarm 0 to Input span ( ) (*1) (*2)
High/Low limits independent
alarm
0 to Input span ( ) (*1) (*2)
High/Low limit range alarm 0 to Input span ( ) (*1) (*2)
High/Low limit range
independent alarm
0 to Input span ( ) (*1) (*2)
Process high alarm Input range low limit to Input range high limit (*1) (*3)
Process low alarm Input range low limit to Input range high limit (*1) (*3)
High limit with standby alarm -(Input span) to Input span ( ) (*1) (*2)
Low limit with standby alarm -(Input span) to Input span ( ) (*1) (*2)
High/Low limits with standby
alarm
0 to Input span ( ) (*1) (*2)
High/Low limits with standby
independent alarm
0 to Input span ( ) (*1) (*2)
EV2 high limit alarm value
Setting range: Same as those of EV2 alarm value
EV2 alarm hysteresis
Setting range: 0.1 to 1000.0 ( ),
DC voltage, current inputs: 1 to 10000 (*1)
EV2 alarm delay time
Setting range: 0 to 10000 seconds
EV2 alarm Energized/De-energized
Energized
De-energized
TS2 output step number
Setting range: 1 to 9
TS2 OFF time
Setting range: 00:00 to 99:59 (*4)
TS2 ON time
Setting range: 00:00 to 99:59 (*4)
Sensor correction coefficient
Setting range: -10.000 to 10.000
Sensor correction
Setting range: -1000.0 to 1000.0 ( )
DC voltage, current inputs: -10000 to 10000 (*1)
PV filter time constant
Setting range: 0.0 to 10.0 seconds
Communication protocol
MEWTOCOL
MODBUS ASCII
MODBUS RTU
MODBUS ASCII (KT command allocation)
MODBUS RTU (KT command allocation)
(*1) The placement of the decimal point follows the selection.
(*2) For DC voltage, current inputs, the input span is the same as the scaling span.
(*3) For DC voltage, current inputs, input range low (or high) limit value is the same as scaling low (or high) limit value.
(*4) Time unit follows the selection from [Step time unit].
