Characters,
Factory Default

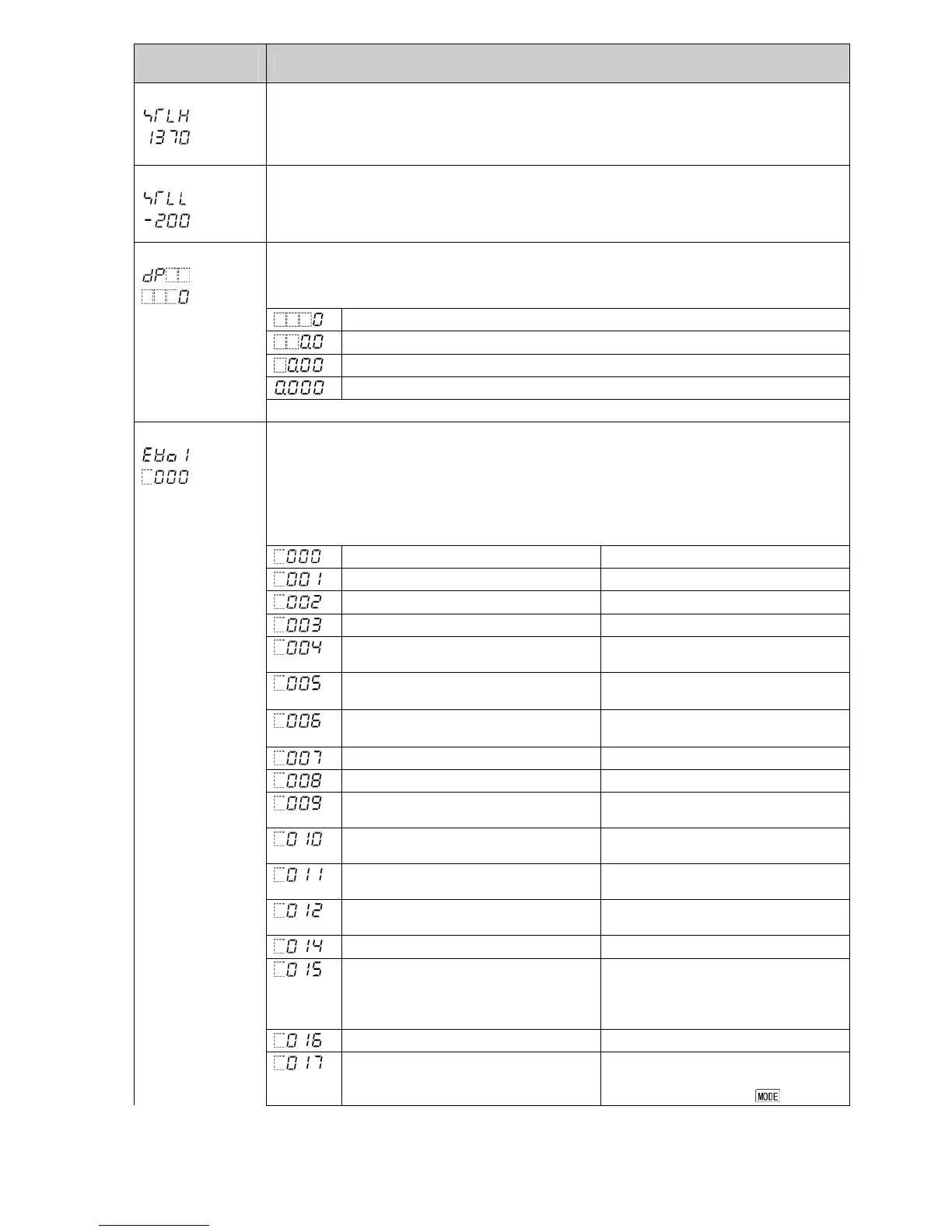

Setting Item, Function, Setting Range
[2] Scaling high limit
• Sets scaling high limit value.
• Setting range: Scaling low limit value to Input range high limit value
DC voltage, current inputs: -2000 to 10000 (*1)
[3]
Scaling low limit
• Sets scaling low limit value.
• Setting range: Input range low limit value to Scaling high limit value
DC voltage, current inputs: -2000 to 10000 (*1)
[4] Decimal point place
• Selects decimal point place.
• Selection item:
No decimal point
1 digit after decimal point
2 digits after decimal point
3 digits after decimal point
Available only for DC voltage and current inputs
[5]
Event output EV1 allocation
• Selects Event output EV1 from the Event Output Allocation Table below.
• When changing Event output EV1, refer to Section “8.10 Items to be Initialized by
Setting Changes” (p.84).
• Selection item:
Event Output Allocation Table
No event
Alarm output, High limit alarm
Alarm output, Low limit alarm
Alarm output, High/Low limits alarm
Alarm output, High/Low limits
independent alarm
Alarm output, High/Low limit range
alarm
Alarm output, High/Low limit range
independent alarm
Alarm output, Process high alarm
Alarm output, Process low alarm
Alarm output, High limit with standby
alarm
Alarm output, Low limit with standby
alarm
Alarm output, High/Low limits
with standby alarm
Alarm output, High/Low limits
with standby independent alarm
Loop break alarm output
Time signal output
Turns OFF or ON during Program
control, by setting OFF and ON
times within the step set in [Step
number].
Output during AT
Turns ON duringAT.
Pattern end output
Turns ON when Program control
ends, and remains ON until turned
OFF by pressing the key.
(*1)The placement of the decimal point follows the selection.
