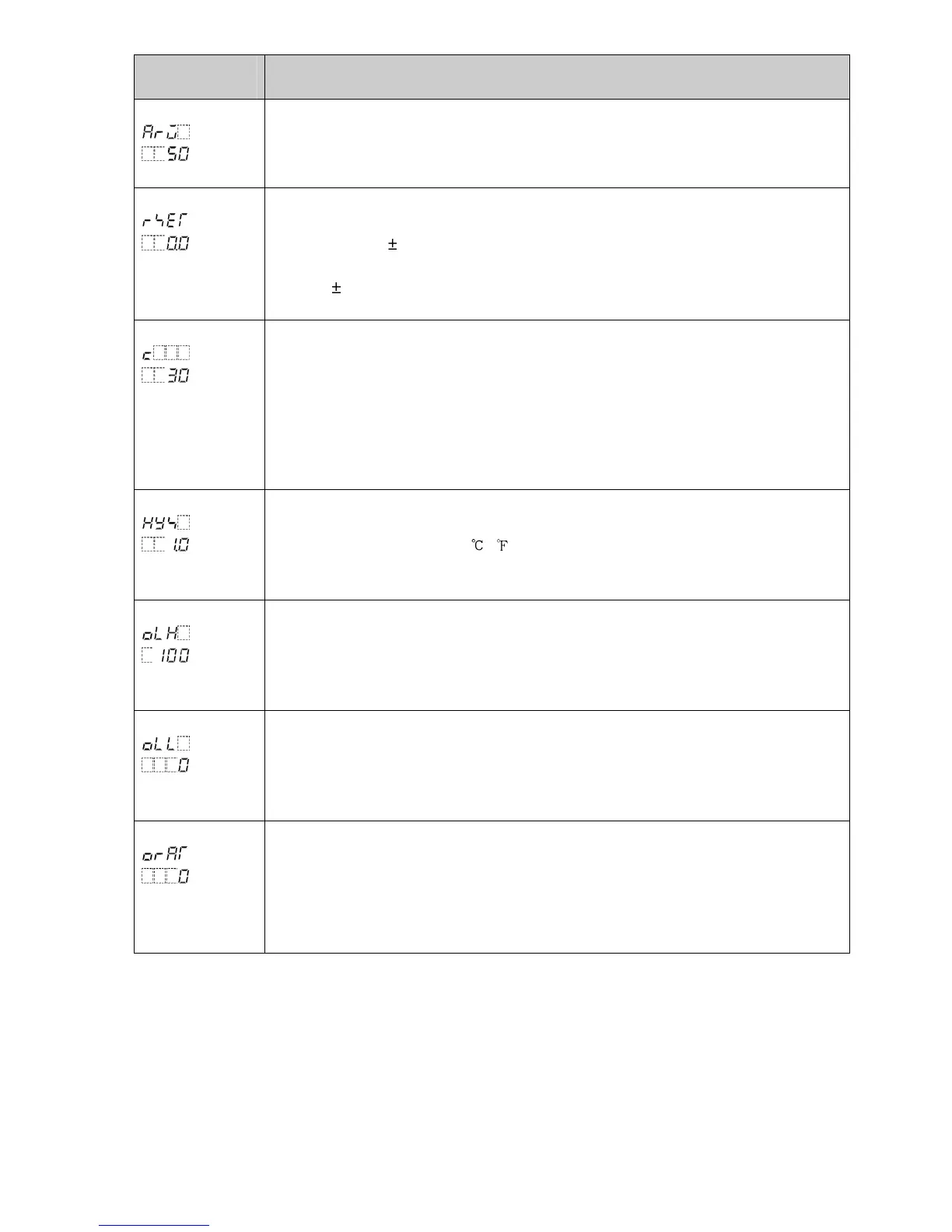

Characters,
Factory Default
Setting Item, Function, Setting Range
[41] ARW
• Sets ARW (anti-reset windup).
• Setting range: 0 to 100%
Available only for PID control.
[42] Manual reset
• Sets the reset value manually.
• Setting range: Proportional band value
If a value larger than 100.0% is set in [OUT1 proportional band], the setting range
will be 100.0.
Available for P control and PD control.
[43]
Factory default:
• Relay contact
output: 30 sec.
• Non-contact
voltage output:
3 sec.
OUT1 proportional cycle
• Sets proportional cycle for OUT1.
For relay contact output, if the proportional cycle time is decreased, the frequency
of the relay action increases, and the life of the relay contact is shortened.
• Setting range: 0.5, or 1 to 120 seconds
Not available for Direct current output type, or if OUT1 is in ON/OFF control.
[44] OUT1 ON/OFF hysteresis
• Sets ON/OFF hysteresis for OUT1.
• Setting range: 0.1 to 1000.0 ( ),
DC voltage, current inputs: 1 to 10000 (*1)
Available only when OUT1 is in ON/OFF control.
[45] OUT1 high limit
• Sets OUT1 high limit value.
• Setting range: OUT1 low limit value to 100%
(Direct current output type: OUT1 low limit value to 105%)
Not available if OUT1 is in ON/OFF control.
[46] OUT1 low limit
• Sets OUT1 low limit value.
• Setting range: 0% to OUT1 high limit value
(Direct current output type: -5% to OUT1 high limit value)
Not available if OUT1 is in ON/OFF control.
[47] OUT1 rate-of-change
• Sets changing value of OUT1 MV for 1 second.
See ‘OUT1 rate-of-change’ on p. 52.
• Setting range: 0 to 100%/second
Setting the value to 0 disables this function.
Not available if OUT1 is in ON/OFF control.
(*1) The placement of the decimal point follows the selection.
