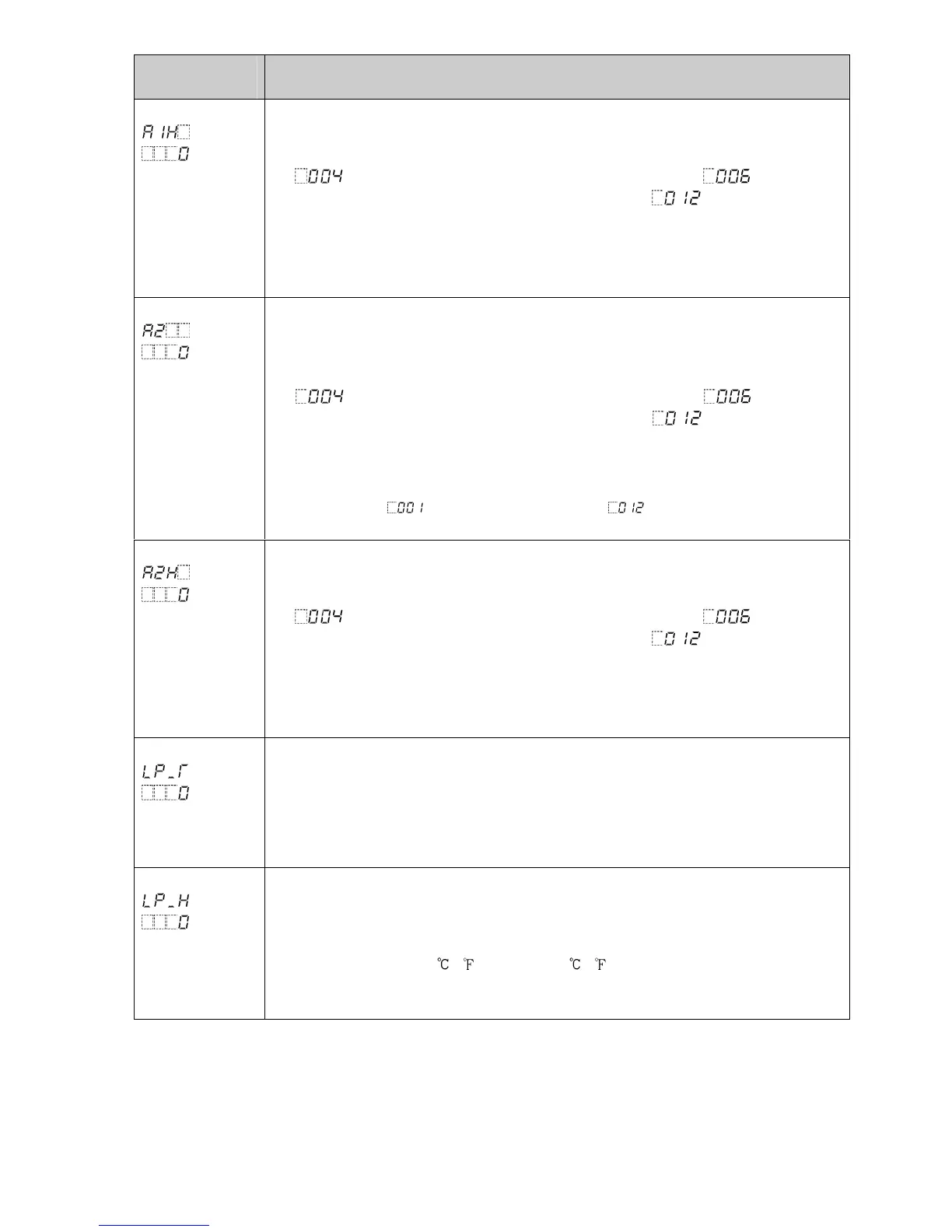

Characters,
Factory Default
Setting Item, Function, Setting Range
[57] EV1 high limit alarm value
• Sets EV1 high limit alarm value.
This value is available only for the following cases:
(Alarm output, High/Low limits independent alarm), (Alarm
output, High/Low limit range independent alarm), or (Alarm output,
High/Low limits with standby independent alarm) is selected in [Event output EV1
allocation].
Corresponds to [EV1 high limit alarm value] in Initial setting mode.
• Setting range: Same as those of EV1 alarm value
[58] EV2 alarm value
• Sets EV2 alarm value.
Corresponds to [EV2 alarm value] in Initial setting mode.
EV2 alarm value matches EV2 low limit alarm value in the following cases:
(Alarm output, High/Low limits independent alarm), (Alarm
output, High/Low limit range independent alarm), or (Alarm output
High/Low limits with standby independent alarm) is selected in [Event output EV2
allocation].
• Setting range: Same as those of EV1 alarm value
Available only when (Alarm output, High limit alarm) to (Alarm output, High/Low limits with
standby independent alarm) is selected in [Event output EV2 allocation].
[59] EV2 high limit alarm value
• Sets EV2 high limit alarm value.
This value is available only for the following cases:
(Alarm output, High/Low limits independent alarm), (Alarm
output, High/Low limit range independent alarm), or (Alarm output,
High/Low limits with standby independent alarm) is selected in [Event output EV2
allocation].
Corresponds to [EV2 high limit alarm value] in Initial setting mode.
• Setting range: Same as those of EV1 alarm value
[60] Loop break alarm time
• Sets the time to assess the Loop break alarm.
Corresponds to [Loop break alarm time] in Initial setting mode.
Refer to ‘Loop Break Alarm’ on p.40.
• Setting range: 0 to 200 minutes
Setting to 0 (zero) disables the alarm.
[61] Loop break alarm span
• Sets the temperature to assess the Loop break alarm.
Corresponds to [Loop Break alarm span] in Initial setting mode.
Refer to ‘Loop Break Alarm’ on p.40.
• Setting range: 0 to 150 ( ), 0.0 to 150.0 ( )
DC voltage, current inputs: 0 to 1500 (*1)
Setting to 0 (zero) disables the alarm.
(*1) The placement of the decimal point follows the selection.
