Characters,
Factory Default
Setting Item, Function, Setting Range

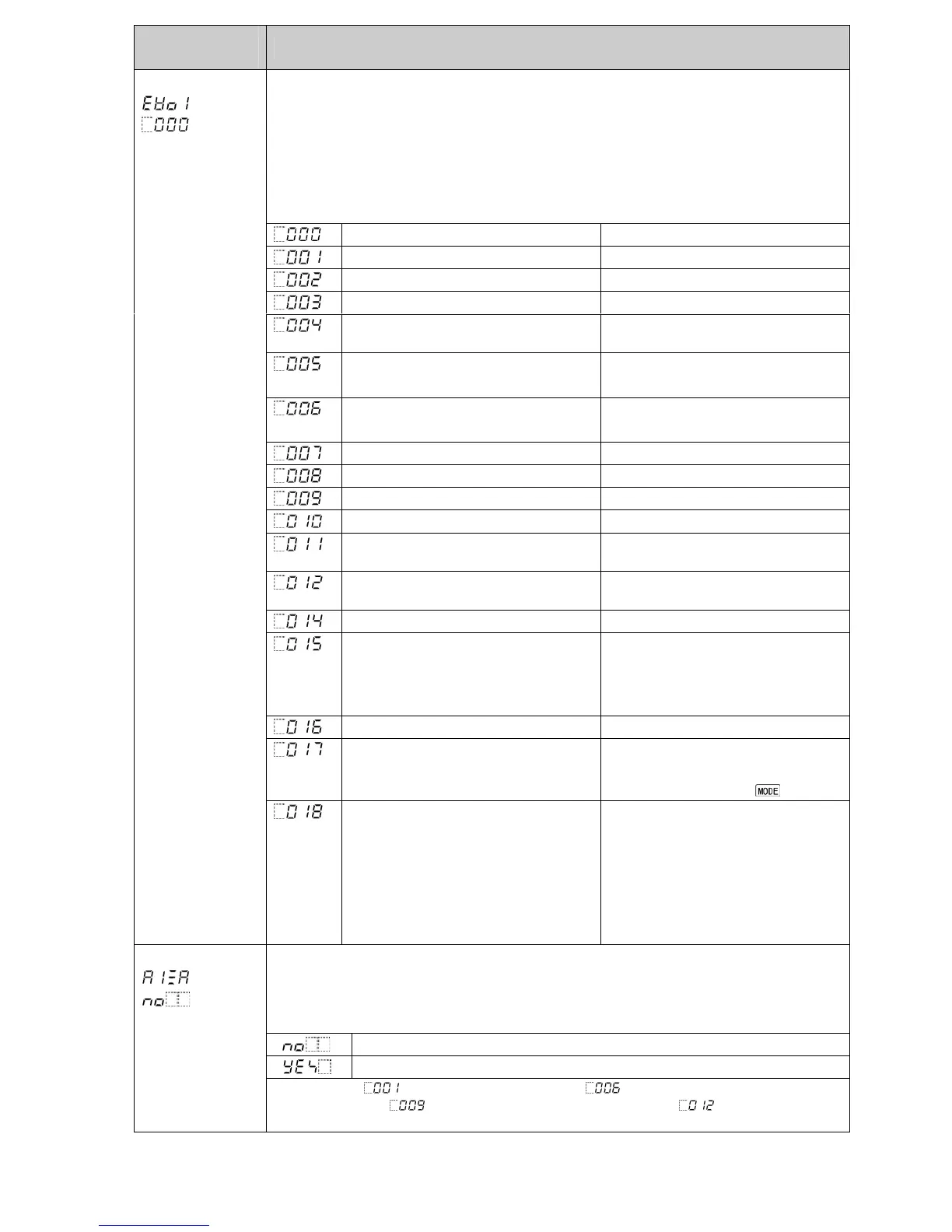

[63] Event output EV1 allocation
• Selects Event output EV1 from the Event Output Allocation Table below.
Corresponds to [Event output EV1 allocation] in Initial setting mode.
• When changing Event output EV1 allocation, refer to Section “8.10 Items to be
Initialized by Changing Settings” (p.84).
• Selection item:
Event Output Allocation Table
No event
Alarm output, High limit alarm
Alarm output, Low limit alarm
Alarm output, High/Low limits alarm
Alarm output, High/Low limits
independent alarm
Alarm output, High/Low limit range
alarm
Alarm output, High/Low limit range
independent alarm
Alarm output, Process high alarm
Alarm output, Process low alarm
Alarm output, High limit with standby
Alarm output, Low limit with standby
Alarm output, High/Low limits
with standby alarm
Alarm output, High/Low limits
with standby independent alarm
Loop break alarm output
Time signal output
Turns OFF or ON during Program
control, by setting OFF and ON
times within the step set in [Step
number].
Output during AT Turns ON duringAT.
Pattern end output
Turns ON when Program control
ends, and remains ON until turned
OFF by pressing the key.
Output by communication
command
Turns OFF or ON by communication
command 00E4H during Serial
communication.
B0 EV1 output 0: OFF
1: ON
B1 EV2 output 0: OFF
1: ON
EV1 alarm value 0 Enabled/Disabled
• When EV1 alarm value is 0 (zero), alarm action can be Enabled or Disabled.
Corresponds to [EV1 alarm value 0 Enabled/Disabled] in Initial setting mode.
• Selection item:
Disabled
Enabled
[A]
Available when (Alarm output, High limit alarm) to (Alarm output, High/Low limit range
independent alarm), (Alarm output, High limit with standby alarm) to (Alarm output,
High/Low limits with standby independent alarm) are selected in [Event output EV1 allocation].
