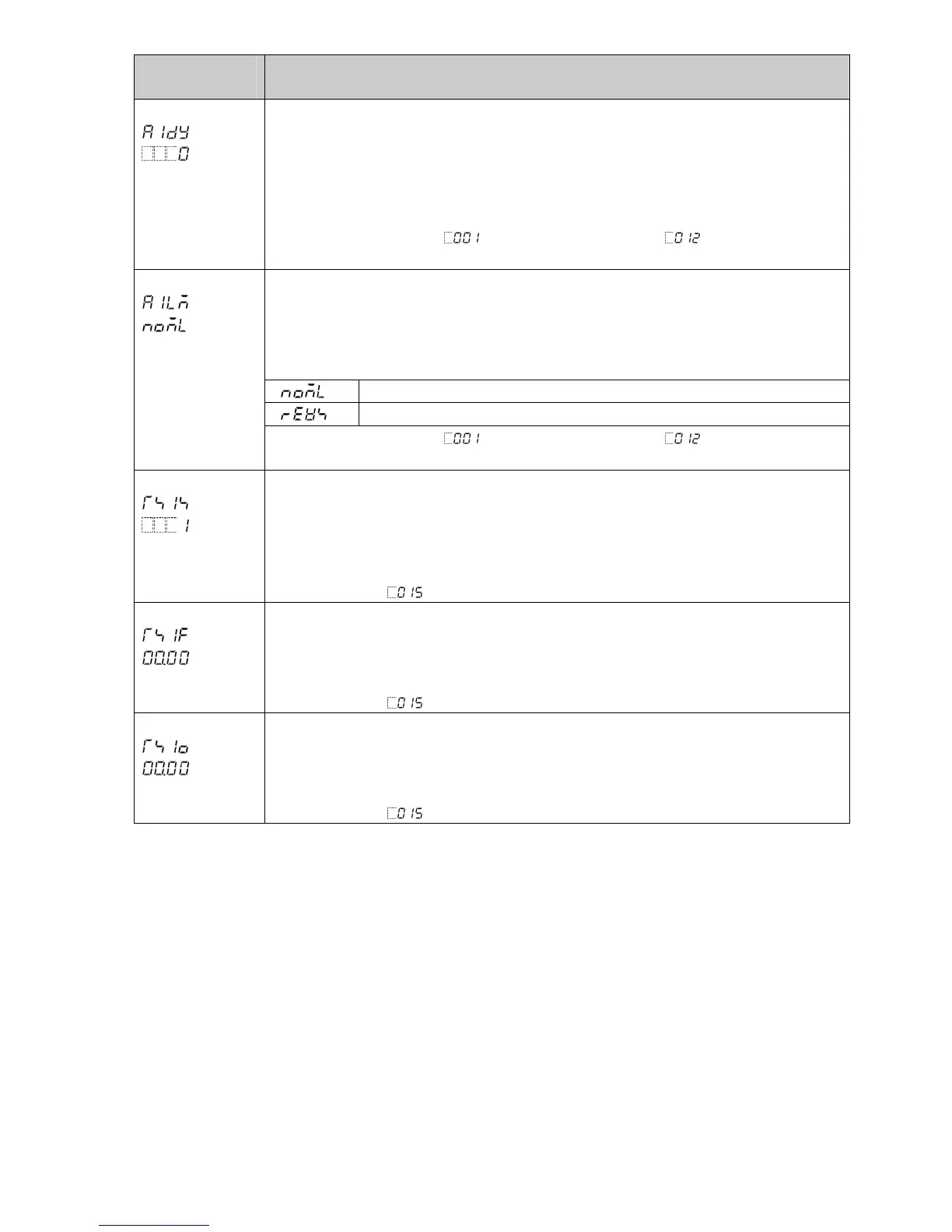

Setting Item, Function, Setting Range
[E] EV1 alarm delay time
• Sets EV1 alarm action delay time.
Corresponds to [EV1 alarm delay time] in Initial setting mode.
When setting time has elapsed after the input enters the alarm output range, the
alarm is activated.
• Setting range: 0 to 10000 seconds
Available when any alarm from (Alarm output, High limit alarm) to (Alarm output, High/Low
limits with standby independent alarm) is selected in [Event output EV1 allocation].
EV1 alarm Energized/De-energized
• Selects Energized/De-energized status for EV1 alarm.
Corresponds to [EV1 alarm Energized/De-energized] in Initial setting mode.
(Refer to ‘EV1/EV2 Energized/De-energized’ on p.40.)
• Selection item:
Energized
De-energized
[F]
Available when any alarm from (Alarm output, High limit alarm) to (Alarm output, High/Low
limits with standby independent alarm) is selected in [Event output EV1 allocation].
[G] TS1 output step number
• Sets the step number for which Time signal output TS1 is turned OFF or ON
during Program control.
Corresponds to [TS1 output step number] in Initial setting mode.
• Setting range: 1 to 9
Available only when (Time signal output) is selected in [Event output EV1 allocation].
[H] TS1 OFF time
• Sets Time signal output TS1 OFF time.
Corresponds to [TS1 OFF time] in Initial setting mode.
• Setting range: 00:00 to 99:59 (*4)
Available only when (Time signal output) is selected in [Event output EV1 allocation].
[I] TS1 ON time
• Sets Time signal output TS1 ON time.
Corresponds to [TS1 ON time] in Initial setting mode.
• Setting range: 00:00 to 99:59 (*4)
Available only when (Time signal output) is selected in [Event output EV1 allocation].
(*4) Time unit follows the selection from [Step time unit].
