Characters,
Factory Default

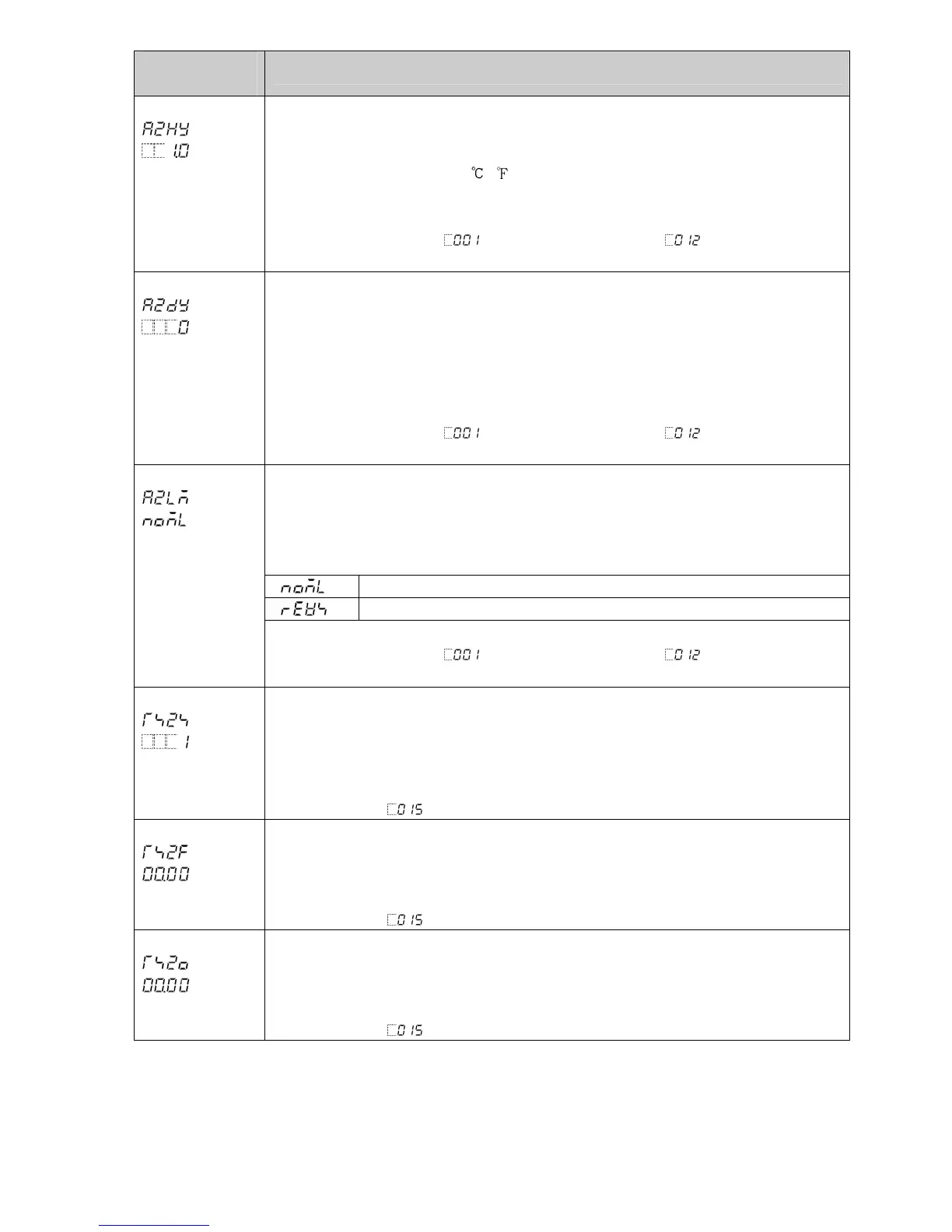

Setting Item, Function, Setting Range
[D] EV2 alarm hysteresis
• Sets EV2 alarm hysteresis.
Corresponds to [EV2 alarm hysteresis] in Initial setting mode.
• Setting range: 0.1 to 1000.0 ( ),
DC voltage, current inputs: 1 to 10000 (*1)
Available only when Event output EV2 is specified.
Available when any alarm from (Alarm output, High limit alarm) to (Alarm output, High/Low
limits with standby independent alarm) is selected in [Event output EV2 allocation].
[E] EV2 alarm delay time
• Sets EV2 alarm action delay time.
Corresponds to [EV2 alarm delay time] in Initial setting mode.
When setting time has elapsed after the input enters the alarm output range, the
alarm is activated.
• Setting range: 0 to 10000 seconds
Available only when Event output EV2 is specified.
Available when any alarm from (Alarm output, High limit alarm) to (Alarm output, High/Low
limits with standby independent alarm) is selected in [Event output EV2 allocation].
EV2 alarm Energized/De-energized
• Selects Energized/De-energized status for EV2 alarm.
Corresponds to [EV2 alarm Energized/De-energized] in Initial setting mode.
Refer to ‘EV1/EV2 Energized/De-energized’ (p.40).
• Selection item:
Energized
De-energized
[F]
Available only when Event output EV2 is specified.
Available when any alarm from (Alarm output, High limit alarm) to (Alarm output, High/Low
limits with standby independent alarm) is selected in [Event output EV2 allocation].
[G] TS2 output step number
• Sets the step number for which Time signal output TS2 is turned OFF or ON
during Program control.
Corresponds to [TS2 output step number] in Initial setting mode.
• Setting range: 1 to 9
Available only when (Time signal output) is selected in [Event output EV2 allocation].
[H] TS2 OFF time
• Sets Time signal output TS2 OFF time.
Corresponds to [TS2 OFF time] in Initial setting mode.
• Setting range: 00:00 to 99:59 (*4)
Available only when (Time signal output) is selected in [Event output EV2 allocation].
[I] TS2 ON time
• Sets Time signal output TS2 ON time.
Corresponds to [TS2 ON time] in Initial setting mode.
• Setting range: 00:00 to 99:59 (*4)
Available only when (Time signal output) is selected in [Event output EV2 allocation].
(*1) The placement of the decimal point follows the selection.
(*4) Time unit follows the selection from [Step time unit].
