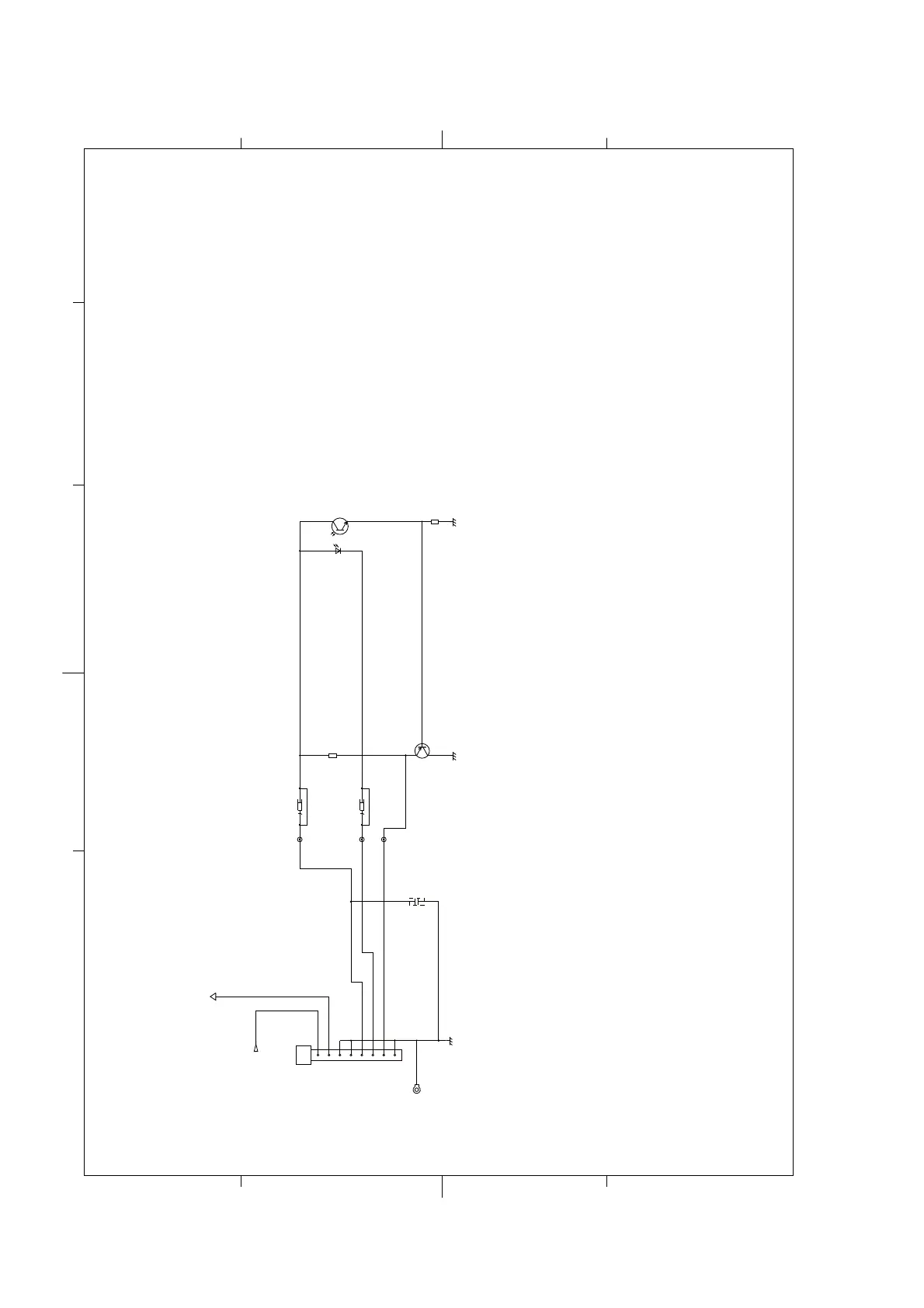

12.5.4. STARTING SENSOR Board
12.5.4.1. No.1
6
A D C B
542
3
D A B C
CL2302
R2302 0 R2301 0
CL2303 CL2301
GND
Q2302
E
C
GND
R2304
2.7k
GND
Q2301
R2303
2.2k
C2301
0.1u
CN2301
1
US-AMP_OUT
2
+12V
3
GND
4
GND
5
+3.3V_SLP
6
START_LED
7
START_PHOTO_TR
8
GND
US-AMP_OUT5:6D
+12V
LG1
D2301
IR
STARTING SENSOR
*1
KV-S1057C / KV-S1027C STARTING SENSOR Board
