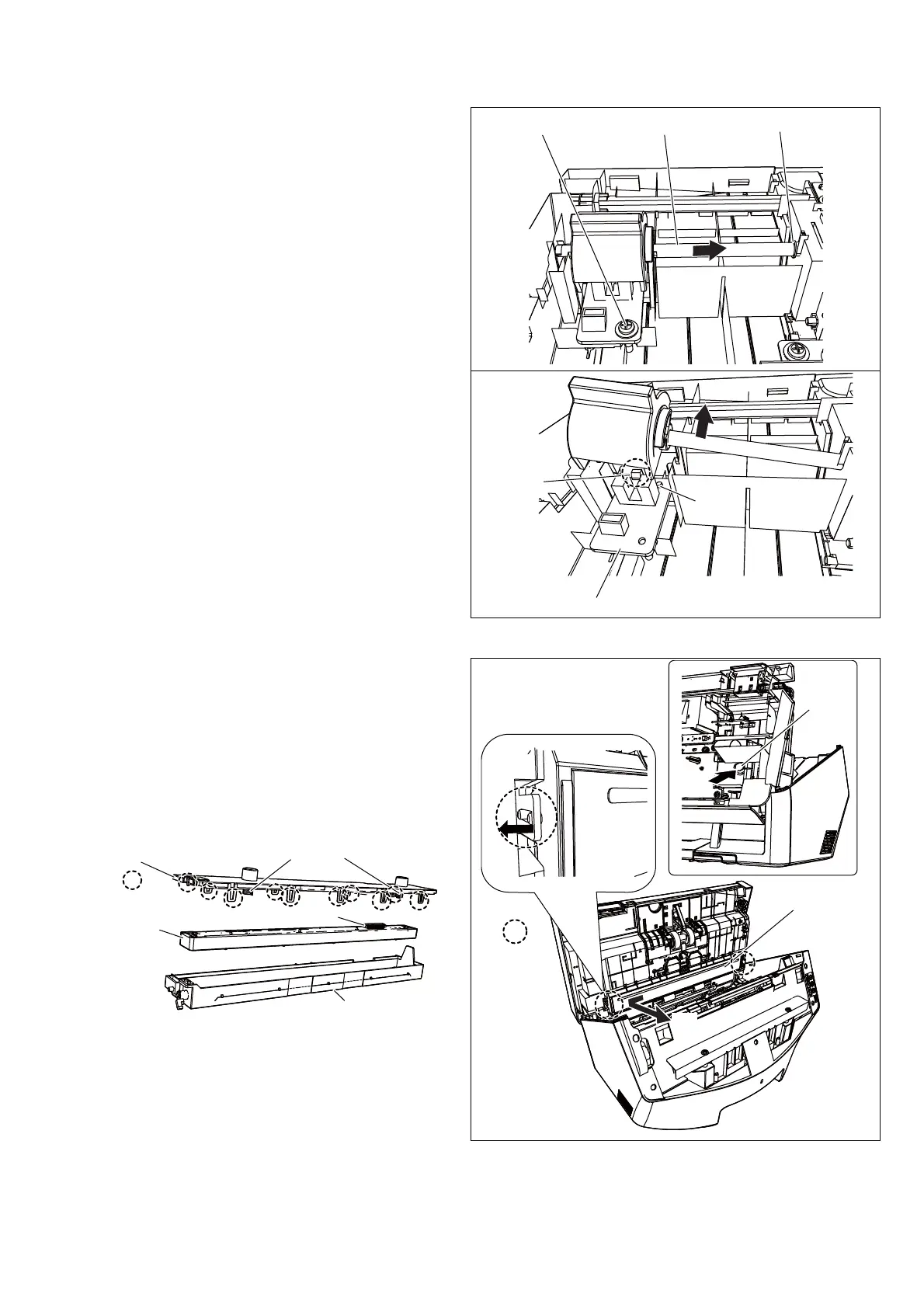

7.3.4. AUTO/MANUAL DETECTION Board
7.3.5. CIS (B)
(1) Remove the Top Cover. (See Top Cover (P.2 6 ))
(2) Remove the Polyslider.
(3) Slide the DFP Release Shaft in the direction of the arrow.
(4) Remove the screw B.
(5) Lift up the shaft in the direction of the arrow.
(6) Remove the AUTO/MANUAL DETECTION Board, while
unlocking the hook.
(7) Disconnect the connector.
(1) Remove Top Cover. (See
Top Cover (P.2 6))
(2) Unlock the Hook (arrow 1), while pushing the boss of the
CIS (B) Assembly (arrow 2).
(3) Remove CIS (B) Assembly (arrow 3).
(4) Disconnect the FFC cable from the connector of the CIS (B).
(5) Remove the CIS Cover B with 2 CIS Springs, while releasing
the 9 hooks.
(6) Remove CIS (B) from Scanning Glass (B).
Polyslider
DFP Release Shaft
B
Boss
Hook
A
UTO/MANUAL DETECTION Board
CIS Cover B
Hooks
CIS Spring
CIS (B) Connector
CIS (B)
Scanning Glass (B)
Scanning Glass (B)
Hook
Boss of
CIS (B)
1
3
2
