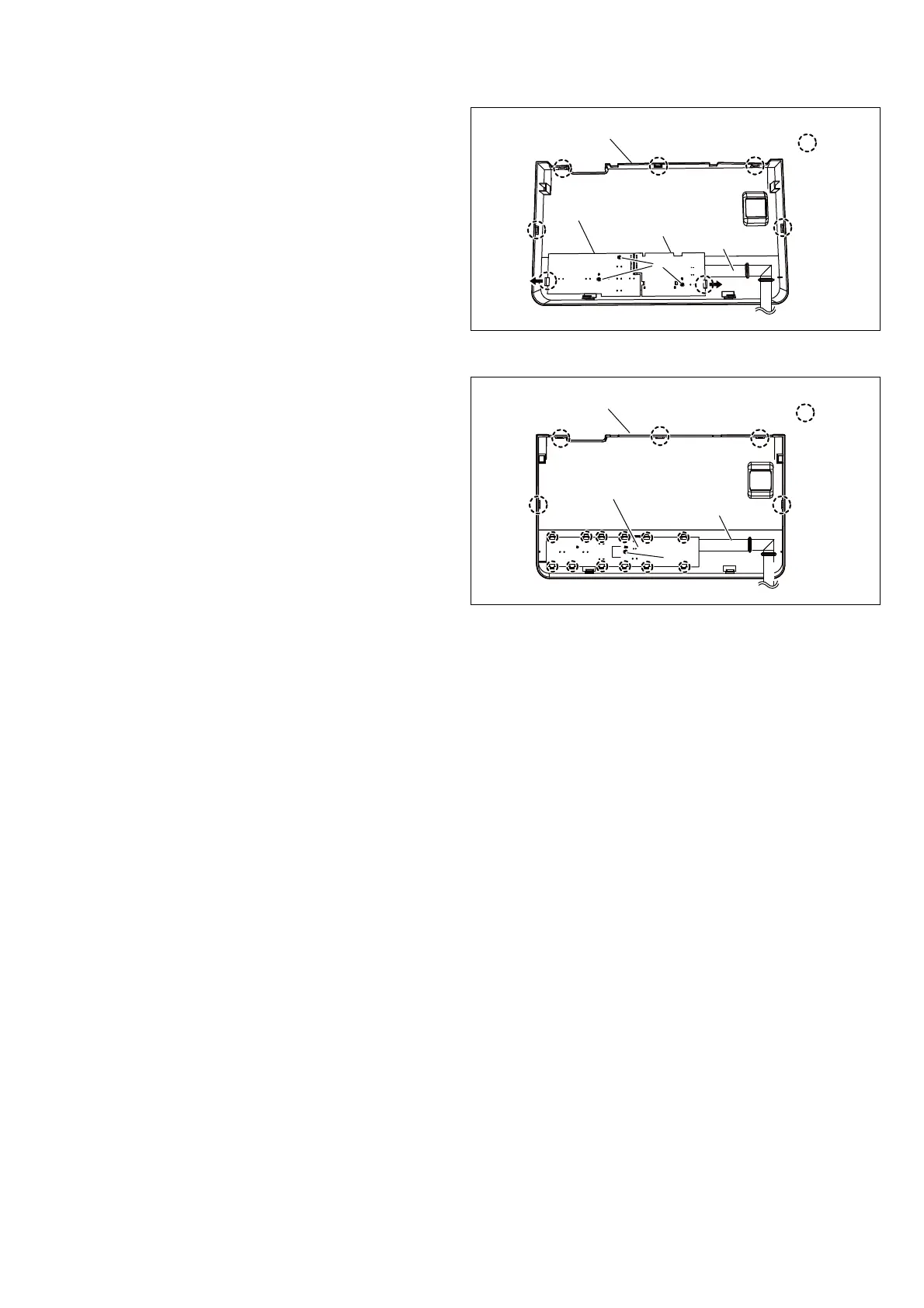

7.2.7. PANEL SWITCH Board and LCD PANEL Board (KV-S10xxC)
7.2.8. PANEL Board (KV-SL10xx)
(1) Remove Top Cover. (See Top Cover (P.26))
(2) Remove the 3 screws C.
(3) Remove the PANEL SWITCH Board and LCD PANEL
Board, while unlocking the 2 hooks in the direction of the
arrows.
(4) Disconnect the FFC cable.
(5) Disconnect the PANEL SWITCH Board from the LCD
PANEL Board.
(1) Remove Top Cover. (See
Top Cover (P.2 6))
(2) Remove the screw C.
(3) Remove the PANEL Board, while unlock the hooks.
(4) Disconnect the FFC cable.
Top Cover
PANEL SWITCH Board
Hook
LCD PANEL Board
C
FFC Cable
Top Cover
7 SEGMENT LED PANEL Board
C
Hook
FFC Cable
