Panasonic KV-S1057C - Conveyor Motor; STARTING SENSOR Board; Wiring of Lower Chassis

37

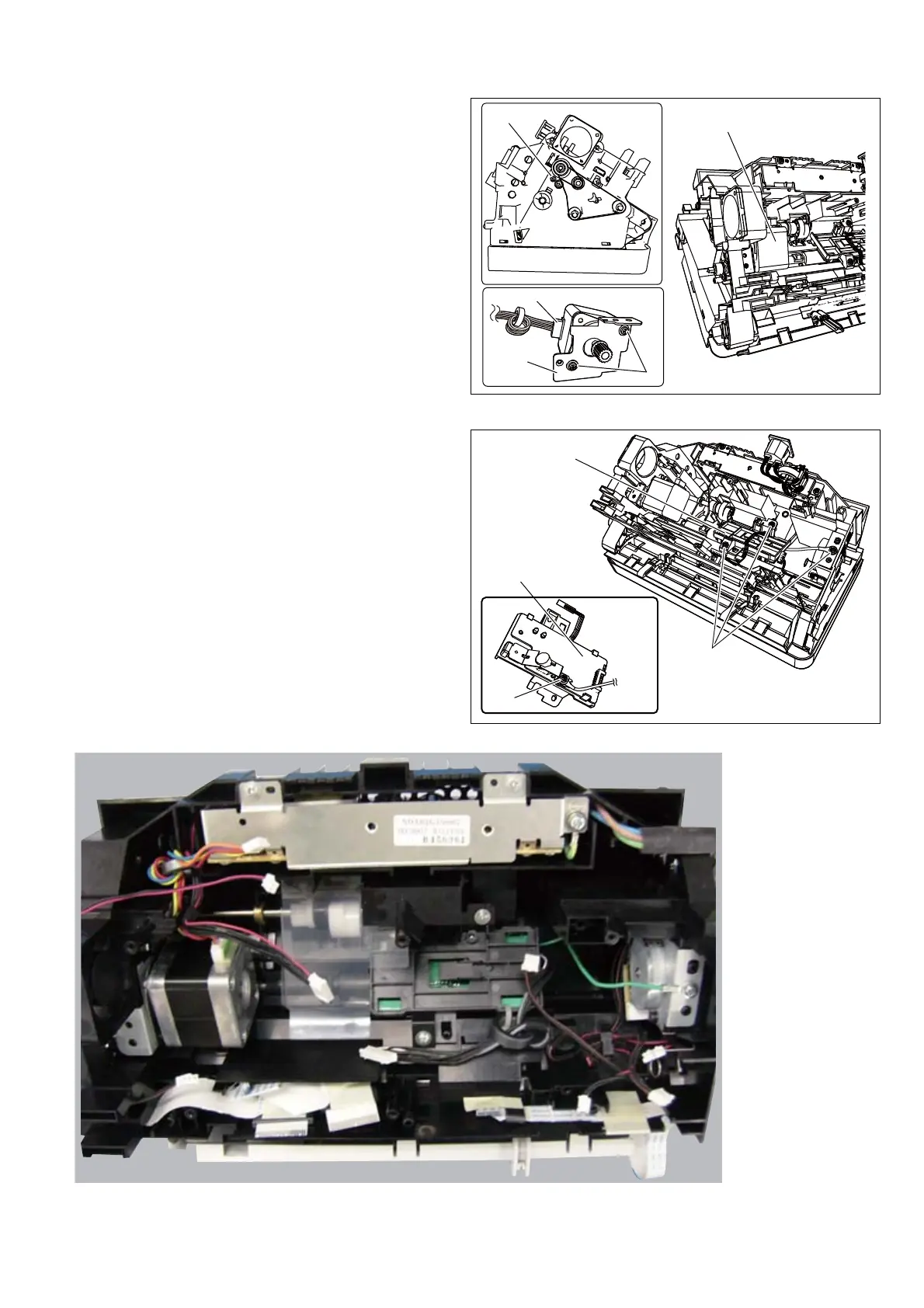

7.5.6. Conveyor Motor
7.5.7. STARTING SENSOR Board
7.5.8. Wiring of Lower Chassis
(1) Remove the CONTROL Board. (See CONTROL Board (P. 3 6 ))
(2) Remove the Side Plate Assembly. (See Side Plate Assembly
(
P. 34 ))
(3) Remove the screw A.
(4) Remove the Conveyor Motor with the plate.
(5) Remove the 2 screws G and remove the Conveyor Motor
from the plate.
(1) Remove the CONTROL Board. (See
CONTROL Board (P. 3 6 ))
(2) Remove the 3 screws C.
(3) Remove the STARTING SENSOR Board Assembly.
(4) Remove the screw C.
(5) Remove the STARTING SENSOR Board.
Conveyor Motor
A
G
Connector
Plate
STARTING SENSOR
Board Assembly
C
C
STARTING SENSOR
Board
