Panasonic KV-S1057C - DOOR DETECTION Board; Reference Plate (B)

33

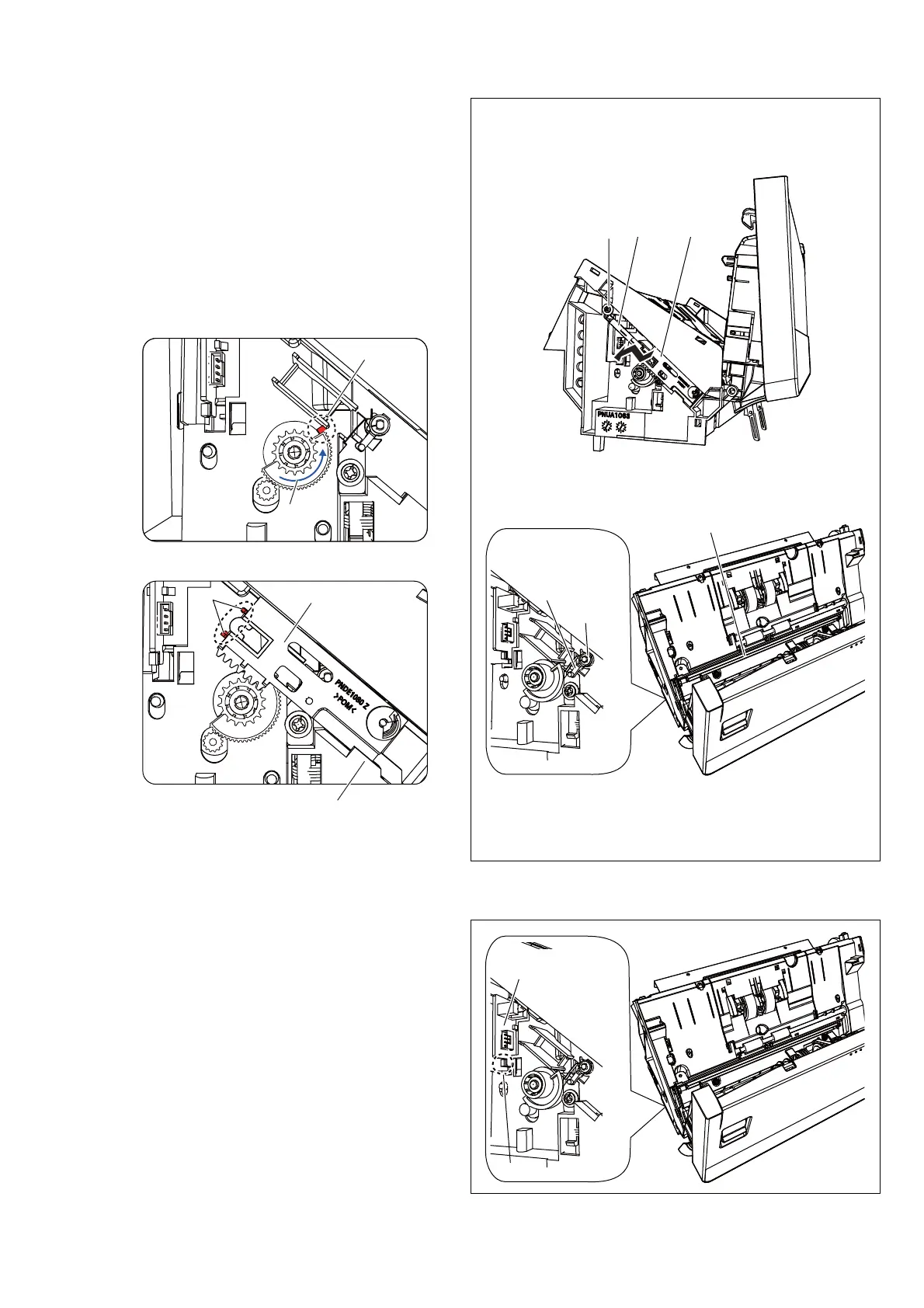

7.4.3. Reference Plate (B)
7.4.4. DOOR DETECTION Board
(1) Remove the CIS (F). (See CIS (F) (P. 32))
(2) Remove the Screw E.
(3) Remove the spring.
(4) Remove the Slider in the direction of the arrows.
Reassembling Note:
(1) Slider Gear Positioning.
Move the Slider Gear to the position where the gear
touches the rib.
(2) Slider Positioning.
Insert the Slider into the Slider groove.
With the position of the gear maintained, install the
Slider so that the Slider touches 2 ribs.
(5) Remove the Polyslider and the Reshuffling Lever.
(6) Remove the Reference Plate (B).
Rib
Slider Gear Positioning
Slider Gear Positioning
Slider Gear
Rib
Slider Positioning
Slider Positioning
Slider
Slider groove
E Spring Slider
Reference Plate (B)
Reshuffling Lever
Polyslider
(1) Remove the Back Cover. (See Back Cover (P. 2 6 ))
(2) Remove the DOOR DETECTION Board, while unlocking the
hook.
(3) Disconnect the connector.
DOOR
DETECTION Board
Hook
