Panasonic KV-S1057C - Free Roller; Reference Plate (F)

30

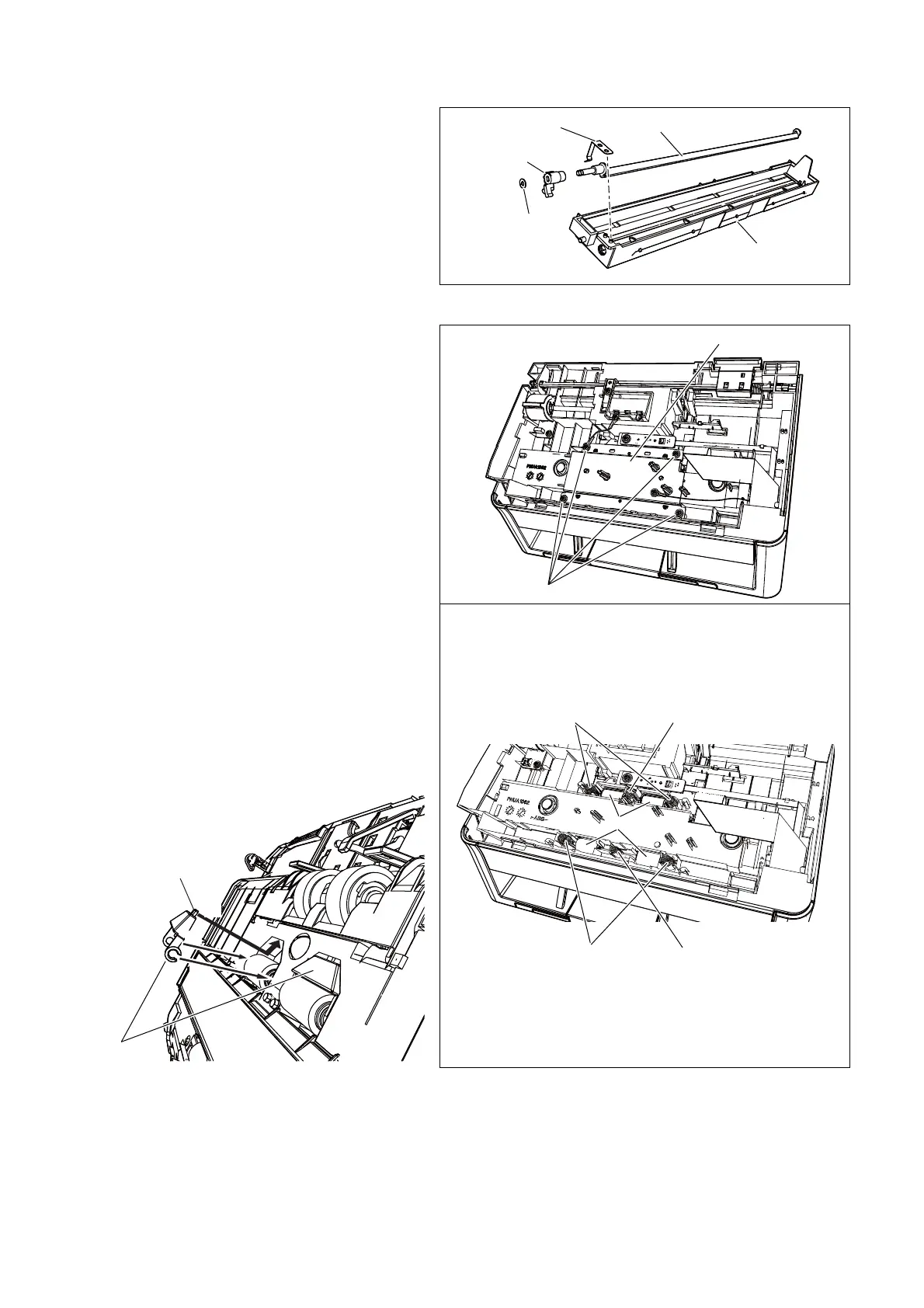

7.3.6. Reference Plate (F)
7.3.7. Free Roller
(1) Remove CIS (B). (See CIS (B) (P. 29 ))
(2) Remove Lock Spring 1.
(3) Remove the polyslider and Reshuffling Lever.
(4) Remove Reference Plate from the Scanning Glass (B).
(1) Remove 4 screws B.
(2) Remove the Reinforcement Plate.
(3) Remove 6 springs.
(4) Remove 4 Free Rollers with the shafts and the Free Roller
Guide.
Reassembling Note:
Install 2 pcs of the Free Roller Guide after installing the Free
Roller as follows.
(1) Insert the tab of the Free Roller Guide under the Upper
Frame (arrow 1).
(2) Lock the hooks of the guide to the shaft of the roller
(arrow 2).
Reference Plate (F)
Lock Spring 1
Scanning Glass (B)
Polyslider
Reshuffling Lever
B
Reinforcement Plate
Free Roller Guide
1
2
2
Tab
Free Roller Spring 2
Free Roller Spring 2
Free Roller Spring
Free Roller Spring
Free Roller
