Panasonic KV-S1057C - Lower Chassis; Cis (F); Paper Feed Roller

32
7.4. Lower Chassis 1

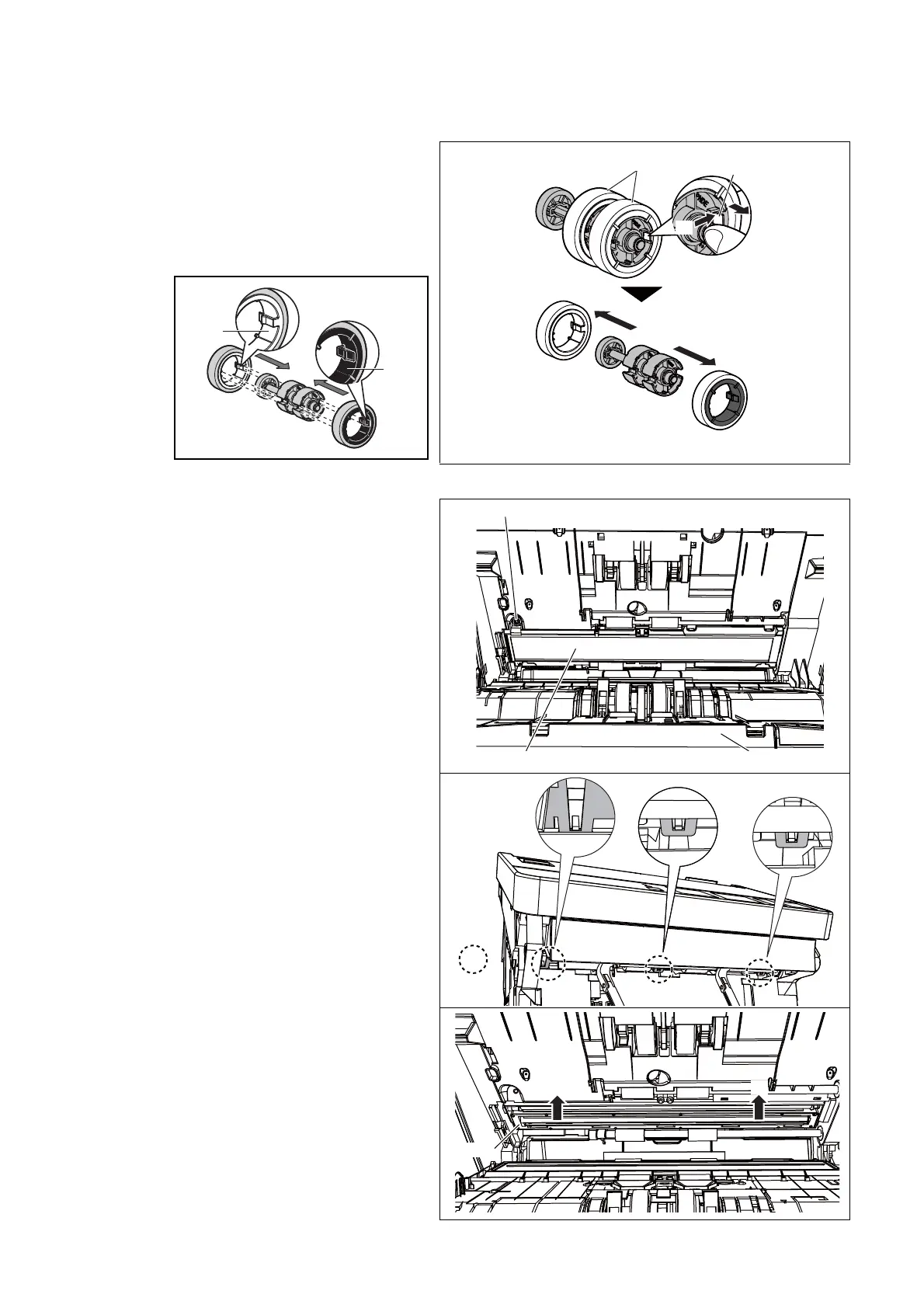

7.4.1. Paper Feed Roller
7.4.2. CIS (F)
(1) Remove the Paper Feed Roller Assembly. (See Appendix
(Operating Manual P.63))
(2) Push the tab (arrow 1) to remove the Feed Roller.
(3) Remove the rollers (arrow 2) from the shaft.
Reassembling Note:
Make sure the left (white) and right (black) paper feed rollers are
installed correctly.
(1) Remove the Back Cover. (See Back Cover (P.26))
(2) Open the ADF door.
(3) Remove screw C.
(4) Unlock the 3 hooks.
(5) Remove the Scanning Glass (F).
(6) Remove CIS (F) (arrow 1 and then 2) and disconnect the
FFC cable.
Feed Roller
2
1
2
2
Tab
C
Scanning Glass (F)
ADF Door
Hook
CIS (F)
21
White
Black
