6.3 Installation of the Trunk Cards — KX-TDA30
Installation Manual 287

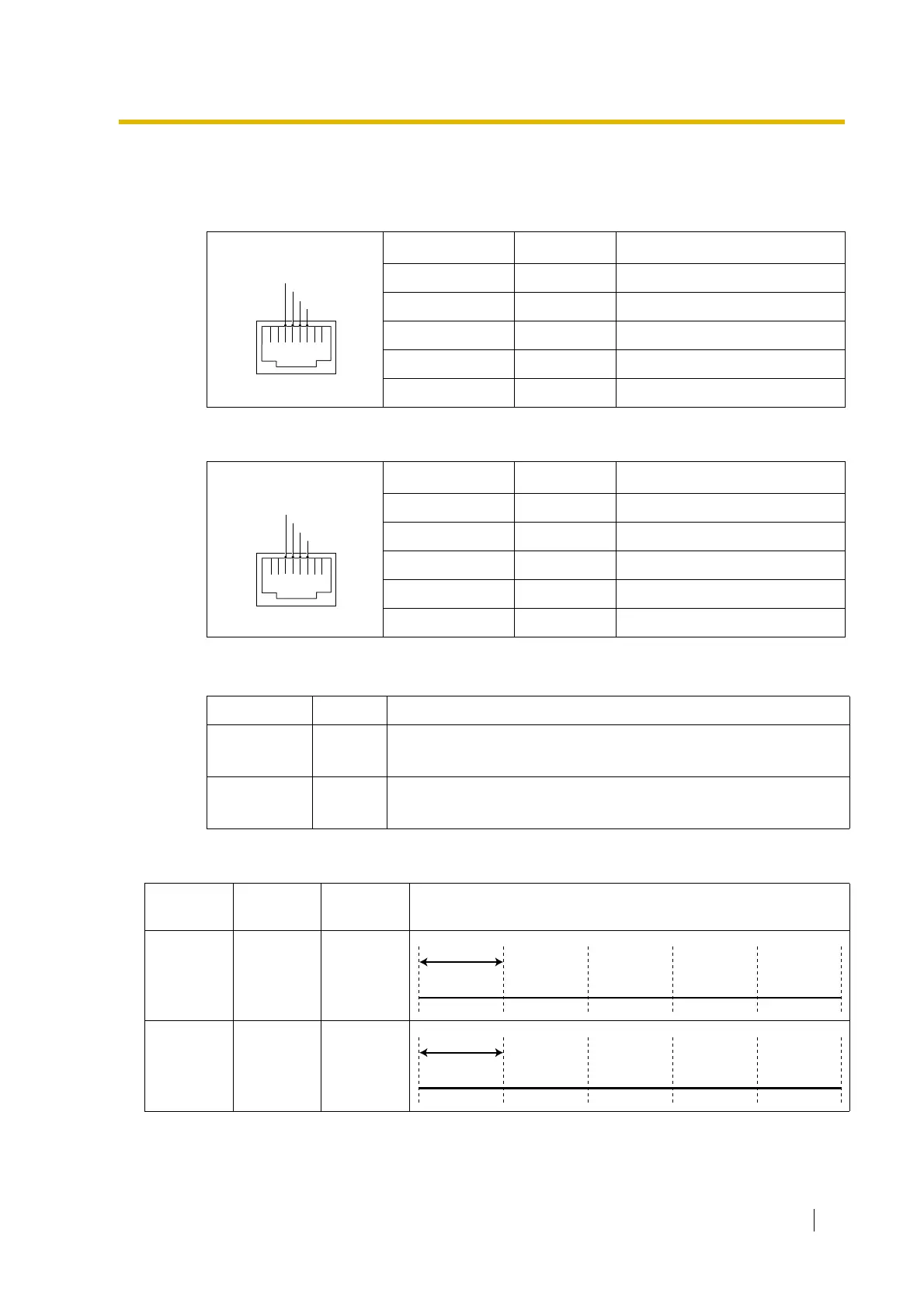

Pin Assignments
RJ45 Connector for Trunk Use
RJ45 Connector for Extension Use
LED Indications
LINE LED Pattern
Signal Name Level [V] Function
TX1 (+) Transmit data 1
RX2 (+) Receive data 2
RX1 (-) Receive data 1
TX2 (-) Transmit data 2
––Reserved
Signal Name Level [V] Function
RX2 (+) Receive data 2
TX1 (+) Transmit data 1
TX2 (-) Transmit data 2
RX1 (-) Receive data 1
––Reserved
Indication Colour Description
LINE 1 Green LINE 1 status indication:
Refer to "LINE LED Pattern" below for details.
LINE 2 Green LINE 2 status indication:
Refer to "LINE LED Pattern" below for details.
L1 L2 Master
Clock
LED Pattern
OFF OFF OFF
ON OFF OFF
1 8
TX1(+)
RX2(+)
RX1(-)
TX2(-)
RX2(+)
TX1(+)
TX2(-)
RX1(-)
1 8
1 s
1 s
