Panasonic KX-TDA30

2.4 Installation of the Trunk Cards — KX-TDA100/KX-TDA200
90 Installation Manual

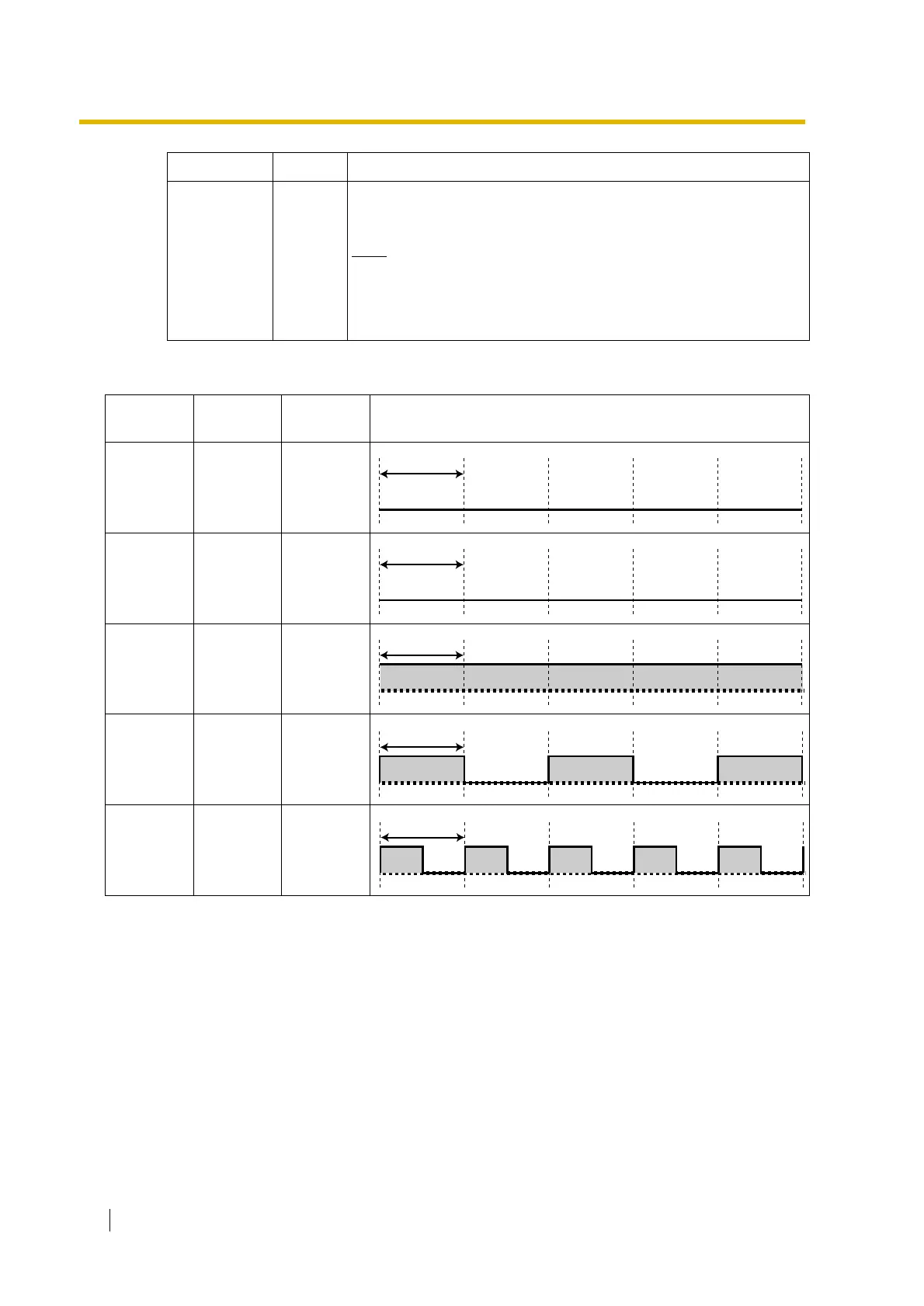

LINE LED Pattern
L1: ON (Synchronous)
L2: ON (Link established)/OFF (Link not established)
Master Clock: ON (Master)/OFF (Slave)
LINE 8
LINE 7
LINE 6
LINE 5
LINE 4
LINE 3
LINE 2
LINE 1
Green Line status indication (LINE 1 to LINE 8):
Refer to "LINE LED Pattern" below for details.
Note
LINE 5 to LINE 8 are for BRI8 card only.
L1 L2 Master
Clock
LED Pattern
OFF OFF OFF
ON OFF OFF
ON ON OFF
ON OFF ON
ON ON ON
Indication Colour Description
1 s
1 s
1 s
1 s
1 s
