1. Introduction
• Use [Fn5] to [Fn9] (Touch Icons) (298)
24
Diopter adjustment dial (57)
25
Eye cup (466)
26
Viewfinder (58, 442)
27
Eye sensor (58)
28
Cursor buttons (56)
[
] (ISO sensitivity) ( )
(214)
[
] (White balance) ( ) (217)
[
] (Drive mode) ( ) (159)
[
] (AF Mode) ( ) (128)
29
[MENU/SET] button (56, 67)
30
[ ] (Delete) button (281)/
[Q.MENU] button (63)/
[
] (Cancel) button (68)/
Fn button (Fn2) (294)
31
[ ] (Playback) button (272)
32
Control dial (55)
33
[DISP.] button (60)
34
[HDMI] socket (426)
35
[USB/CHARGE] socket (33, 426)
36
Card/Battery door (31, 39)
37
Release lever (31, 39)
38
DC Coupler cover (441)
• When using an AC adaptor,
ensure that the Panasonic DC
Coupler (DMW-DCC11: optional)
and AC Adaptor (DMW-AC10:
optional) are used.
39
Tripod mount (72, 471)
• If you attempt to attach a tripod
with a screw length of 5.5 mm
(0.22 inch) or more, you may not
be able to securely fix it in place
or it may damage the camera.
40
Monitor (29, 442)/
Touch screen (56)

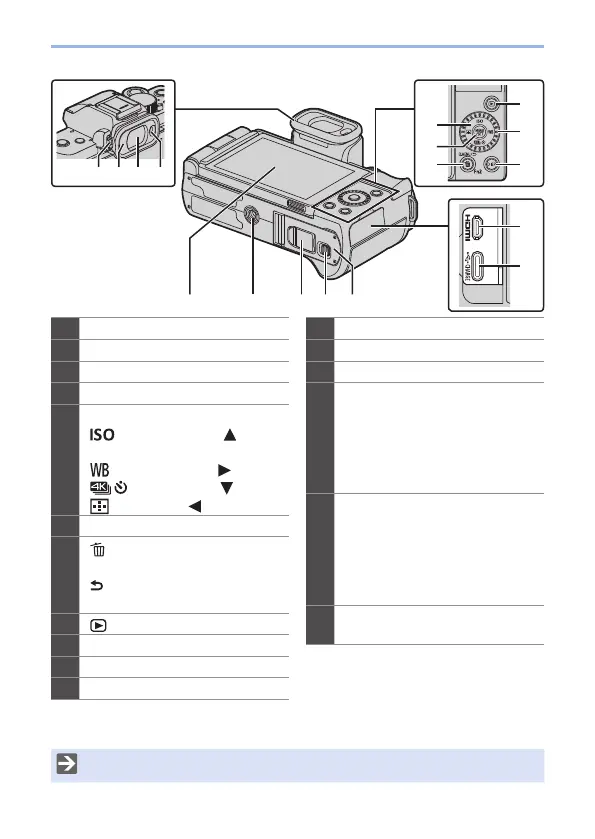

24 25 26 27
