"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

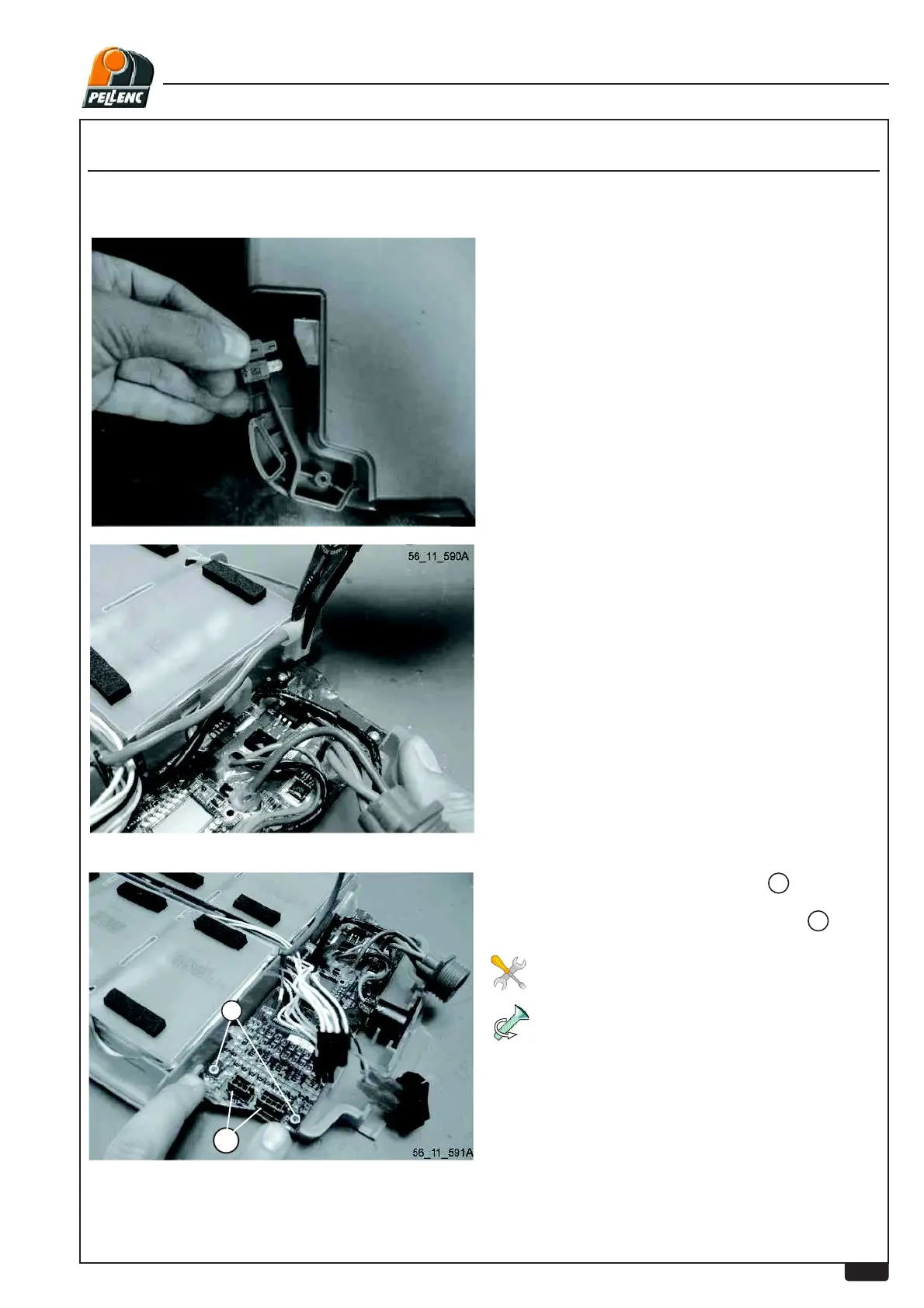

- With access to the board, remove the 2 power
supply connectors
- Remove both connectors J12 and J13
1
- Remove the 4 power screws from the board
2
No. 1 Pozidriv screwdriver
- Remove the upper part of the casing.
Torque to 1 Nm
LEVEL 4 - EXPERT LEVEL
- Remove the part that hides the fuse and pull
it out.
DEINSTALLING THE BOARD OF THE POLY5 BATTERY
