System Description

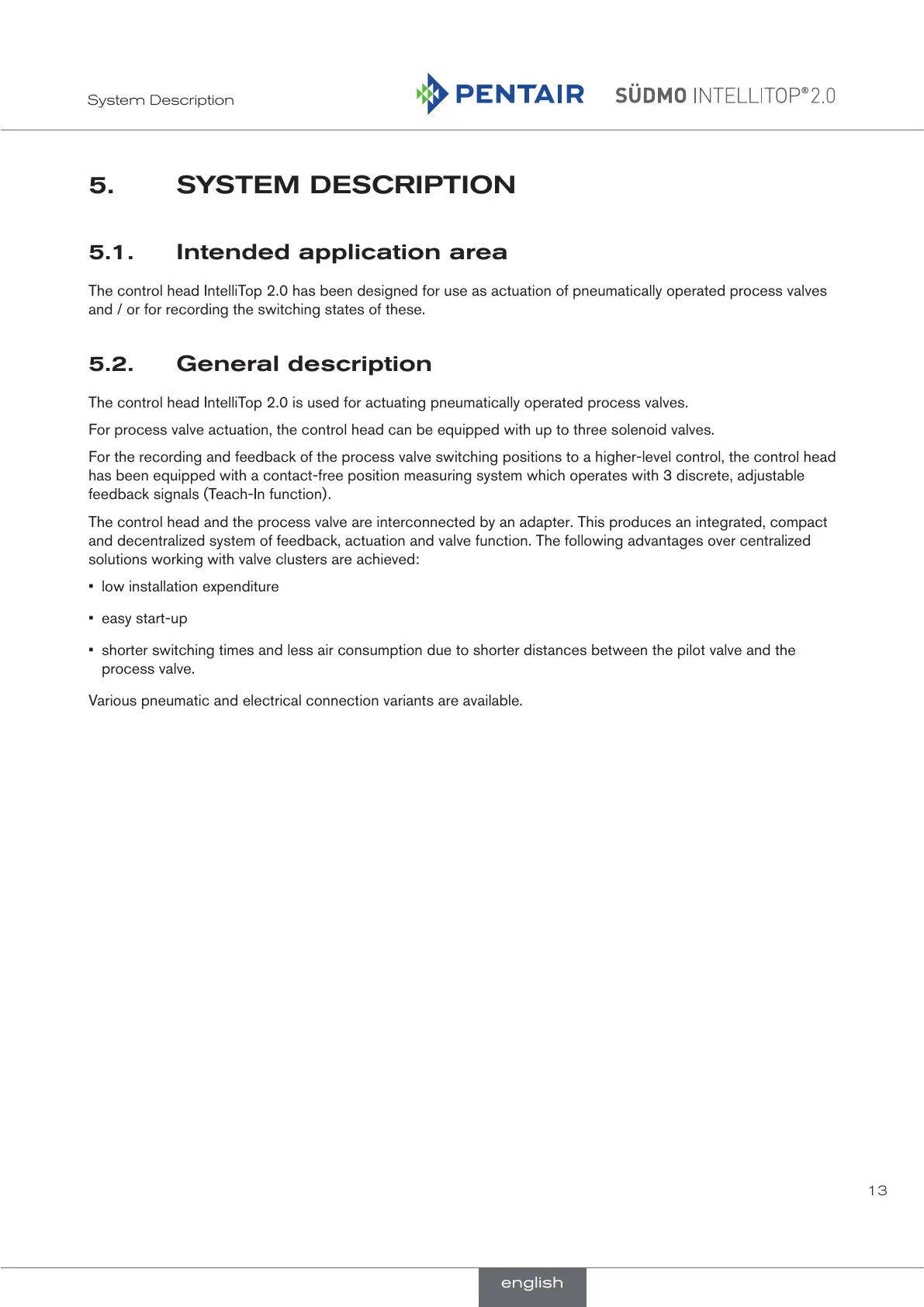

5. SYSTEM DESCRIPTION
5.1. Intended application area
The control head IntelliTop 2.0 has been designed for use as actuation of pneumatically operated process valves
and / or for recording the switching states of these.
5.2. General description
The control head IntelliTop 2.0 is used for actuating pneumatically operated process valves.
For process valve actuation, the control head can be equipped with up to three solenoid valves.
For the recording and feedback of the process valve switching positions to a higher-level control, the control head
has been equipped with a contact-free position measuring system which operates with 3 discrete, adjustable
feedback signals (Teach-In function).
The control head and the process valve are interconnected by an adapter. This produces an integrated, compact
and decentralized system of feedback, actuation and valve function. The following advantages over centralized
solutions working with valve clusters are achieved:
• low installation expenditure
• easy start-up
• shorter switching times and less air consumption due to shorter distances between the pilot valve and the
process valve.
Various pneumatic and electrical connection variants are available.
