6.7. Position measuring system data
Stroke range (measuring range): 0 ... 85 mm
Total error: ±0.5 mm - when using a specification-compliant attachment kit
(error refers to the reproducibility of a taught position)
The diagram in "Fig. 8" shows the dimensional relationships between the control head and the piston with target.
Target
(in the upper end position)
Piston rod
(in the upper end position)
Note upper end position
of the target (H 157.5 mm) to
prevent putting control head at risk!
Target
(in the lower end position)
Piston rod
(in the lower end position)

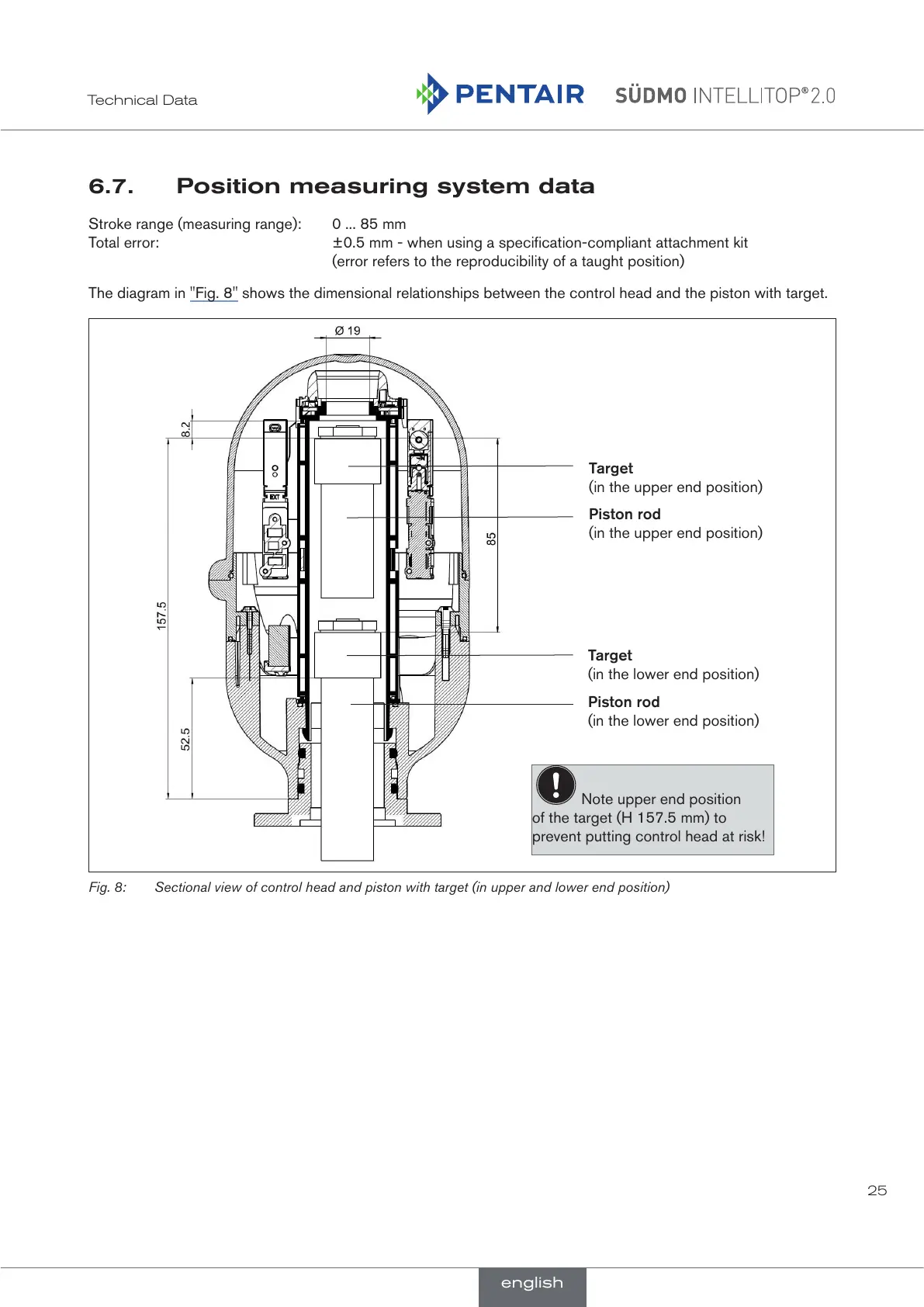

Fig. 8: Sectional view of control head and piston with target (in upper and lower end position)
