35
Pneumatic Installation

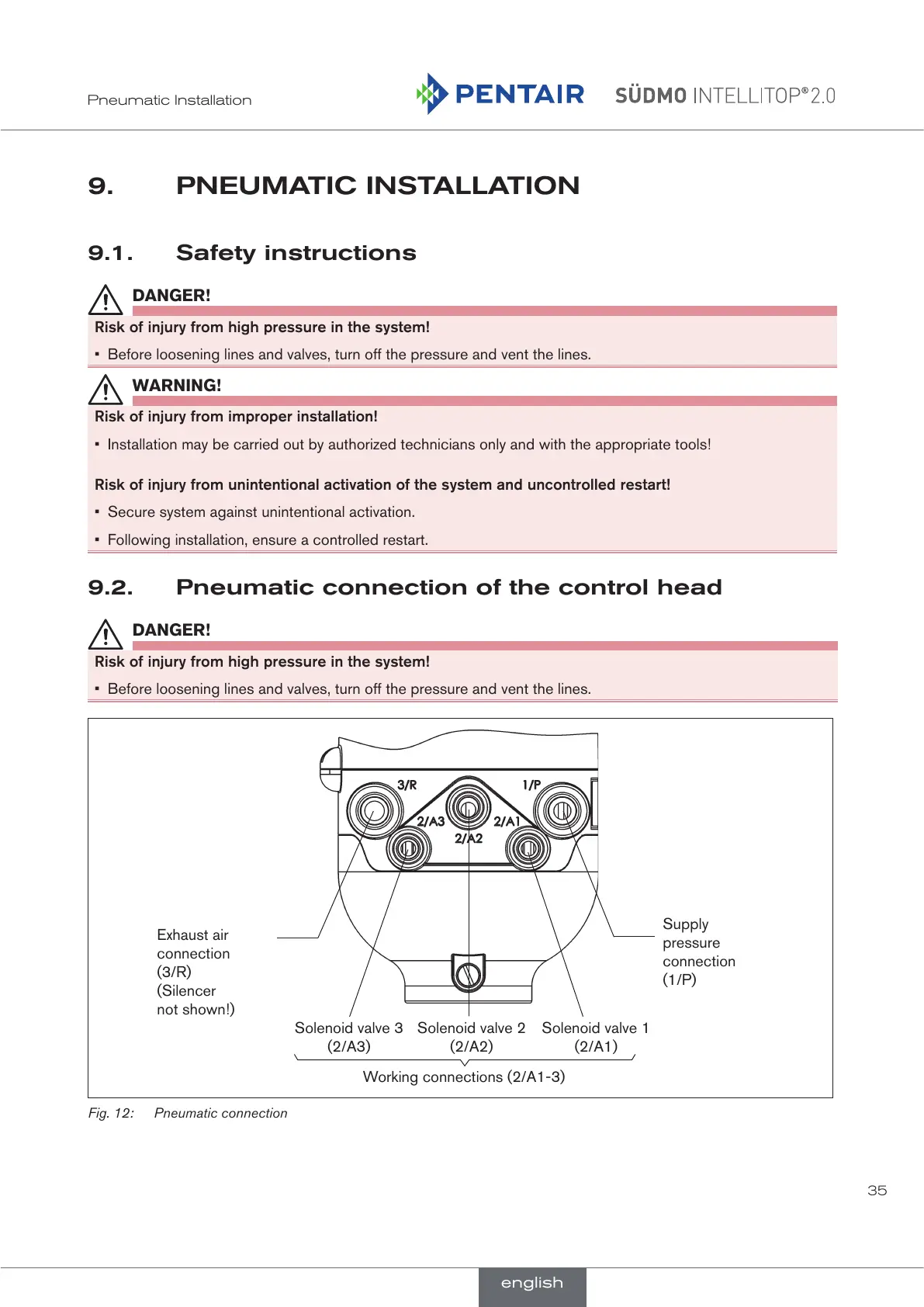

9. PNEUMATIC INSTALLATION
9.1. Safety instructions
DANGER!
Risk of injury from high pressure in the system!
• Before loosening lines and valves, turn off the pressure and vent the lines.
WARNING!
Risk of injury from improper installation!
• Installation may be carried out by authorized technicians only and with the appropriate tools!
Risk of injury from unintentional activation of the system and uncontrolled restart!
• Secure system against unintentional activation.
• Following installation, ensure a controlled restart.
9.2. Pneumatic connection of the control head
DANGER!
Risk of injury from high pressure in the system!
• Before loosening lines and valves, turn off the pressure and vent the lines.
Exhaust air
connection
(3/R)
(Silencer
not shown!)
Supply
pressure
connection
(1/P)
Working connections (2/A1-3)
Solenoid valve 3
(2/A3)
Solenoid valve 2
(2/A2)
Solenoid valve 1
(2/A1)
Fig. 12: Pneumatic connection
english
