Technical Data

6.5. Mechanical data

Securing the hood

by lead seal (max Ø2) or

optionally by plastic self-

cutting screws *)

M16x1.5 (2x)

G1/4 (2x)

G1/8 (3x)

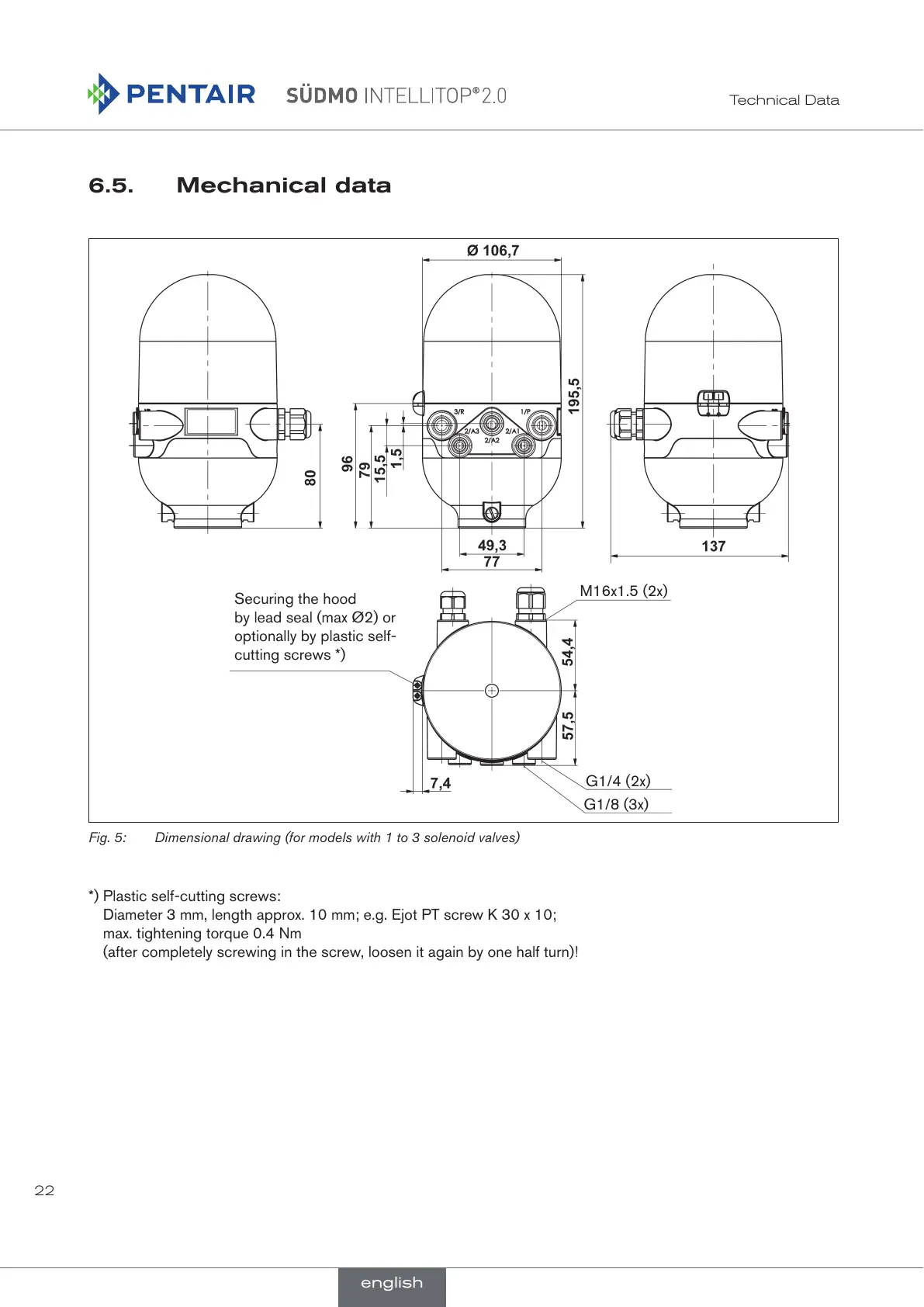

Fig. 5: Dimensional drawing (for models with 1 to 3 solenoid valves)

*) Plastic self-cutting screws:

Diameter 3 mm, length approx. 10 mm; e.g. Ejot PT screw K 30 x 10;

max. tightening torque 0.4 Nm

(after completely screwing in the screw, loosen it again by one half turn)!
