Technical Data

Securing the hood

by lead seal (max Ø2)

or optionally by plastic

self-cutting screws *)

Cover pressure-relief valve

M16x1.5 (2x)

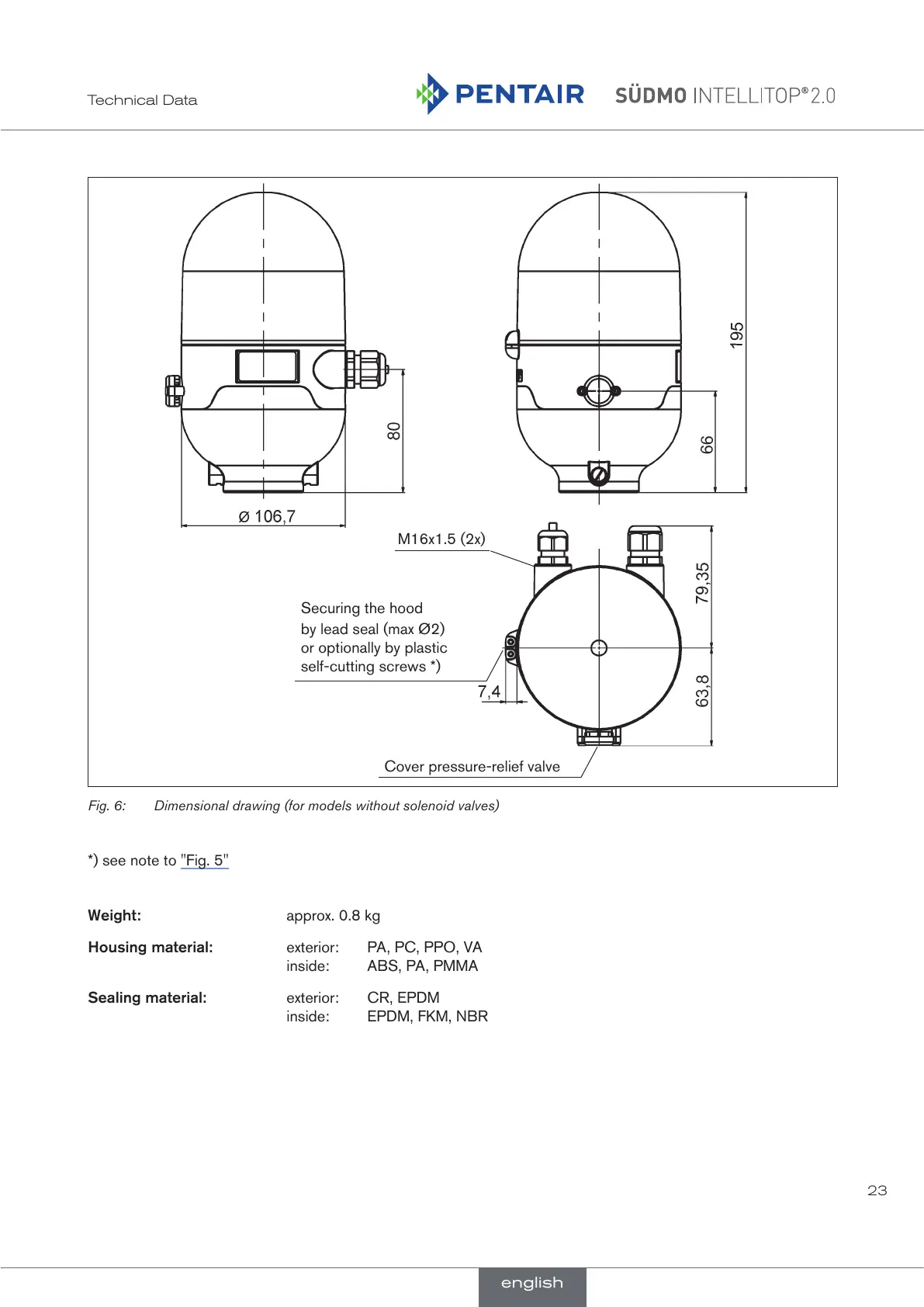

Fig. 6: Dimensional drawing (for models without solenoid valves)

*) see note to "Fig. 5"

Weight: approx. 0.8 kg

Housing material: exterior: PA, PC, PPO, VA

inside: ABS, PA, PMMA

Sealing material: exterior: CR, EPDM

inside: EPDM, FKM, NBR

english

Default Chapter3
- Table of Contents3
1 Operating Instructions8
2 Authorized Use9
- Export Restrictions9
3 Basic Safety Instructions10
4 General Information12
- Contact Address12
- Warranty12
- Information on the Internet12
5 System Description13
- Intended Application Area13
- General Description13
- Functions / Options / Designs14
6 Technical Data19
- Operating Conditions19
- Conformity with the Following Standards19
- Rating Plate Specifications20
- Information on the Additional Plates21
- Mechanical Data22
- Pneumatic Data24
- Position Measuring System Data25
- Factory Settings in the Firmware26
- Resetting the Device (Device Reset)28
7 Installation30
- Safety Instructions30
- Assembly of the Control Head30
8 Opening and Closing the Housing33
- Safety Instructions33
  - Opening the Housing33
  - Closing the Housing33
9 Pneumatic Installation35
- Safety Instructions35
- Pneumatic Connection of the Control Head35
  - Pneumatic Connection (Standard)36
  - Retrofitting in Case of Intensive External Cleaning36
- Flow Restriction Function of the Solenoid Valves37
600 DC - Design39
- Electrical Connection Options39
- Electrical Data39
- Design Aid41
- Safety Instructions42
- Electrical Installation / Start-Up42
  - Cable Gland with Screw Terminals42
  - Multi-Pole Connection45
11 As Interface - Design46
- Definition46
- Electrical Connection Options for as Interface47
- Number of Connectable Control Heads and Maximum Length of the Bus Line47
- Electrical Data48
- Design Aid50
- Safety Instructions51
- Electrical Installation, as Interface52
- Programming Data54
12 Devicenet Design55
- Definition55
- Electrical Connection Option55
- Devicenet Specification55
  - Total Line Length and Maximum Line Length According to Devicenet Specification56
  - Drop Line Length56
- Electrical Data57
- Safety Position if the Bus Fails57
- Design Aid58
- Safety Instructions59
- Electrical Installation - Devicenet59
- Network Topology of a Devicenet System61
- Configuring the Devicenet Address / Baud Rate61
  - Settings of the Devicenet Address62
  - Setting the Baud Rate63
- Configuration of the Process Data63
  - Static Input Assemblies63
  - Static Output Assembly64
- Configuration of the Device64
  - Configuration of the Safety Position of Solenoid Valves if Bus Error64
  - Configuration Example65
- Display of the Status Leds in the Event of a Bus Error66
  - State of Device Status LED "Modules66
  - State of Bus Status LED "Network67
13 Ac Design68
- Electrical Connection Options68
- Electrical Data68
- Design Aid70
- Safety Instructions71
- Electrical Installation / Start-Up71
14 Connection of an External Initiator74
15 Design for Double-Acting Actuators76
- Anomalies76
- Fluid Diagram76
- Electrical Connection (24 V / 120 V Design)76
- Programming Data (AS-I Design)76
16 Position Measuring System77
- Setting the Position Measuring System (Teach-In)77
- Teach-In Functions79
- Changing the Feedback Field - Feedback Field Mode (FFM)83
17 Led - Color Assignments84
- Setting the Color Combinations85
  - Setting of Possible Color Combinations (Classic)85
  - Color Combinations with Active Function „Cycle Stroke Color S3/S4 Different85
- Blinking Pattern & Fault Signaling86
- Signal Priorities87
18 Service Mode / Manual Control90
- Magnetic Manual Control90
- Mechanical Manual Control91
19 Maintenance, Troubleshooting92
- Safety Instructions92
- Safety Positions93
- Maintenance / Service94
- Cleaning94
- Malfunctions94
20 Replacement of Components and Modules96
- Safety Instructions96
- Changing the Electronics Module97
- Changing the Valves98
- Changing the Position Measuring System99
21 Spare Parts102
22 Shutdown103
- Safety Instructions103
- Dismantling the Control Head Intellitop 2.0103
23 Packaging and Transport104
24 Storage104
25 Disposal104
